Hose Tail One Piece ORFS Female Straight - Gates

Name: Gates 1 Piece ORFS Female Straight Hose Tail | Hydraulic.Online
Brand: Gates
SKU: HTO-ORF-GA
Price: 11.63 AUD
Availability: InStock

Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Medium Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°/ORFS One Piece Hose Tails - Gates

SKU HTO-ORF-0409-GA

AU$11.63

Bulk pricing available for quantities of 5 units or more

Size

Please choose

In stock

Quantity:

Buy more, save more

Quantity	Price per item	Discount
5 items	AU$11.05	5% off
10 items	AU$10.47	10% off
25 items	AU$10.18	12% off
50 items	AU$9.89	15% off

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Hose Tail One Piece ORFS Female Straight - Gates

Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Medium Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°/ORFS One Piece Hose Tails - Gates

Product Details

Brand: Gates

Weight: 0.14 kg

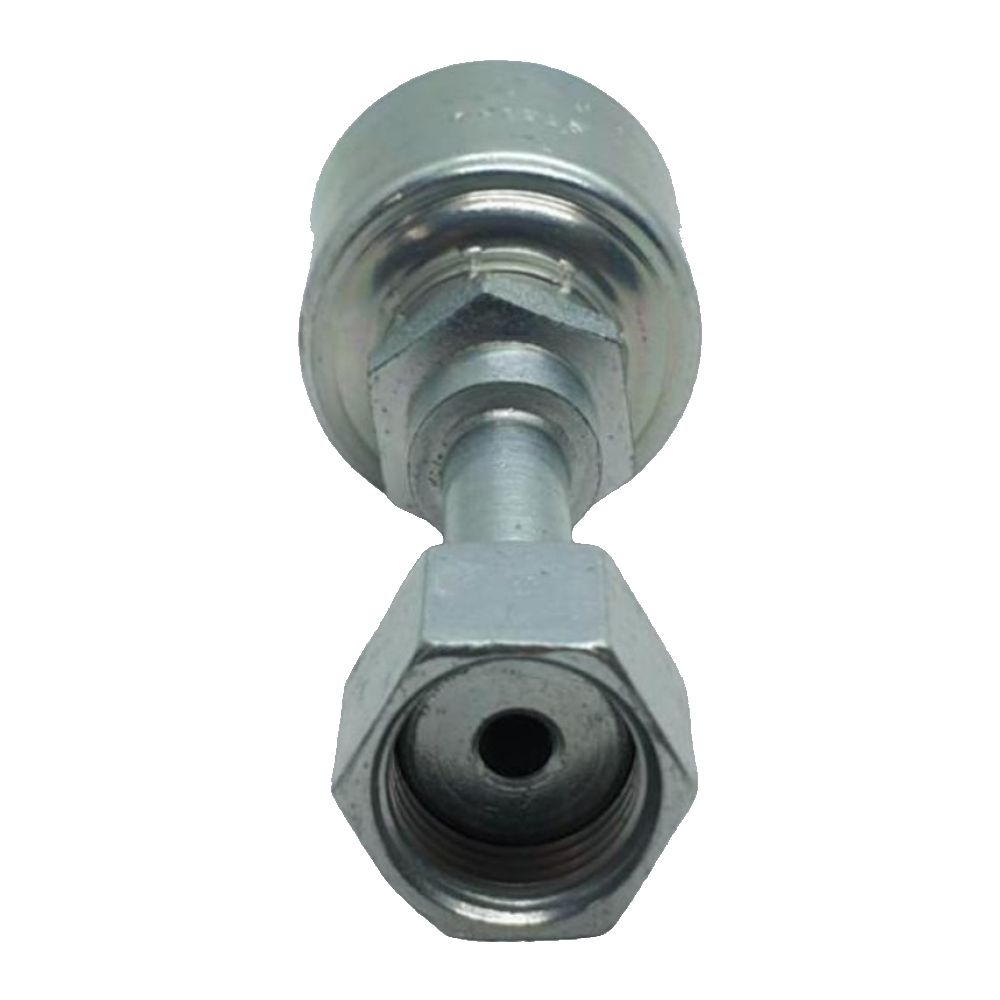

Gates One Piece Orfs Flat-Face O-Ring Female Swivel Hydraulic Hose Tail

Genuine Gates one piece ORFS flat-face O-ring female swivel hydraulic hose fitting, engineered for SAE 100R1 (1 wire) and 100R2 (2 wire) braided hydraulic hose. This MegaCrimp® one piece coupling crimps directly onto the hose with no separate ferrule required – a flat-face O-ring seal on a ORFS SAE J1453 connection for a certified, leak-free seal every time.

Built for excavators, tractors, skid steers, loaders, agricultural and construction machinery and everyday hydraulic repairs. Precision CNC-formed, zinc-plated carbon steel for corrosion resistance and crimped to genuine Gates specifications.

Why buy from Hydraulic.Online?

100% genuine Gates MegaCrimp one piece coupling – not an import copy
Suits 1 & 2 wire braided hydraulic hose (SAE 100R1/R2, EN853)
No ferrule required – faster, stronger one piece crimp
Full size range – select your hose & thread size above
Bulk discounts applied automatically – buy more, save more
Fast dispatch Australia-wide from our Australian warehouse

Need help matching the right Gates ORFS flat-face O-ring female swivel fitting, ferrule or hose? Contact the Hydraulic.Online team before you buy. Crimp dimensions available as a downloadable Gates crimp chart on request.

Gates Part Numbers & Specifications

Size	Our SKU	Gates Part No	Gates Code	Barcode	L (mm)	Cut-off (mm)	Hex (mm)	Weight (kg)
(04) 1/4" x (09) 9/16"	HTO-ORF-0409-GA	4G-4FFORX	G25230-0404	72053407662	52.7	26.7	17	0.14
(04) 1/4" x (11) 11/16"	HTO-ORF-0411-GA	4G-6FFORX	G25230-0406	72053323627	51.1	25.1	22	0.17
(06) 3/8" x (09) 9/16"	HTO-ORF-0609-GA	6G-4FFORX	G25230-0604	72053776225	78.3	50.3	17	0.20
(06) 3/8" x (11) 11/16"	HTO-ORF-0611-GA	6G-6FFORX	G25230-0606	72053323573	57.7	28.9	22	0.24
(06) 3/8" x (13) 13/16"	HTO-ORF-0613-GA	6G-8FFORX	G25230-0608	72053323634	57.4	28.6	24	0.26
(08) 1/2" x (11) 11/16"	HTO-ORF-0811-GA	8G-6FFORX	G25230-0806	72053408614	95.9	58.4	22	0.36
(08) 1/2" x (13) 13/16"	HTO-ORF-0813-GA	8G-8FFORX	G25230-0808	72053323641	66.5	31.3	24	0.32
(08) 1/2" x (16) 1"	HTO-ORF-0816-GA	8G-10FFORX	G25230-0810	72053323580	70	34.8	30	0.41
(08) 1/2" x (19) 1-3/16"	HTO-ORF-0819-GA	8G-12FFORX	G25230-0812	72053288094	71.5	36.3	36	0.64
(10) 5/8" x (16) 1"	HTO-ORF-1016-GA	10G-10FFORX	G25230-1010	72053173376	76	38.5	30	0.49
(10) 5/8" x (19) 1-3/16"	HTO-ORF-1019-GA	10G-12FFORX	G25230-1012	72053173383	77	39.5	36	0.62
(12) 3/4" x (16) 1"	HTO-ORF-1216-GA	12G-10FFORX	G25230-1210	72053287929	95.1	44.1	30	0.72
(12) 3/4" x (19) 1-3/16"	HTO-ORF-1219-GA	12G-12FFORX	G25230-1212	72053323597	92.8	41.8	36	0.80
(12) 3/4" x (23) 1-7/16"	HTO-ORF-1223-GA	12G-16FFORX	G25230-1216	72053173390	88.3	37.3	41	0.90
(16) 1" x (23) 1-7/16"	HTO-ORF-1623-GA	16G-16FFORX	G25230-1616	—	—	—	—	—

Swipe sideways on mobile to view all columns.
