Hose Tail One Piece BSP Swivel Female 45° Swept - Gates
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Hydraulic Hose Fittings Straight, 90° & 45°/BSP One Piece Hose Tails - Gates
Product Details
Brand: Gates
Weight: 0.15 kg
Gates One Piece Bsp Swivel Female 45° swept Hydraulic Hose Tail
Genuine Gates one piece BSP swivel female 45° swept hydraulic hose fitting, engineered for SAE 100R1 (1 wire) and 100R2 (2 wire) braided hydraulic hose. This MegaCrimp® one piece coupling crimps directly onto the hose with no separate ferrule required – a 60° cone swivel seat on a BSP (British Standard Parallel Pipe) connection for a certified, leak-free seal every time.
Built for excavators, tractors, skid steers, loaders, agricultural and construction machinery and everyday hydraulic repairs. Precision CNC-formed, zinc-plated carbon steel for corrosion resistance and crimped to genuine Gates specifications.
Why buy from Hydraulic.Online?
- 100% genuine Gates MegaCrimp one piece coupling – not an import copy
- Suits 1 & 2 wire braided hydraulic hose (SAE 100R1/R2, EN853)
- No ferrule required – faster, stronger one piece crimp
- Full size range – select your hose & thread size above
- Bulk discounts applied automatically – buy more, save more
- Fast dispatch Australia-wide from our Australian warehouse
Need help matching the right Gates BSP swivel female fitting, ferrule or hose? Contact the Hydraulic.Online team before you buy. Crimp dimensions available as a downloadable Gates crimp chart on request.
Gates Part Numbers & Specifications

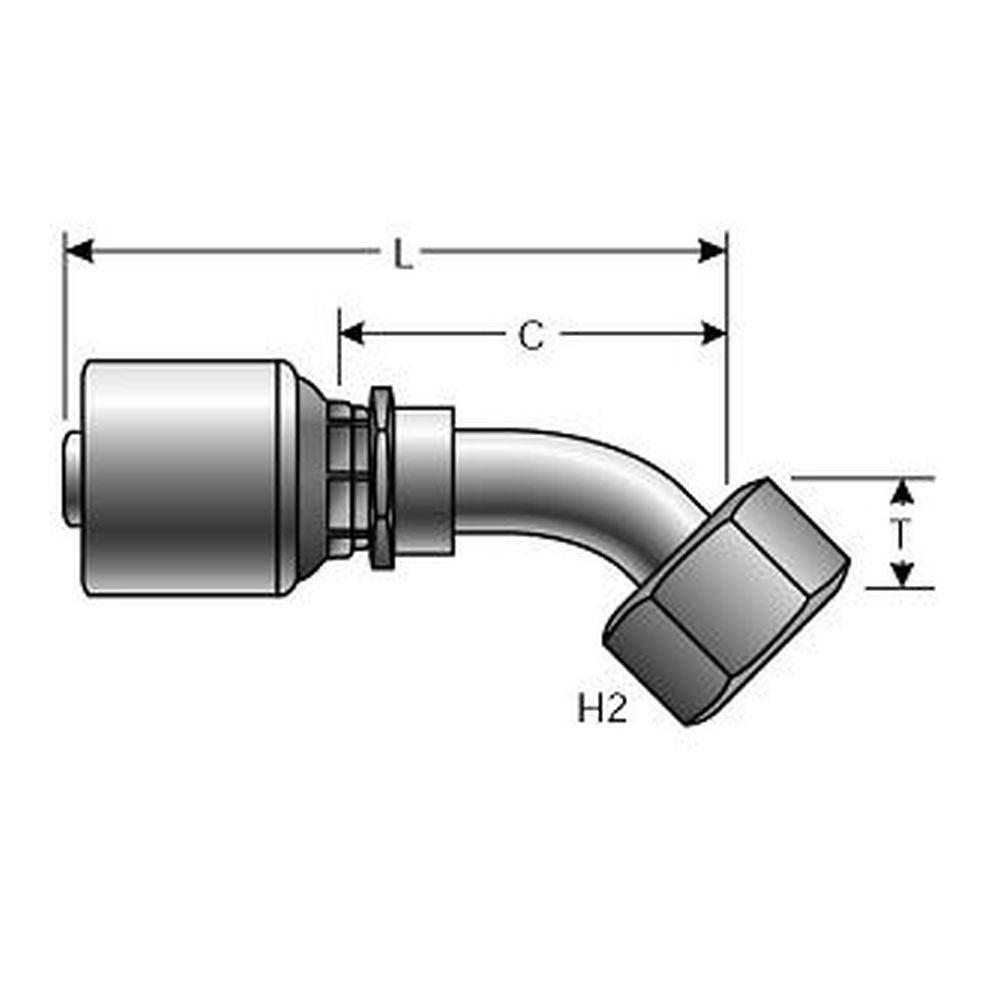

| Size | Our SKU | Gates Part No | Gates Code | Barcode | L (mm) | Cut-off (mm) | Hex (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| (04) 1/4" x (04) 1/4" | HTO-BSF-45S-0404-GA | 4G-4FBSPORX45 | G25831-0404 | 72053438192 | 57.1 | 31.1 | 19 | 0.15 |
| (04) 1/4" x (06) 3/8" | HTO-BSF-45S-0406-GA | — | — | — | — | — | — | — |
| (06) 3/8" x (06) 3/8" | HTO-BSF-45S-0606-GA | 6G-6FBSPORX45 | G25831-0606 | 72053438208 | 66.9 | 39 | 22 | 0.22 |
| (06) 3/8" x (08) 1/2" | HTO-BSF-45S-0608-GA | 6G-8FBSPORX45 | G25831-0608 | 770075355335 | 71 | 43 | 22 | 0.27 |
| (08) 1/2" x (08) 1/2" | HTO-BSF-45S-0808-GA | 8G-8FBSPORX45 | G25831-0808 | 72053438215 | 81.5 | 44 | 27 | 0.18 |
| (10) 5/8" x (10) 5/8" | HTO-BSF-45S-1010-GA | 10G-10FBSPORX45 | G25831-1010 | 72053449914 | 89.6 | 52.1 | 30 | 0.48 |
| (12) 3/4" x (12) 3/4" | HTO-BSF-45S-1212-GA | 12G-12FBSPORX45 | G25831-1212 | 72053438222 | 115.4 | 64.4 | 32 | 0.77 |
| (16) 1" x (16) 1" | HTO-BSF-45S-1616-GA | 16G-16FBSPORX45 | G25831-1616 | 72053401325 | 123.6 | 78.8 | 41 | 1.20 |
| (20) 1-1/4" x (20) 1-1/4" | HTO-BSF-45S-2020-GA | 20G-20FBSPORX45 | G25831-2020 | 72053844801 | 139.6 | 93.4 | 50 | 2.20 |
Swipe sideways on mobile to view all columns.
