Hose Tail One Piece BSP Swivel Female 90° Compact - Gates
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Medium Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°/BSP One Piece Hose Tails - Gates
SKU HTO-BSF-90C-0404-GA
AU$20.36
Bulk pricing available for quantities of 5 units or more
Size
Please choose
In stock
1
Buy more, save more
| Quantity | Price per item | Discount |
| 5 items | AU$19.34 | 5% off |
| 10 items | AU$18.32 | 10% off |
| 25 items | AU$17.81 | 13% off |
| 50 items | AU$17.31 | 15% off |
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Hose Tail One Piece BSP Swivel Female 90° Compact - Gates
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Medium Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°/BSP One Piece Hose Tails - Gates
Product Details
Brand: Gates
Weight: 0.21 kg

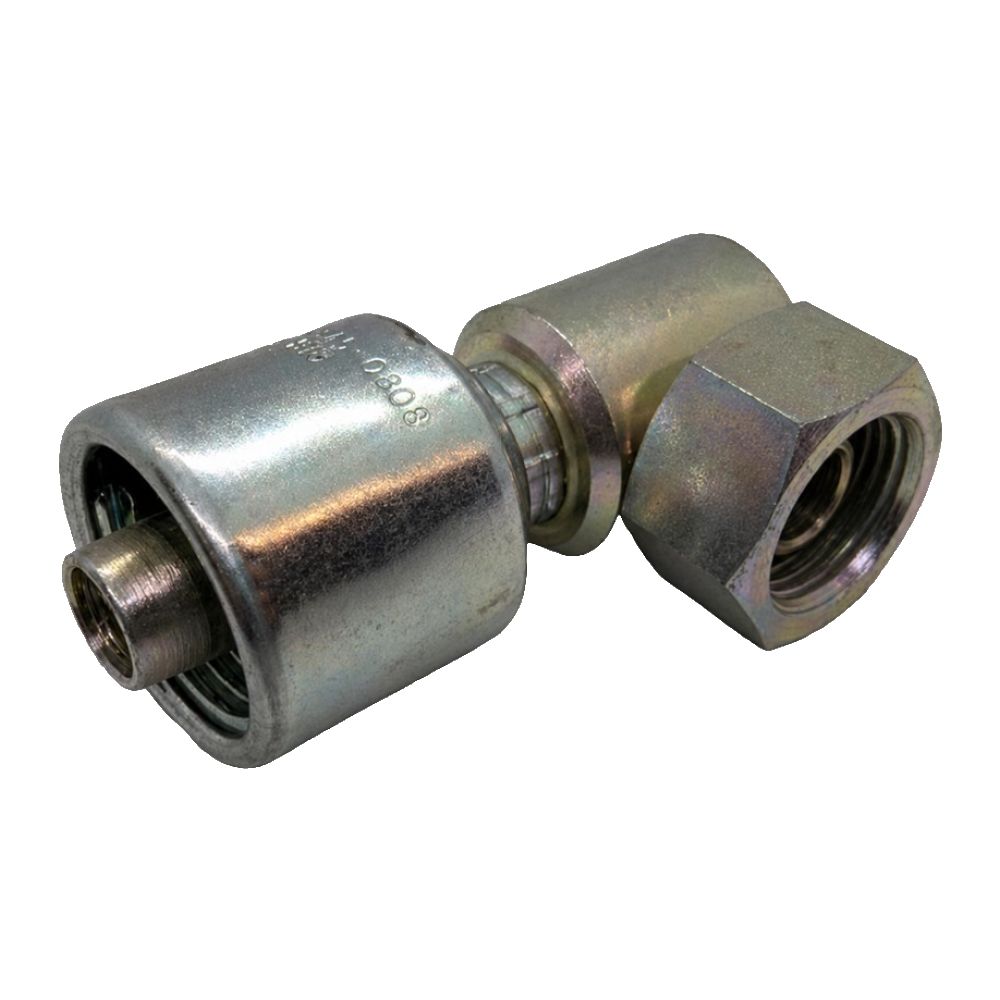

Gates One Piece Bsp Swivel Female 90° compact Hydraulic Hose Tail
Genuine Gates one piece BSP swivel female 90° compact hydraulic hose fitting, engineered for SAE 100R1 (1 wire) and 100R2 (2 wire) braided hydraulic hose. This MegaCrimp® one piece coupling crimps directly onto the hose with no separate ferrule required – a 60° cone swivel seat on a BSP (British Standard Parallel Pipe) connection for a certified, leak-free seal every time.
Built for excavators, tractors, skid steers, loaders, agricultural and construction machinery and everyday hydraulic repairs. Precision CNC-formed, zinc-plated carbon steel for corrosion resistance and crimped to genuine Gates specifications.
Why buy from Hydraulic.Online?
- 100% genuine Gates MegaCrimp one piece coupling – not an import copy
- Suits 1 & 2 wire braided hydraulic hose (SAE 100R1/R2, EN853)
- No ferrule required – faster, stronger one piece crimp
- Full size range – select your hose & thread size above
- Bulk discounts applied automatically – buy more, save more
- Fast dispatch Australia-wide from our Australian warehouse
Need help matching the right Gates BSP swivel female fitting, ferrule or hose? Contact the Hydraulic.Online team before you buy. Crimp dimensions available as a downloadable Gates crimp chart on request.
Gates Part Numbers & Specifications
| Size | Our SKU | Gates Part No | Gates Code | Barcode | L (mm) | Cut-off (mm) | Hex (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| (04) 1/4" x (04) 1/4" | HTO-BSF-90C-0404-GA | 4G-4FBSPORX90BL | G25845-0404 | 72053629996 | 44.2 | 18.2 | 19 | 0.21 |
| (06) 3/8" x (06) 3/8" | HTO-BSF-90C-0606-GA | 6G-6FBSPORX90BL | G25845-0606 | 72053631753 | 43.5 | 20 | 22 | 0.34 |
| (06) 3/8" x (08) 1/2" | HTO-BSF-90C-0608-GA | — | — | — | — | — | — | — |
| (08) 1/2" x (08) 1/2" | HTO-BSF-90C-0808-GA | 8G-8FBSPORX90BL | G25845-0808 | 72053676204 | 55.9 | 23.5 | 27 | 0.53 |
| (10) 5/8" x (10) 5/8" | HTO-BSF-90C-1010-GA | — | — | — | — | — | — | — |
| (12) 3/4" x (12) 3/4" | HTO-BSF-90C-1212-GA | — | — | — | — | — | — | — |
| (16) 1" x (16) 1" | HTO-BSF-90C-1616-GA | 16G-16FBSPORX90BL | G25845-1616 | 770075441717 | 80.5 | 34.6 | 41 | 1.86 |
Swipe sideways on mobile to view all columns.
