Hose Tail One Piece BSP Swivel Female Straight - Gates

Name: Gates 1 Piece BSP Swivel Female Straight Hose Tail | Hydraulic.Online
Brand: Gates
SKU: HTO-BSF-GA
Price: 13.59 AUD
Availability: InStock

Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Medium Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°/BSP One Piece Hose Tails - Gates

SKU HTO-BSF-0402-GA

AU$13.59

Bulk pricing available for quantities of 5 units or more

Size

Please choose

In stock

Quantity:

Buy more, save more

Quantity	Price per item	Discount
5 items	AU$12.91	5% off
10 items	AU$12.23	10% off
25 items	AU$11.89	13% off
50 items	AU$11.55	15% off

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Share this product with your friends

Share Share Pin it

Hose Tail One Piece BSP Swivel Female Straight - Gates

Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Medium Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°/BSP One Piece Hose Tails - Gates

Product Details

Brand: Gates

Weight: 0.10 kg

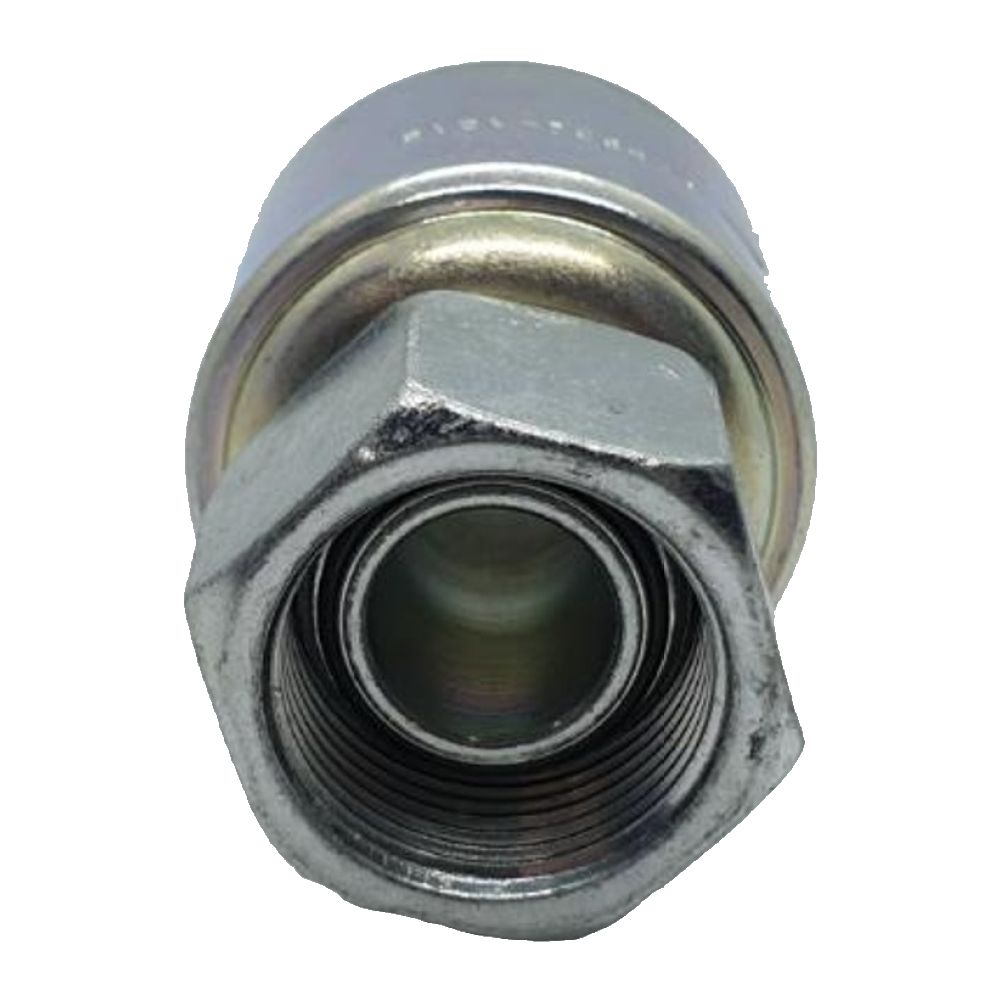

Gates One Piece Bsp Swivel Female Hydraulic Hose Tail

Genuine Gates one piece BSP swivel female hydraulic hose fitting, engineered for SAE 100R1 (1 wire) and 100R2 (2 wire) braided hydraulic hose. This MegaCrimp® one piece coupling crimps directly onto the hose with no separate ferrule required – a 60° cone swivel seat on a BSP (British Standard Parallel Pipe) connection for a certified, leak-free seal every time.

Built for excavators, tractors, skid steers, loaders, agricultural and construction machinery and everyday hydraulic repairs. Precision CNC-formed, zinc-plated carbon steel for corrosion resistance and crimped to genuine Gates specifications.

Why buy from Hydraulic.Online?

100% genuine Gates MegaCrimp one piece coupling – not an import copy
Suits 1 & 2 wire braided hydraulic hose (SAE 100R1/R2, EN853)
No ferrule required – faster, stronger one piece crimp
Full size range – select your hose & thread size above
Bulk discounts applied automatically – buy more, save more
Fast dispatch Australia-wide from our Australian warehouse

Need help matching the right Gates BSP swivel female fitting, ferrule or hose? Contact the Hydraulic.Online team before you buy. Crimp dimensions available as a downloadable Gates crimp chart on request.

Gates Part Numbers & Specifications

Size	Our SKU	Gates Part No	Gates Code	Barcode	L (mm)	Cut-off (mm)	Hex (mm)	Weight (kg)
(04) 1/4" x (02) 1/8"	HTO-BSF-0402-GA	4G-2FBSPX	G25830-0402	770075355328	41.1	18	14	0.10
(04) 1/4" x (04) 1/4"	HTO-BSF-0404-GA	4G-4FBSPORX	G25830-0404	72053401202	43	31.1	19	0.15
(04) 1/4" x (06) 3/8"	HTO-BSF-0406-GA	—	—	—	—	—	—	—
(05) 5/16" x (06) 3/8"	HTO-BSF-0506-GA	5G-6FBSPORX	G25830-0506	72053531169	54	26	22	0.19
(06) 3/8" x (06) 3/8"	HTO-BSF-0606-GA	6G-6FBSPORX	G25830-0606	72053401226	44.1	16.2	22	0.20
(06) 3/8" x (08) 1/2"	HTO-BSF-0608-GA	6G-8FBSPORX	G25830-0608	72053401233	45.8	17.9	27	0.24
(08) 1/2" x (06) 3/8"	HTO-BSF-0806-GA	8G-6FBSPORX	G25830-0806	72053673616	66.5	29	22	0.26
(08) 1/2" x (08) 1/2"	HTO-BSF-0808-GA	8G-8FBSPORX	G25830-0808	72053401240	55.5	17.8	27	0.30
(08) 1/2" x (10) 5/8"	HTO-BSF-0810-GA	8G-10FBSPORX	G25830-0810	72053673623	57.2	19.8	30	0.37
(08) 1/2" x (12) 3/4"	HTO-BSF-0812-GA	8G-12FBSPORX	G25830-0812	770075417880	59	21.5	32	0.41
(10) 5/8" x (10) 5/8"	HTO-BSF-1010-GA	10G-10FBSPORX	G25830-1010	72053401257	56	18.5	30	0.39
(10) 5/8" x (12) 3/4"	HTO-BSF-1012-GA	10G-12FBSPORX	G25830-1012	72053449273	58	20.5	32	0.43
(12) 3/4" x (12) 3/4"	HTO-BSF-1212-GA	12G-12FBSPORX	G25830-1212	72053401264	71.6	20.6	32	0.58
(12) 3/4" x (16) 1"	HTO-BSF-1216-GA	12G-16FBSPORX	G25830-1216	72053673630	73.3	22.3	41	0.85
(16) 1" x (16) 1"	HTO-BSF-1616-GA	16G-16FBSPORX	G25830-1616	72053401271	96	39.2	41	1.10
(20) 1-1/4" x (20) 1-1/4"	HTO-BSF-2020-GA	20G-20FBSPORX	G25830-2020	72053408515	88.5	29.5	50	1.53

Swipe sideways on mobile to view all columns.
