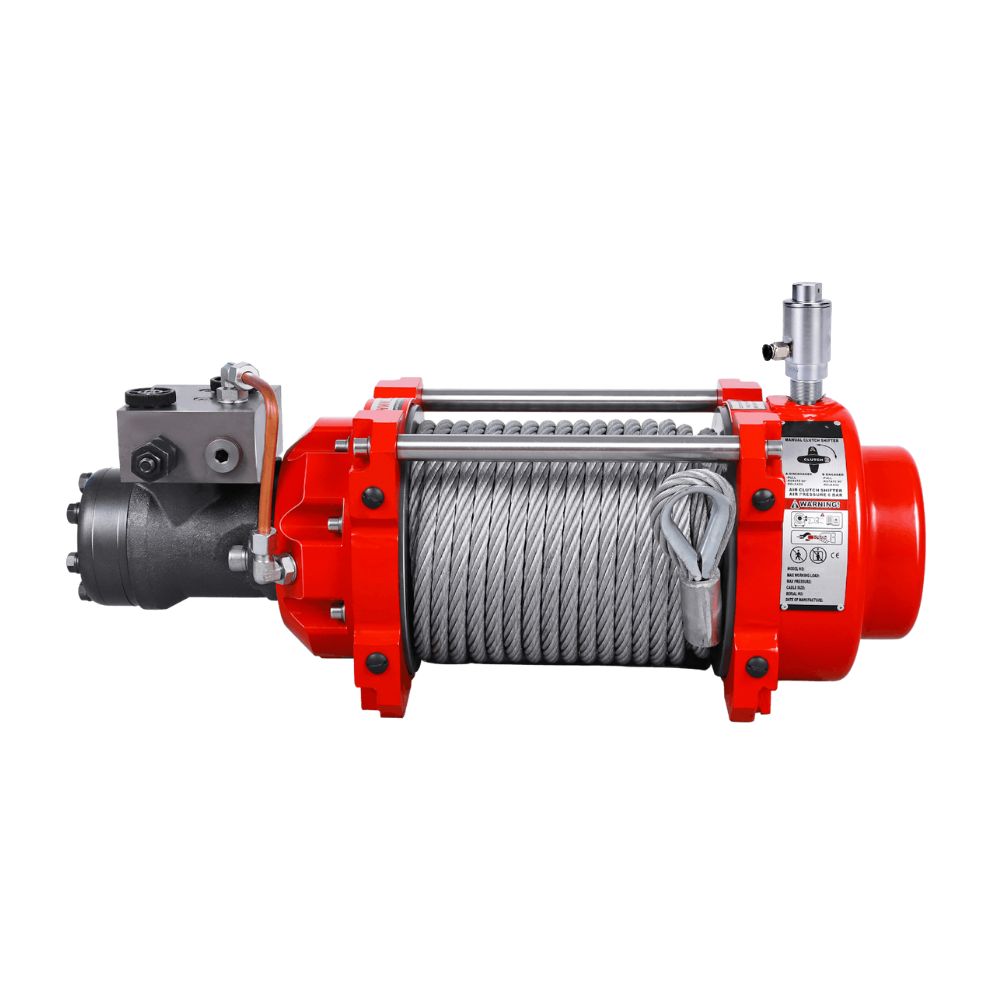

Runva HWN15000I – 15,000lb Commercial Hydraulic Winch (Air Clutch Model)

Experience serious pulling power with the Runva HWN15000I Air Clutch model—a heavy-duty hydraulic winch engineered for commercial, industrial, and extreme off-road applications. Built to perform in the harshest conditions, this compact unit delivers a massive 15,000lb (6,804kg) line pull, making it ideal for tow trucks, expedition vehicles, marine systems, log splitters, and hydraulic machinery.

This upgraded version includes the Runva Air Clutch system, providing effortless clutch engagement from a convenient switch location—perfect for hard-to-reach installations or operators wanting quicker, smoother control. Powered entirely by your vehicle's hydraulic system, the HWN15000I delivers consistent performance without overheating. With an overall length of 586mm and a weight of 71kg, it is compact enough for applications where space and weight are critical.

Key Features

• Powerful 15,000lb Hydraulic Pulling Capacity – Designed for commercial recovery, industrial lifting, and heavy equipment operations.
• Compact & Efficient Build – Only 586mm long for installations with limited space.
• Wet-Type Hydraulic Disc Brake – Automatic load holding for maximum safety and control.
• Two-Stage Steel Planetary Gearbox – Strong, efficient, and engineered for long-term durability.
• IP67 Rated Protection – Fully sealed against mud, water, sand, and extreme environments.
• Runva Air Clutch System Included – Smooth, fast clutch engagement without needing manual operation.
• Optional Remote Control Kit – Add handheld or wireless remote plus 12V/24V directional control valve.
• Commercial Grade Construction – Ideal for tow trucks, Iveco Daily, Unimog, marine systems, forestry, and custom hydraulics.

Technical Specifications

Rated Line Pull: 15,000lb (6,804kg)
Motor Displacement: 80ml/r
Oil Flow Requirement: 25–60 L/min
Pressure Requirement: 13MPa
Gear Train: Full steel, 2-stage planetary
Gear Ratio: 33.4:1
Brake: Automatic hydraulic disc
Clutch: Runva Air Clutch system
Cable: 12mm × 26.5m steel cable
Drum Size: 89mm × 217mm
Overall Dimensions: 586mm × 255mm × 262mm
Mounting Bolt Pattern: 254mm × 114.3mm (4 × M12)
Ingress Protection: IP67
Finish: Red powder coat
Warranty: Limited 18-month commercial warranty
SKU: HWN15000IS

Hydraulic Performance Chart

Line Pull 0kg – 3.0MPa, 5 L/min, 0.5 m/min
Line Pull 2,268kg – 4.3MPa, 10 L/min, 1.0 m/min
Line Pull 4,536kg – 8.7MPa, 20 L/min, 2.0 m/min
Line Pull 5,443kg – 10.0MPa, 40 L/min, 4.0 m/min
Line Pull 6,804kg – 13.0MPa, 60 L/min, 6.4 m/min

Optional Accessories

Handheld or wireless remote, 12V/24V directional control valve, valve block.

Ideal Applications

Tow trucks and recovery vehicles, Unimog and Iveco expedition trucks, marine winching systems, forestry machinery, log splitters, agricultural and industrial equipment, portable hydraulic machines.

Why Choose Runva

Runva is known globally for producing reliable, commercial-grade hydraulic winches built to handle the toughest conditions. The HWN15000I Air Clutch model delivers smooth operation, superior durability, and outstanding performance with every pull.
