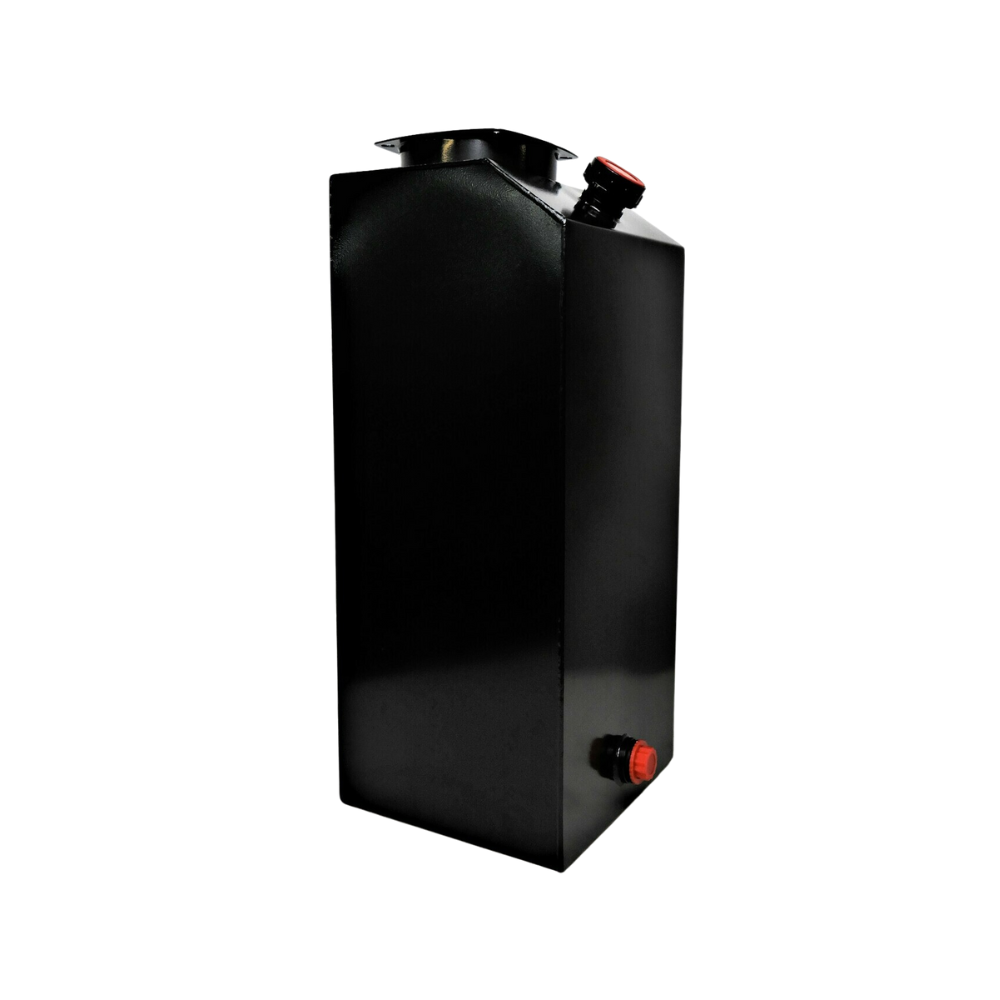

Hydraulic Car Hoist Replacement Steel Oil Tanks Available in Round or Rectangular 7.5, 10, 12, and 15 litre capacity.

Plastic oil tanks on car hoists have a tendency to become brittle & crack or leak with age.

This is a bolt-on steel alternative.
These steel tanks will bolt straight onto most hydraulic pumps.
Please see the photos for the dimensions of the neck & bolts.

Tank Dimensions

• These Rectangular or Round tanks also fit most DC Hydraulic Power Units
• The 12 Litre tank is 395 mm long 200 mm wide and 200 deep
• The 15 Litre tank is 510 mm Long 200mm wide and 200 mm deep
• Hole Pitch Centres are between 95-105mm (Oval shaped bolt slot)
• The flange internal diameter or bore 120 mm.

• Tank Capacity	Length	Width	Height	Bolt Hole Centres	Internal Diameter
  5.7 litres	350 mm	177 mm Ø	N/A	95-105mm (Slotted holes)	120 mm
  7.5 litres	280 mm	200 mm	200 mm	95-105mm (Slotted holes)	120 mm
  10 litres	335 mm	200 mm	200 mm	95-105mm (Slotted holes)	120 mm
  12 litres	395 mm	200 mm	200 mm	95-105mm (Slotted holes)	120 mm
  15 litres	510 mm	200 mm	200 mm	95-105mm (Slotted holes)	120 mm
