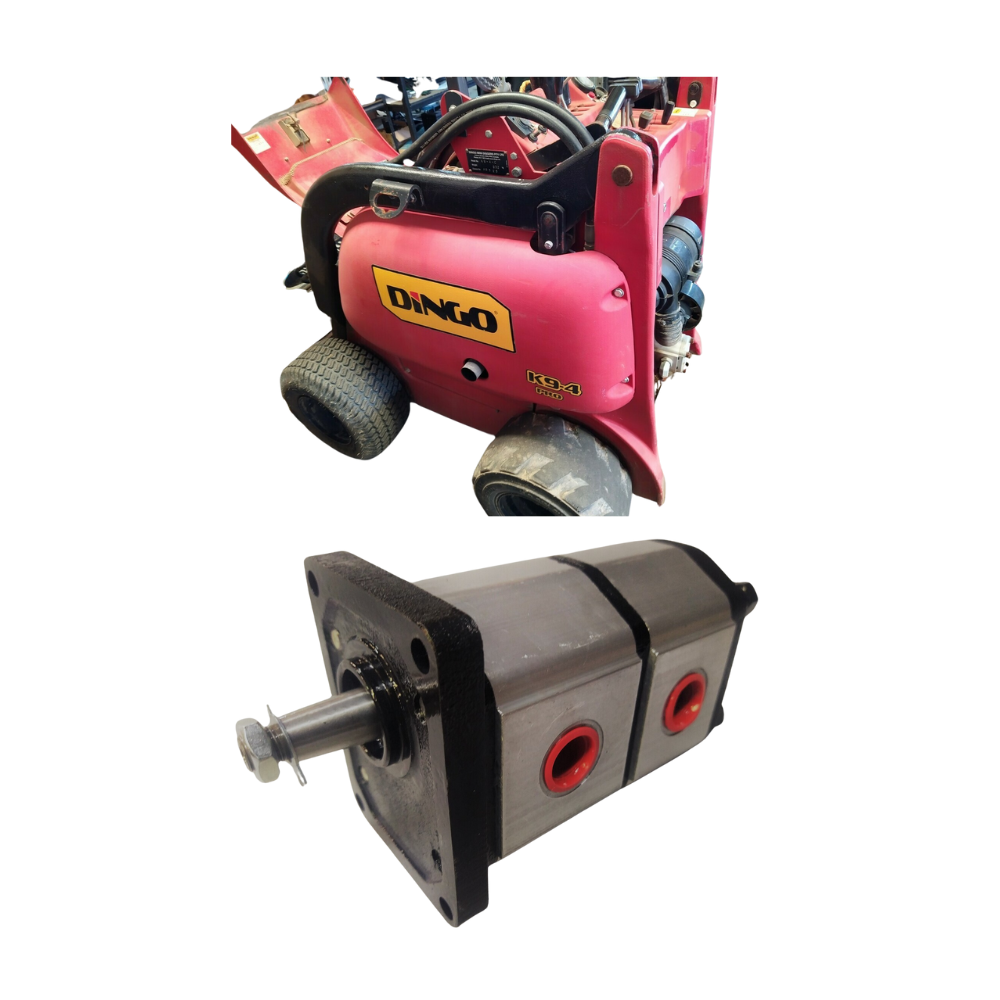

Hydraulic Tandem (Double) Gear Pump suits Dingo K9 4 Fiberglass Panels Model
This is a quality bolt-on hydraulic tandem gear pump designed to replace the one in your Dingo Dingo K94 Fiberglass Panels Model.

This will bolt straight on, & you can reconnect your adapters & hoses.

This pump has a Single Suction port & 2 pressure ports. If your machine is running slower than it used to & is finding it harder to lift heavy loads, there is a big chance your pump is worn, & is allowing oil to bypass when pushed hard.

Specifications

• Length of the pump; 170mm (from the Front Flange mounting face to the back of bolts.)
• Pump Capacities 10cc front pump and a 4cc rear pump Optional Pump Capacities
• 10cc front pump and a 4cc rear pump
• and will suit both panel types K9 4.
• The Alloy side cover Dingos actually use a slightly larger 12cc front pump.

You also have the option at no extra cost of a 12cc / 4cc unit.
The bigger 12CC pump drives your wheels.

Whilst the 12CC Front drive Pump will give you a little more ground speed,
the 10cc drive pump will allow you to traverse steep hills with load better.

We recommend using the 10cc option.
If you are unsure about identifying your pump, please clean & send a photo of numbers & letters stamped in the body of all pumps.

We may be able to interpret this for you. Please send us a message for any inquiries or extra fittings.

Please allow 2-3 business days for dispatch

Email: sales@hydraulic.online
Phone: 07 5563 1982
Hours: 8 am to 5 pm Monday – Thursday 8 to 3 PM Friday.

Best regards,
Hydraulic.Online

MM 09/01/2025 abc $ seo

Express shipping Australia-wide. We dispatch daily to New South Wales, Victoria, Queensland, Western Australia, South Australia, Tasmania, the Australian Capital Territory and the Northern Territory – Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra and Darwin, plus regional and remote sites.

Technicians Advice

Before ordering a replacement, photograph the name plate and the shaft end of the old pump. Mini-loader pumps vary by rotation, spline count and port orientation even within the same model - check yours against the listing before you buy, and send us the photos if you are not sure. Replace the coupling insert while the pump is off, and prime the housing with clean oil before first start.
