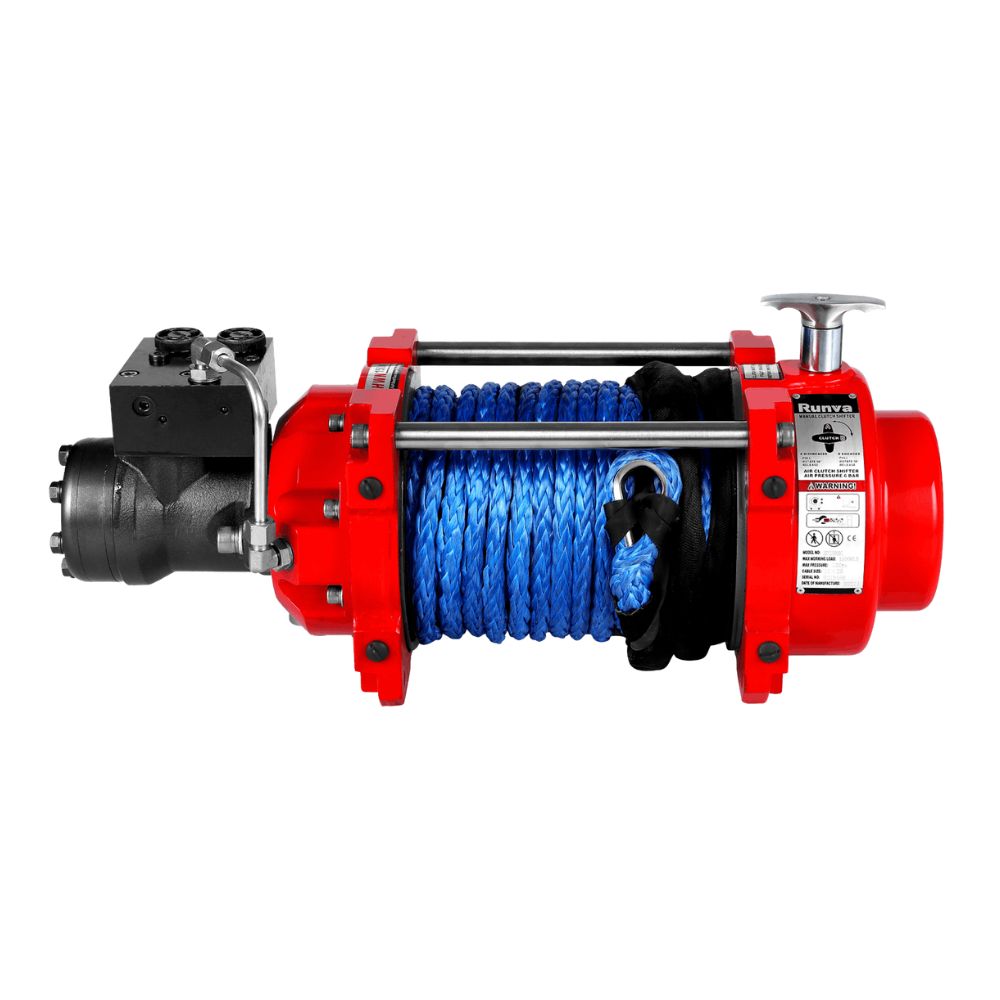

Runva HWN15000I – 15,000lb Commercial Hydraulic Winch (Synthetic Rope)

The Runva HWN15000I is a powerful, commercial-grade hydraulic winch designed for demanding industrial, commercial, and off-road applications. Delivering a massive 15,000lb (6,804kg) of pulling capacity in an impressively compact body, this model is only 586mm long and weighs 71kg, making it perfect for installations where space and weight matter. Built for maximum reliability, the HWN15000I features a wet-type hydraulic disc brake for automatic load holding and a strong two-stage planetary gearbox for efficient torque transfer. With full IP67 ingress protection, this winch is engineered to operate in extreme conditions including mud, water, sand, and harsh weather environments. This configuration comes equipped with high-quality synthetic rope, offering reduced weight, safer handling, and improved performance in recovery and industrial applications. The HWN15000I is ideal for tow trucks, recovery vehicles, expedition rigs like Unimog and Iveco Daily, log splitters, portable hydraulic machines, marine equipment and much more. If you require remote operation, an optional accessory kit is available, including a handheld remote (wireless optional), directional control valve (12V or 24V), and valve block.

Key Features

• 15,000lb Hydraulic Pulling Power – Built for commercial recovery, marine, industrial, and heavy equipment applications.
• Compact Design – Only 586mm in length for tight-space installations.
• Wet-Type Hydraulic Disc Brake – Automatic load-holding for unbeatable safety and control.
• Two-Stage Planetary Gearbox – Full steel gears for strength and long-term durability.
• IP67 Rated – Fully sealed for extreme weather and off-road environments.
• Lightweight Synthetic Rope Included – Safer, easier to handle, corrosion-resistant.
• Optional Remote Kit – Add wired or wireless remote and hydraulic directional valve if required.
• Commercial Build Quality – Designed for continuous, high-demand operation.

Technical Specifications

Rated Line Pull: 15,000lb (6,804kg)
Motor Displacement: 80ml/r
Oil Flow Requirement: 25–60 L/min
Pressure Requirement: 13MPa
Gear Train: Full steel, 2-stage planetary
Gear Ratio: 33.4:1
Brake: Automatic hydraulic disc
Rope: 10mm × 25m synthetic rope
Drum Size: 89mm × 217mm
Overall Dimensions: 586mm × 255mm × 262mm
Mounting Bolt Pattern: 254mm × 114.3mm (4 × M12)
Ingress Protection: IP67
Finish: Red powder coat
Warranty: Limited 18-month commercial warranty
SKU: HWN15000IS

Performance

0kg – 3.0MPa, 5 L/min, 0.5 m/min
2,268kg – 4.3MPa, 10 L/min, 1.0 m/min
4,536kg – 8.7MPa, 20 L/min, 2.0 m/min
5,443kg – 10.0MPa, 40 L/min, 4.0 m/min
6,804kg – 13.0MPa, 60 L/min, 6.4 m/min
Rated Line Pull by Layer: 1st – 15,000lb, 2nd – 12,120lb, 3rd – 10,168lb, 4th – 8,757lb. Total Rope on Drum: 26.5m.

Optional Accessories

Wired remote, wireless remote, 12V or 24V directional control valve, valve block.

Ideal Applications

Tow trucks, recovery vehicles, Unimog and Iveco expedition builds, forestry machinery, marine systems, log splitters, agricultural and industrial equipment, portable hydraulic machines.
