JIC 37° Male x JIC Swivel Female x BSP Parallel Female Test Point Tee

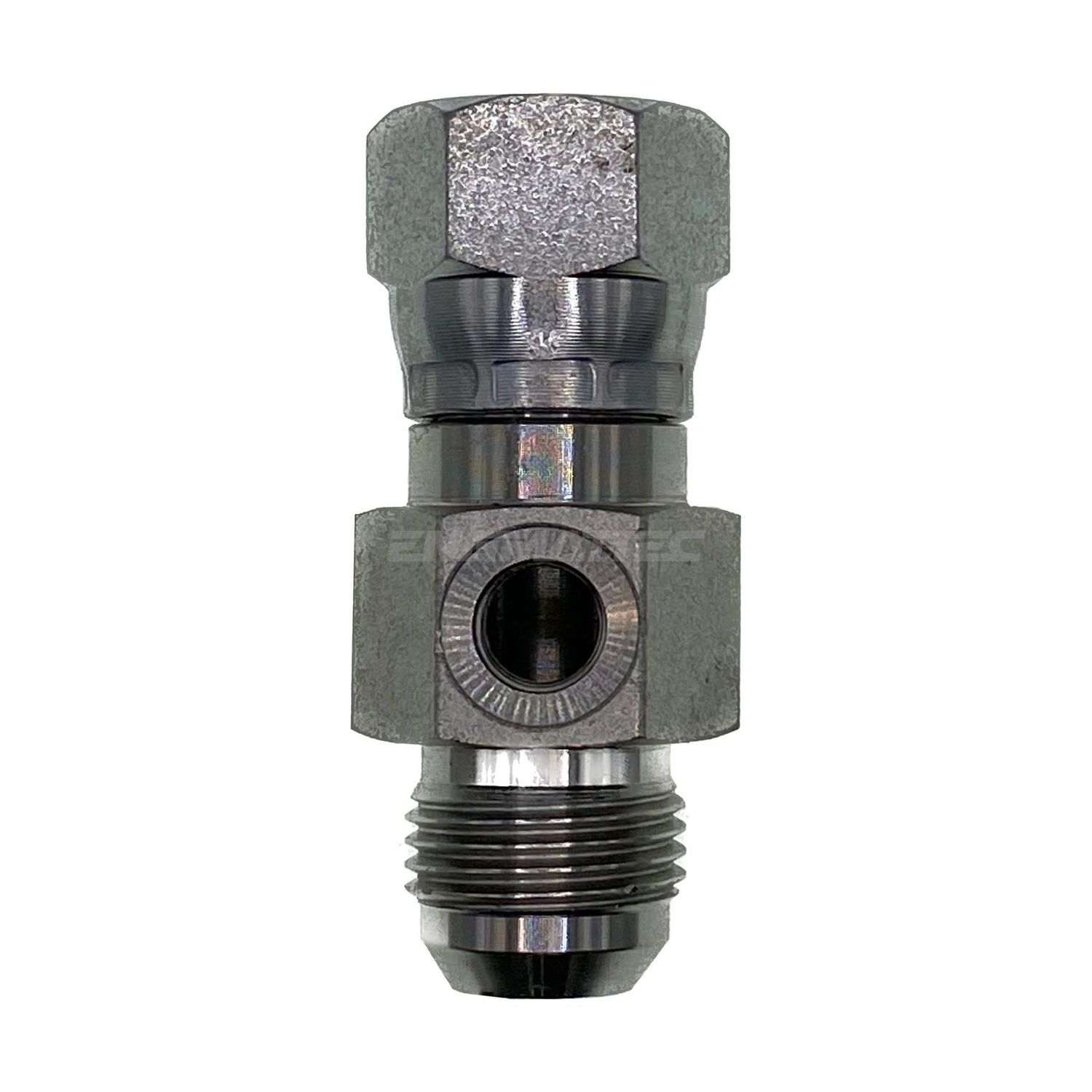

A JIC male and JIC swivel female in line with a BSPP female test port. Drops a gauge into a JIC line without breaking the run.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.
• BSP Parallel Female – BSPP to ISO 228. It needs a bonded washer or a cone seat to seal, because a parallel thread cannot seal on itself.

How to Choose

• A test point tee puts a gauge or sender port into a live line without breaking into it permanently.
• The two JIC ports seal dry on their cones. The BSPP test port needs a washer or cone seat.
• Keep sealant off both JIC cones.

Technicians Advice

Cap the test port between uses. And when the gauge does go on, fit it before you pressurise rather than cracking a live port to get it in.

Where You’ll Find It

• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.
• JIC 37° Swivel Female – Hose ends on imported machinery, where the swivel lets the assembly be fitted without winding up the hose.
• BSP Parallel Female – Female side of BSPP manifolds, adaptor blocks and gauge assemblies on local equipment.

Cross-Reference

• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.
• JIC 37° Swivel Female – SAE J514 / ISO 8434-2 37° flare. Parker series Triple-Lok.
• BSP Parallel Female – BSPP to ISO 228 / BS 2779, written G.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	H	H1	C	Material	Finish
JIM-JIF-BPF-070702	7/16" JIC	7/16" JIC	14.3mm	27mm	1/8" BSPP	Mild steel	Plated finish
JIM-JIF-BPF-090902	9/16" JIC	9/16" JIC	17.5mm	27mm	1/8" BSPP	Mild steel	Plated finish
JIM-JIF-BPF-121202	3/4" JIC	3/4" JIC	22.2mm	27mm	1/8" BSPP	Mild steel	Plated finish
JIM-JIF-BPF-141402	7/8" JIC	7/8" JIC	25.4mm	27mm	1/8" BSPP	Mild steel	Plated finish
JIM-JIF-BPF-171702	1.1/16" JIC	1.1/16" JIC	31.8mm	32mm	1/8" BSPP	Mild steel	Plated finish
JIM-JIF-BPF-212102	1.5/16" JIC	1.5/16" JIC	38mm	38mm	1/8" BSPP	Mild steel	Plated finish

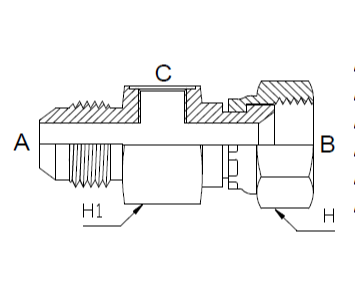

Key: H centre to face, H1 centre to face 2, C across corners. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
