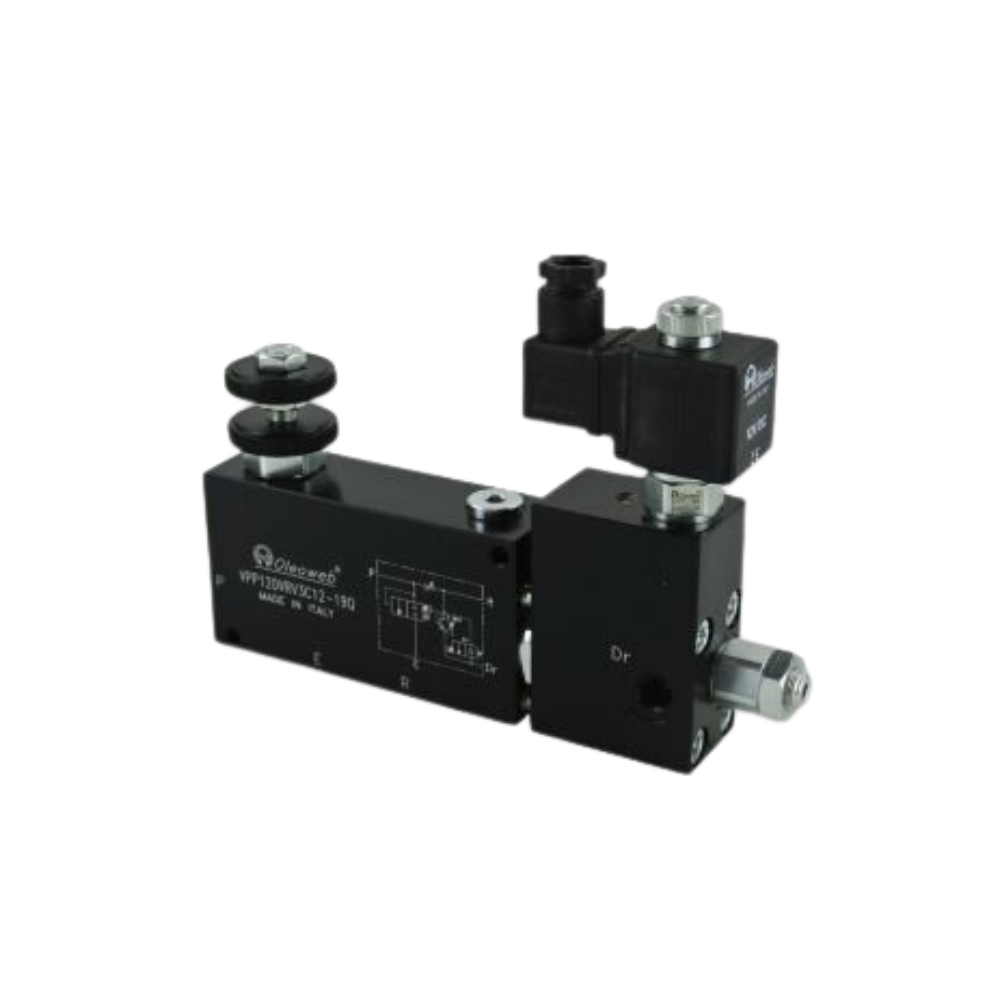

Pressure-Compensated Priority Flow Control valve with Solenoid control and Relief Valve

The VPP-RV flow control valves manage the power priority between two users.

Thanks to the presence of the hydraulic compensator, the flow rate sent to the priority user is constant even in the presence of pressure variations.

The second user is powered by the excess flow and it is therefore subject to its possible variations (e.g. due to the change in rpm of the motor connected to the pump).

For optimal operation, it is recommended to set the valve inlet flow of at least 10% higher than the flow you want to regulate. Depending on the chosen size, the VPP flow regulators can work with inlet flow rates up to 90lpm and maximum pressures up to 250 bar (3625 PSI).

Available with 12V or 24V coils. Also, choose from normally open or normally closed option.

MAXIMUM FLOWS: DO NOT EXCEED!

1/2" ; 90 L/MIN CON, 50 L/MIN IN R

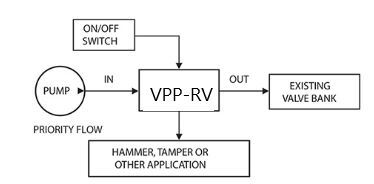

Please note, for use on hammer circuits, modern machines may have load sense variable pumps. Careful planning is necessary to ensure this will work
