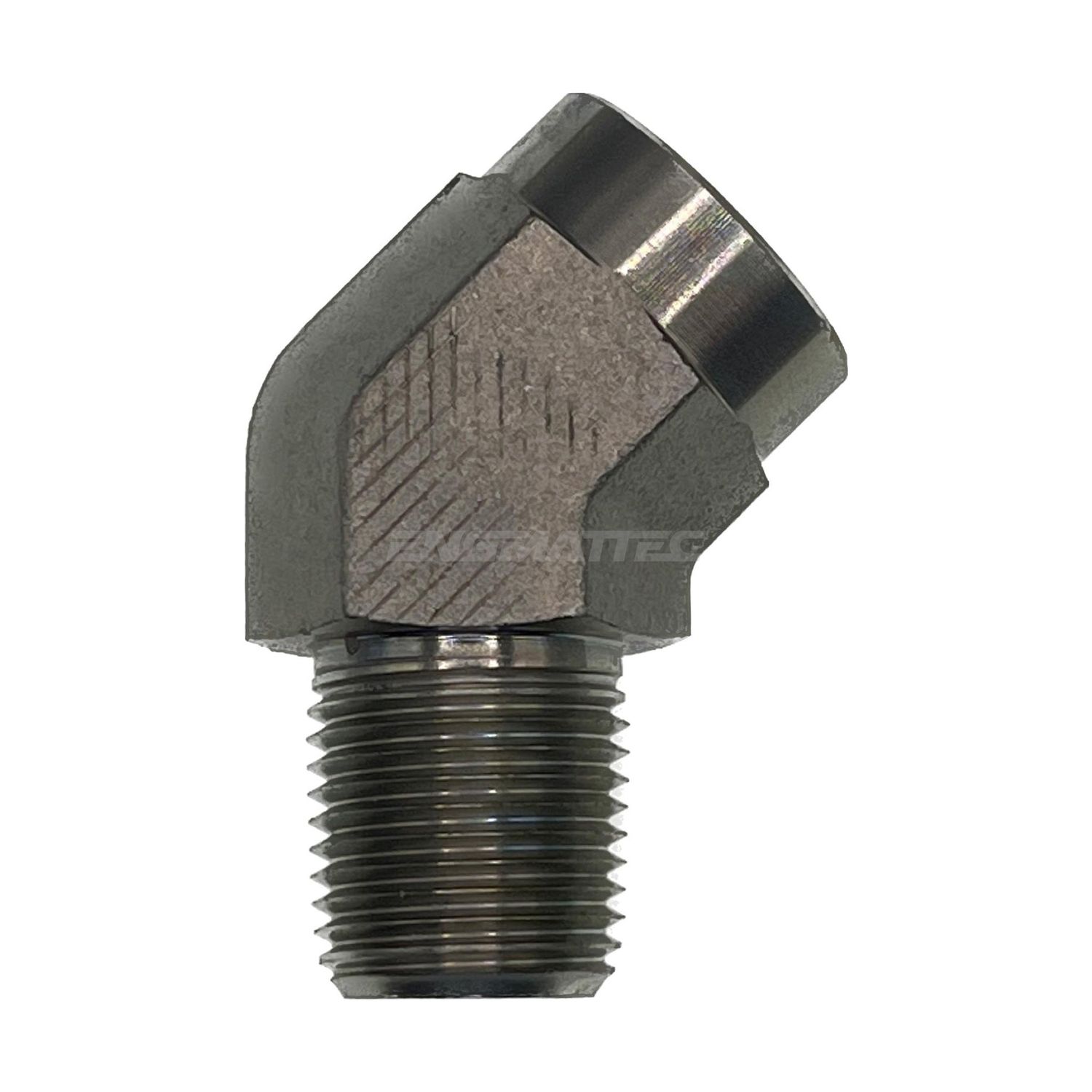

BSP Tapered Female x BSP Tapered Male 45° Compact Elbow

A female-to-male 45° compact elbow in BSP tapered thread – the straightforward way to put a 45° turn into an existing BSPT run without changing anything else. Male into the port, female accepts the next fitting. Standard on Aussie-built tippers, truck bodies, Kanga and Dingo loaders, Merlo, Manitou, JCB and general farm machinery.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• BSP Tapered Female – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself.
• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself.

How to Choose

• First number is the female end, second is the male end – they can differ if you are stepping size.
• Male end goes into the port or component; female end takes the onward fitting.
• Compact body for confined installs; swept bends flow better where space allows.

Where You’ll Find It

• BSP Tapered Female – Female side of local pipework, adaptor blocks and gauge manifolds.
• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.

Cross-Reference

• BSP Tapered Female – BSPT to ISO 7 / BS 21, written Rc for female.
• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Technicians Advice

Both ends are tapered thread, so both seal on sealant rather than a seat. Tape the male end before it goes into the port and keep the female end clean until the mating fitting is ready to go in. The classic mistake is tightening the female end afterwards and unscrewing the male end behind it – always hold the elbow body with a second spanner.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	S1	Material	Finish
BTF-BTM-45C-0404	1/4" BSPT	1/4" BSPT	19mm	Mild steel	Plated finish
BTF-BTM-45C-0606	3/8" BSPT	3/8" BSPT	24mm	Mild steel	Plated finish
BTF-BTM-45C-0808	1/2" BSPT	1/2" BSPT	27mm	Mild steel	Plated finish
BTF-BTM-45C-1212	3/4" BSPT	3/4" BSPT	33mm	Mild steel	Plated finish
BTF-BTM-45C-1616	1" BSPT	1" BSPT	41mm	Mild steel	Plated finish

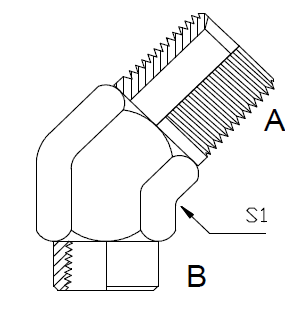

Key: S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
