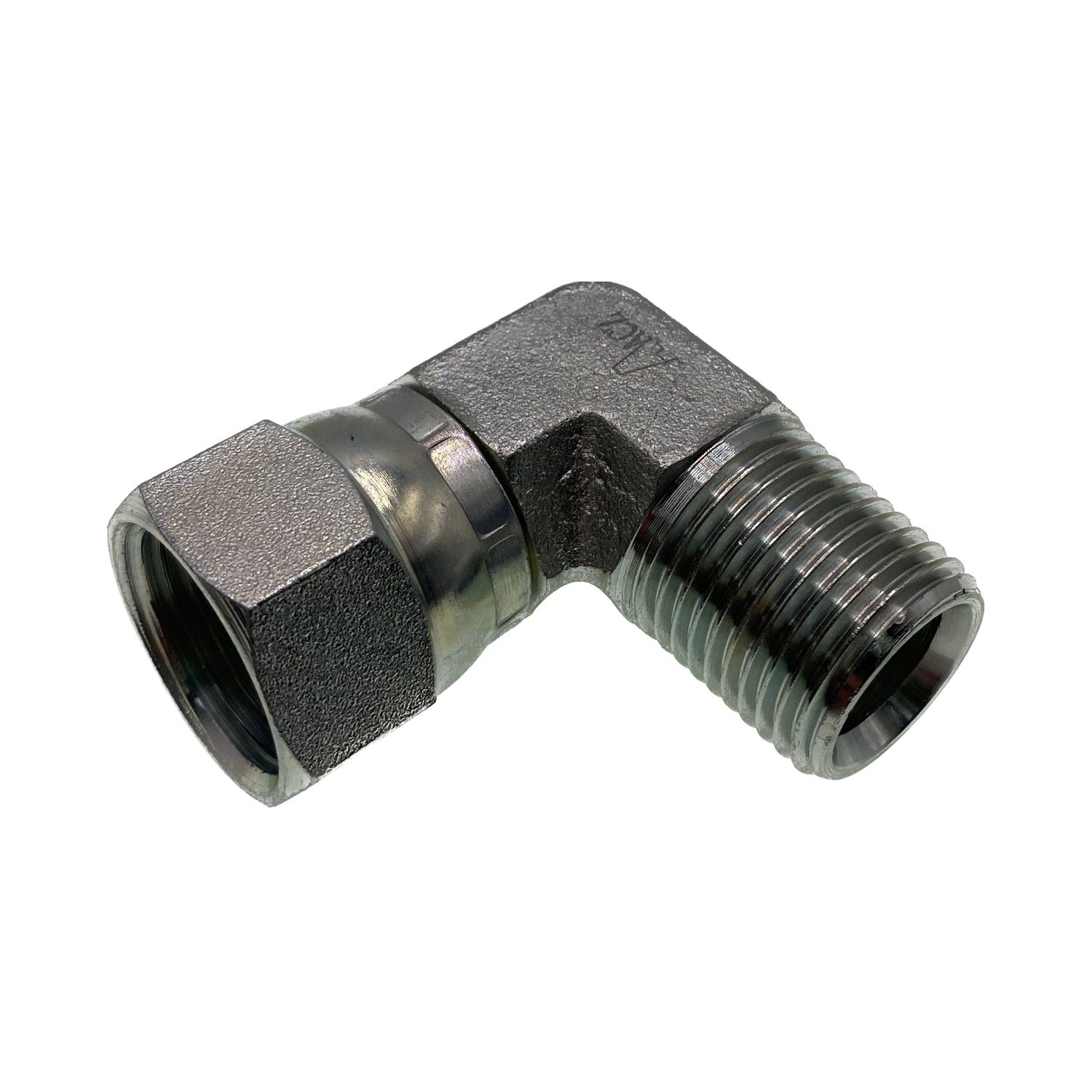

BSP Tapered Male x JIC 37° Swivel Female 90° Compact Elbow

Tapered BSP screws into the local port, JIC swivel female takes the imported hose, and the body turns it 90°. Because the JIC end swivels, the hose can be aimed and tightened without being wound up.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself, so it needs PTFE tape or a liquid thread sealant.
• JIC 37° Swivel Female – SAE J514 37° flare. It seals on the 37° cone seat and swivels, so the hose is never wound up during assembly.

How to Choose

• Tape or sealant on the BSPT end only. The JIC swivel seals on its 37° cone and must stay dry.
• Confirm the port is BSP tapered and not NPT. The thread forms are 55° and 60° and will not seal against each other.
• The swivel size and the port size are independent; pick each to suit what it mates with.

Where You’ll Find It

• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.
• JIC 37° Swivel Female – Hose ends on imported machinery, where the swivel lets the assembly be fitted without winding up the hose.

Cross-Reference

• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.
• JIC 37° Swivel Female – SAE J514 / ISO 8434-2 37° flare. Parker series Triple-Lok.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Technicians Advice

Wind the tapered end home first and get the elbow pointing where you want it, then connect the hose to the swivel. Doing it the other way round means twisting a made-up hose to aim the fitting, which puts a permanent wind-up in the assembly and shortens its life a lot.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	H	S1	Material	Finish
BTM-JIF-90C-0407	1/4" BSPT	7/16" JIC	14.3mm	14mm	Mild steel	Plated finish
BTM-JIF-90C-0409	1/4" BSPT	9/16" JIC	17.5mm	14mm	Mild steel	Plated finish
BTM-JIF-90C-0609	3/8" BSPT	9/16" JIC	17.5mm	19mm	Mild steel	Plated finish
BTM-JIF-90C-0612	3/8" BSPT	3/4" JIC	22.2mm	19mm	Mild steel	Plated finish
BTM-JIF-90C-0614	3/8" BSPT	7/8" JIC	25.4mm	22mm	Mild steel	Plated finish
BTM-JIF-90C-0812	1/2" BSPT	3/4" JIC	22.2mm	22mm	Mild steel	Plated finish
BTM-JIF-90C-0814	1/2" BSPT	7/8" JIC	25.4mm	22mm	Mild steel	Plated finish
BTM-JIF-90C-1217	3/4" BSPT	1.1/16" JIC	31.8mm	27mm	Mild steel	Plated finish
BTM-JIF-90C-1621	1" BSPT	1.5/16" JIC	38mm	33mm	Mild steel	Plated finish

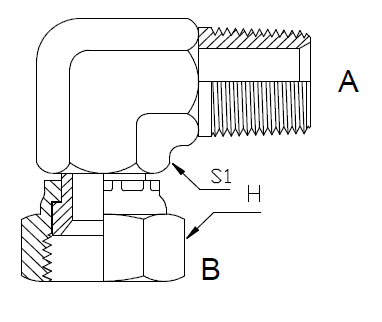

Key: H centre to face, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

🔗 Straight – same threads
