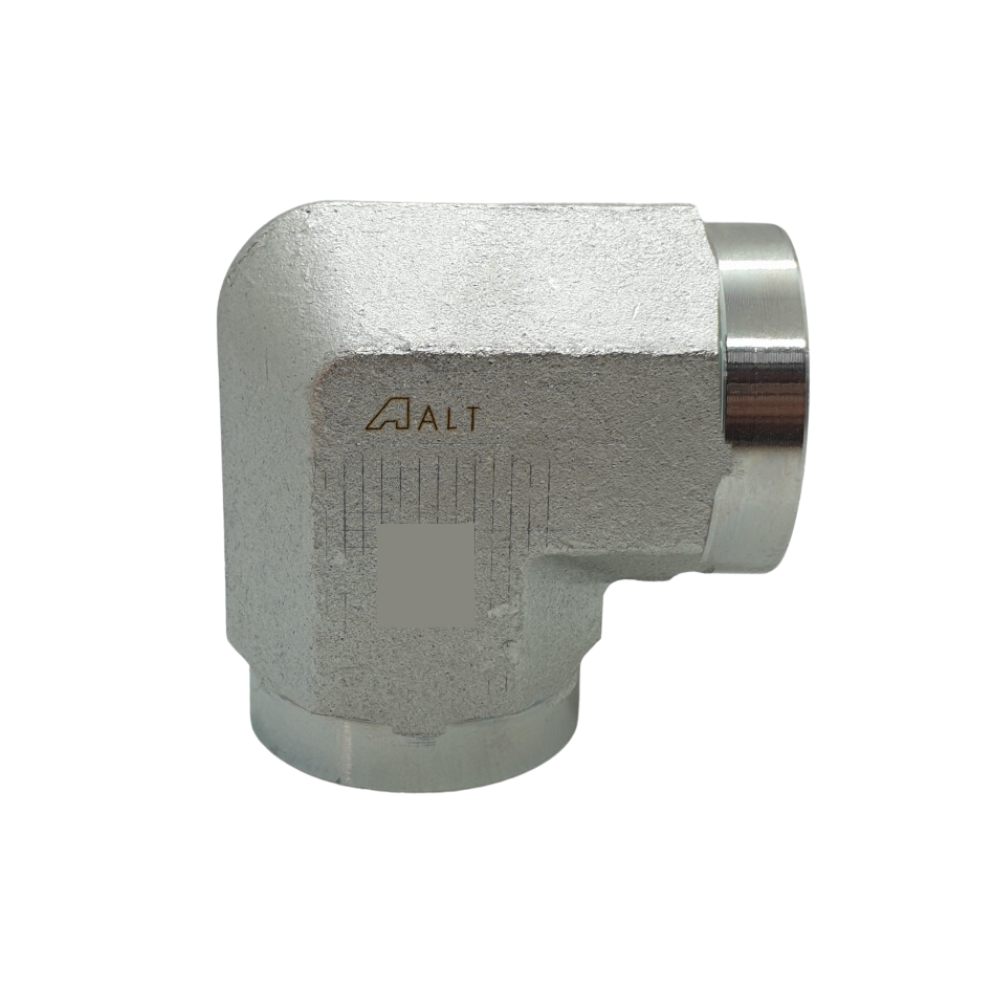

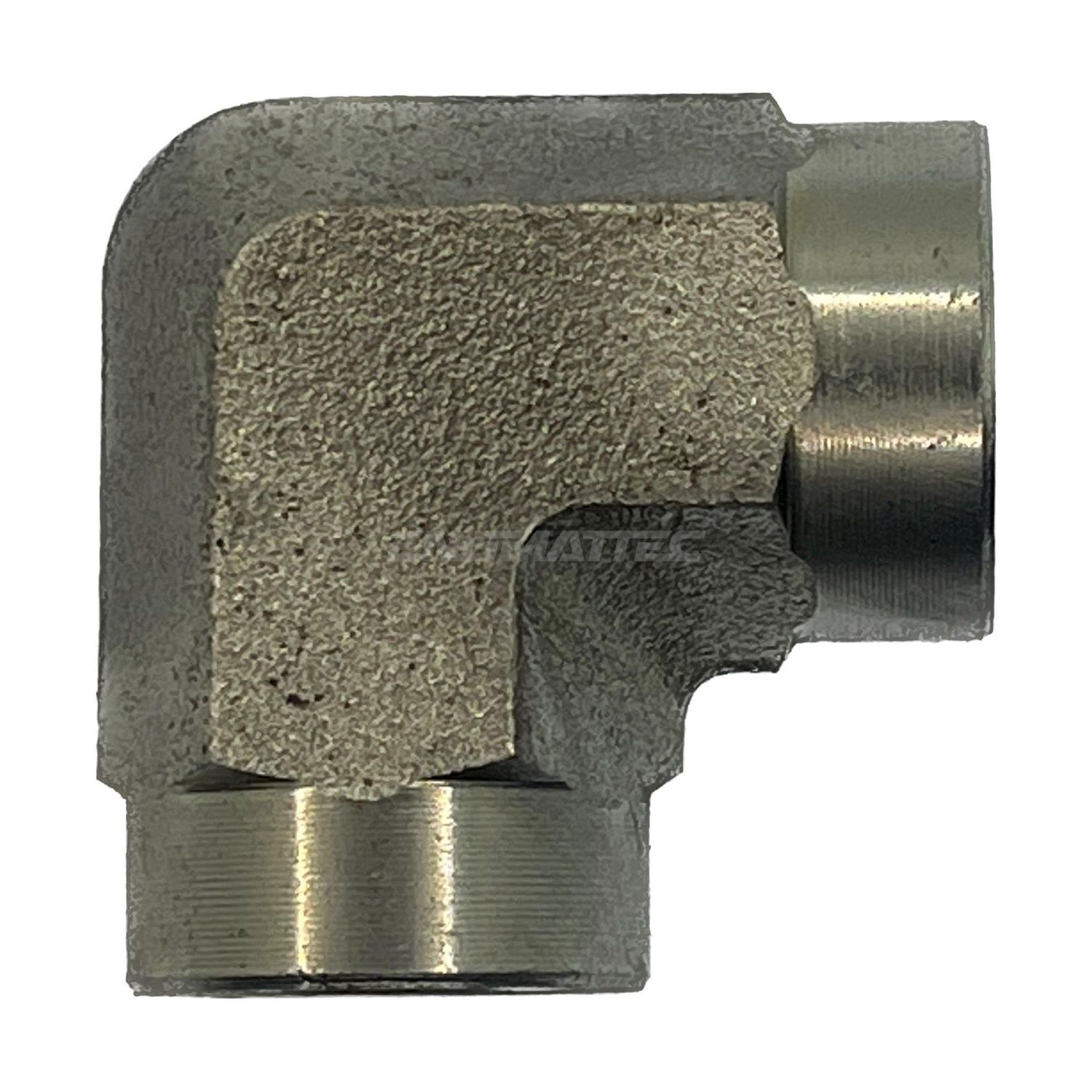

BSP Tapered Female x BSP Tapered Female 90° Compact Elbow

Female-to-female tapered BSP at 90°. The pipework elbow for turning a run where both sides present male ends, common on tank lines, return plumbing and gauge work.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• BSP Tapered Female – BSPT to ISO 7 / BS 21. It seals on the thread interference and must be taped or sealed.

How to Choose

• Both ends are tapered female, so whatever screws in must be BSPT male. NPT will start and then damage the casting.
• BSP is a 55° thread form; NPT is 60°. They are not interchangeable at any size.
• Check the body pressure rating if this sits in a working line rather than on a tank.

Where You’ll Find It

• BSP Tapered Female – Female side of local pipework, adaptor blocks and gauge manifolds.

Cross-Reference

• BSP Tapered Female – BSPT to ISO 7 / BS 21, written Rc for female.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Technicians Advice

With sealant on both ends there is twice the chance of squeezing excess into the bore. Use a liquid thread sealant rather than tape where the elbow feeds a valve or pump, because a tape tail that lets go will find its way into a spool and jam it.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	S1	Material	Finish
BTF-BTF-90C-0202	1/8" BSPT	1/8" BSPT	16mm	Mild steel	Plated finish
BTF-BTF-90C-0204	1/8" BSPT	1/4" BSPT	19mm	Mild steel	Plated finish
BTF-BTF-90C-0404	1/4" BSPT	1/4" BSPT	19mm	Mild steel	Plated finish
BTF-BTF-90C-0606	3/8" BSPT	3/8" BSPT	24mm	Mild steel	Plated finish
BTF-BTF-90C-0608	3/8" BSPT	1/2" BSPT	27mm	Mild steel	Plated finish
BTF-BTF-90C-0808	1/2" BSPT	1/2" BSPT	27mm	Mild steel	Plated finish
BTF-BTF-90C-1212	3/4" BSPT	3/4" BSPT	33mm	Mild steel	Plated finish
BTF-BTF-90C-1616	1" BSPT	1" BSPT	41mm	Mild steel	Plated finish
BTF-BTF-90C-2020	1.1/4" BSPT	1.1/4" BSPT	50mm	Mild steel	Plated finish
BTF-BTF-90C-2424	1.1/2" BSPT	1.1/2" BSPT	63mm	Mild steel	Plated finish
BTF-BTF-90C-3232	2" BSPT	2" BSPT	70mm	Mild steel	Plated finish

Key: S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
