BSP Tapered Male x BSP Tapered Male 90° Compact Hydraulic Adaptor

Name: BSPT x BSPT Male Male 90° Compact Elbow Hydraulic Adaptor
Brand: Hydraulic.Online
SKU: BTM-BTM-90C
Price: 4.4 AUD
Availability: InStock

Store/Adaptors Straight, 45 & 90 Elbows & Tees/BSP Adaptors Straights, Elbows, and Tees

SKU BTM-BTM-90C

AU$4.40

Best Value

was ~~AU$8.40~~ Save 48%

Size

Please choose

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Share this product with your friends

Share Share Pin it

BSP Tapered Male x BSP Tapered Male 90° Compact Hydraulic Adaptor

Store/Adaptors Straight, 45 & 90 Elbows & Tees/BSP Adaptors Straights, Elbows, and Tees

Product Details

Brand: Hydraulic.Online

Weight: 0.10 kg

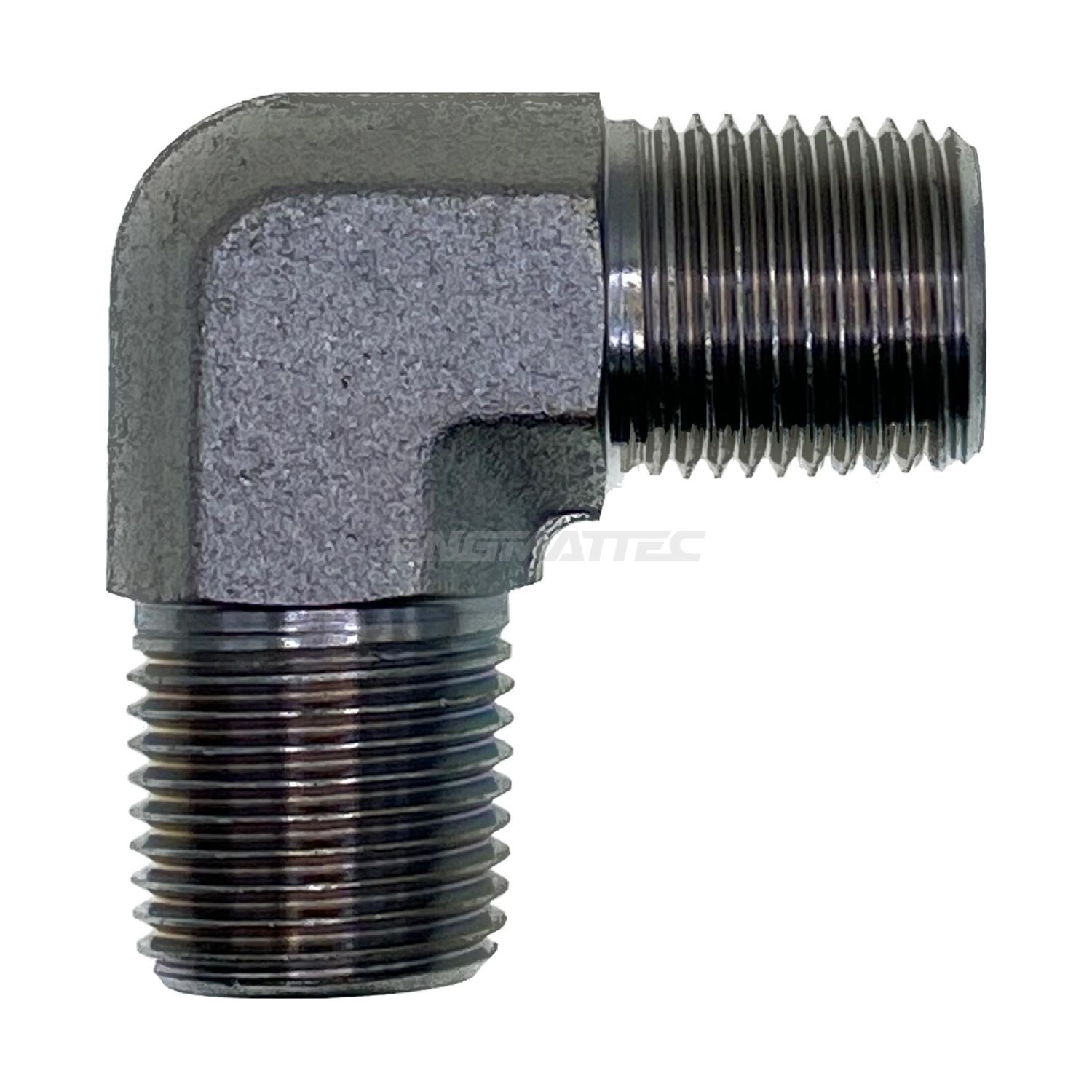

BSP Tapered Male x BSP Tapered Male 90° Compact Elbow for high pressure Hydraulic Applications Forged Steel

These are Hydraulic elbows 90° BSPT Male (tapered) / BSPT Male (tapered).

Please select your required size from the above dropbox.
If the required size is not listed, please call or Email us us & we will update you.

We have other listings for caps, as well as other adaptors.

BSPT/BSPP THREAD ID CHART
BSPT / BSPP Size & Pitch	DASH SIZE	BSPT Male Thread OD		BSPP Male Thread OD		BSPT Female Thread ID		BSPP Female Thread ID
BSPT / BSPP Size & Pitch	DASH SIZE	BSPT Male Thread OD		BSPP Male Thread OD		BSPT Female Thread ID		BSPP Female Thread ID
inch – TPI		mm	inch	mm	inch	mm	inch	mm	inch
1/8 – 28	-02	9,5	0.37	9,6	0.38	8,4	0.33	8,6	0.34
1/4 – 19	-04	12,8	0.50	13,0	0.51	11,2	0.44	11,9	0.47
3/8 – 19	-06	16,3	0.64	16,5	0.65	14,7	0.59	15,2	0.60
1/2 – 14	-08	20,4	0.80	20,8	0.82	18,3	0.72	19,1	0.75
5/8 – 14	-10	22,5	0.89	22,8	0.90	20,6	0.81	20,8	0.82
3/4 – 14	-12	25,9	1.02	26,3	1.04	23,9	0.94	24,6	0.97
1 – 11	-16	32,6	1.28	33,1	1.30	29,7	1.17	30,7	1.21
1.1/4 – 11	-20	41,1	1.62	41,8	1.64	38,6	1.52	39,4	1.55
1.1/2 – 11	-24	47,0	1.85	47,7	1.88	44,5	1.75	45,5	1.79
2 -11	-32	58,6	2.31	59,5	2.34	56,4	2.22	57,4	2.26
2.1/2 – 11	-40	74,1	2.92	75,1	2.95	71,9	2.83	72,6	2.86
3 – 11	-48	86,6	3.41	87,9	3.46	84,6	3.33	85,4	3.36

Email: sales@mhfgc.com.au
Phone: 07 5563 1982 or 1300 1 HOSES
Hours: 8 am to 5 pm Monday - Thursday 8 to 5 pm Fridays, QLD time , excluding public holidays
If you have any questions please don’t hesitate to contact us

Best regards,
Hydraulic.Online
Improper Selection, Installation, Implementation, And/Or Operation By Anyone Other Than Persons With Appropriate Technical And Mechanical Training Can Result In Damage To Equipment Or Property, Serious Personal Injury, Or Death. Proper Precautions And Safety Procedures Should Be Implemented Prior To The Installation And Operation Of Equipment.
