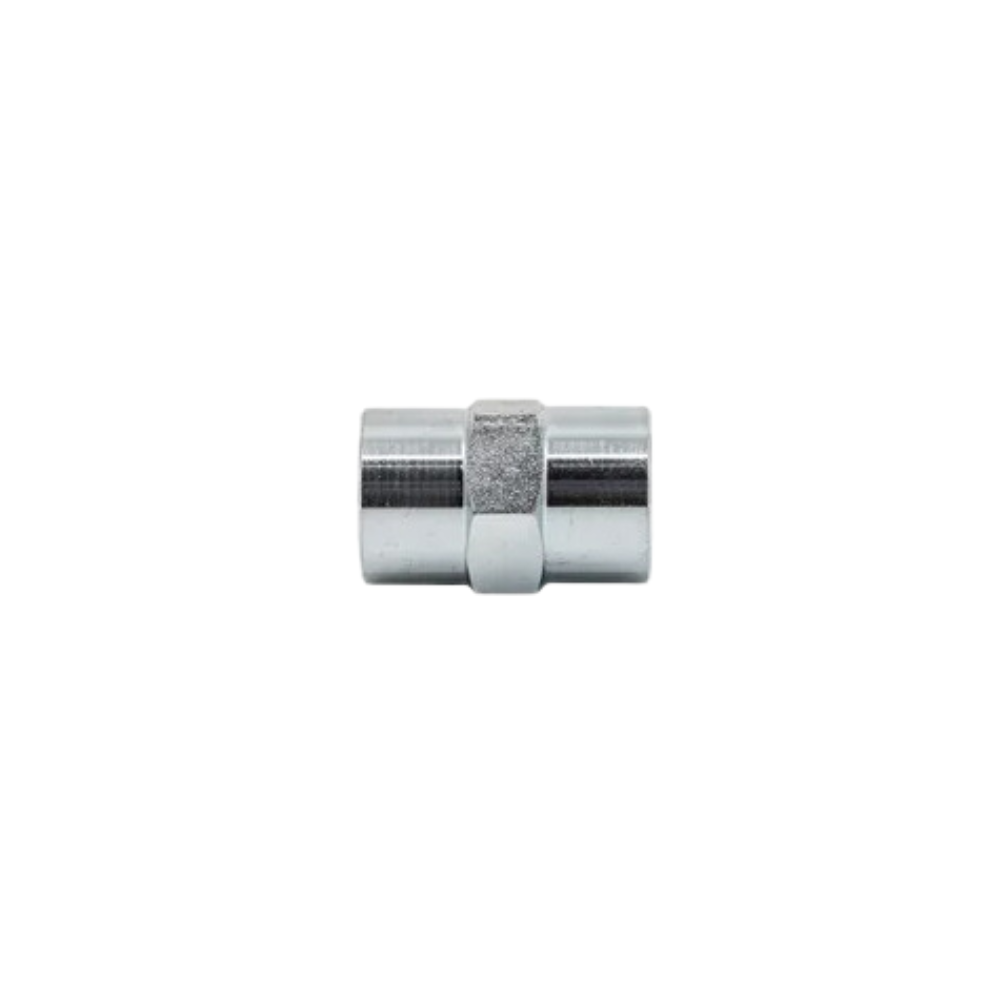

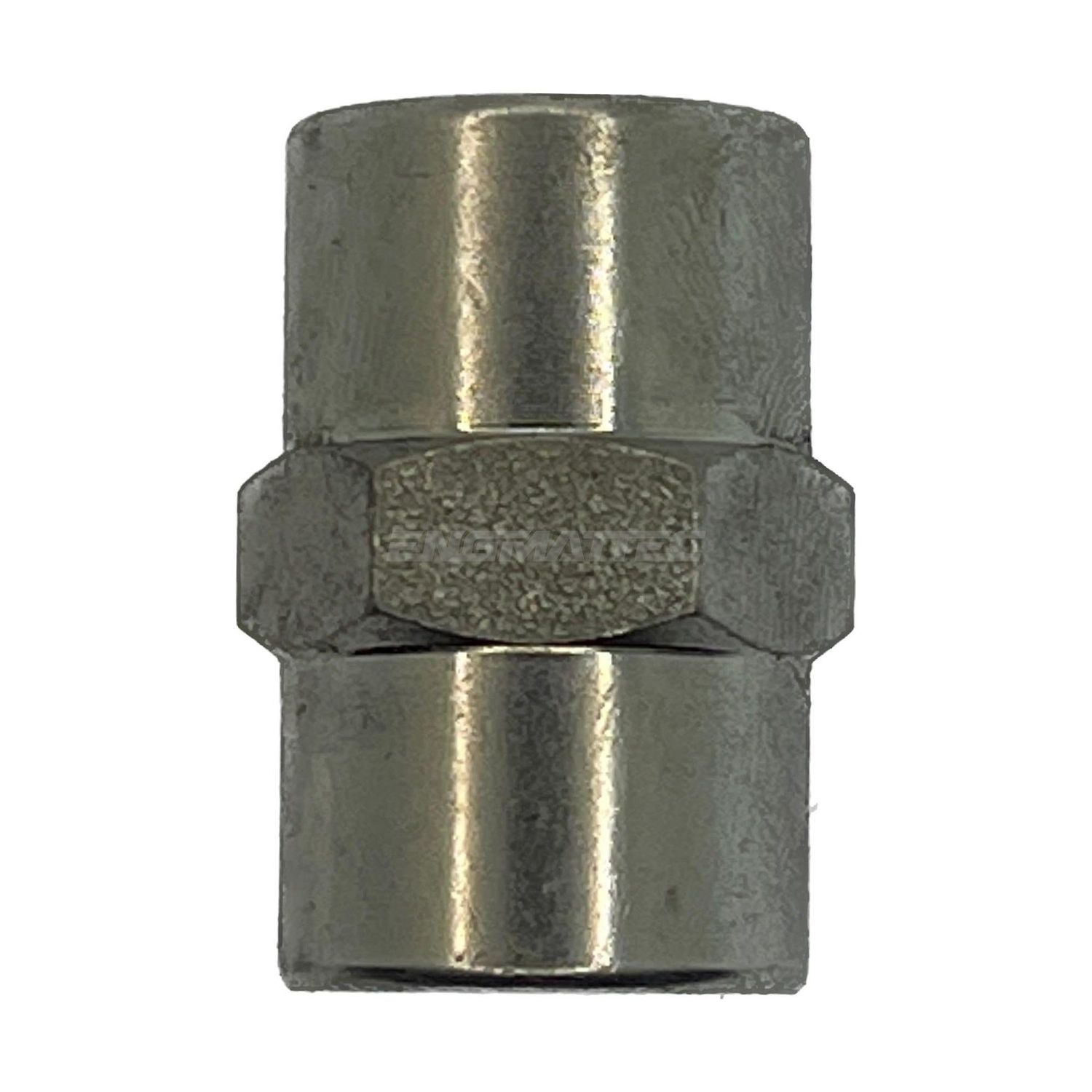

BSP Tapered Female x BSP Tapered Female Straight Socket

Tapered BSP female both ends. The plain socket for joining two BSPT male fittings, and the part most often used to extend a threaded run on Australian and British-built gear.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Tapered Female – BSPT to ISO 7 / BS 21. It seals on the thread interference and must be taped or sealed.

How to Choose

• Both ends seal on the thread of the male going in, so both males need sealant.
• BSPT is 55°. A 60° NPT male will start and then tear the thread out.
• Equal and unequal sizes are stocked, so measure both males.

Technicians Advice

Keep sealant tape back off the first two threads on each male and wind it the direction the thread turns. Tape started on the leading thread unravels going in, and the tail that ends up in a valve spool is a far longer day than a weeping socket.

Where You’ll Find It

• BSP Tapered Female – Female side of local pipework, adaptor blocks and gauge manifolds.

Cross-Reference

• BSP Tapered Female – BSPT to ISO 7 / BS 21, written Rc for female.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H1	Material	Finish
BTF-BTF-0202	1/8" BSPT	1/8" BSPT	20mm	14mm	Mild steel	Plated finish
BTF-BTF-0204	1/8" BSPT	1/4" BSPT	30mm	19mm	Mild steel	Plated finish
BTF-BTF-0206	1/8" BSPT	3/8" BSPT	30mm	22mm	Mild steel	Plated finish
BTF-BTF-0404	1/4" BSPT	1/4" BSPT	30mm	19mm	Mild steel	Plated finish
BTF-BTF-0406	1/4" BSPT	3/8" BSPT	30mm	22mm	Mild steel	Plated finish
BTF-BTF-0408	1/4" BSPT	1/2" BSPT	38mm	27mm	Mild steel	Plated finish
BTF-BTF-0606	3/8" BSPT	3/8" BSPT	30mm	22mm	Mild steel	Plated finish
BTF-BTF-0608	3/8" BSPT	1/2" BSPT	38mm	27mm	Mild steel	Plated finish
BTF-BTF-0806	3/8" BSPT	1/2" BSPT	38mm	27mm	Mild steel	Plated finish
BTF-BTF-0808	1/2" BSPT	1/2" BSPT	38mm	27mm	Mild steel	Plated finish
BTF-BTF-0812	1/2" BSPT	3/4" BSPT	42mm	36mm	Mild steel	Plated finish
BTF-BTF-1212	3/4" BSPT	3/4" BSPT	42mm	36mm	Mild steel	Plated finish
BTF-BTF-1216	3/4" BSPT	1" BSPT	50mm	41mm	Mild steel	Plated finish
BTF-BTF-1616	1" BSPT	1" BSPT	50mm	41mm	Mild steel	Plated finish
BTF-BTF-1620	1" BSPT	1.1/4" BSPT	55mm	50mm	Mild steel	Plated finish
BTF-BTF-2020	1.1/4" BSPT	1.1/4" BSPT	55mm	50mm	Mild steel	Plated finish
BTF-BTF-2424	1.1/2" BSPT	1.1/2" BSPT	55mm	55mm	Mild steel	Plated finish
BTF-BTF-3232	2" BSPT	2" BSPT	65mm	70mm	Mild steel	Plated finish

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
