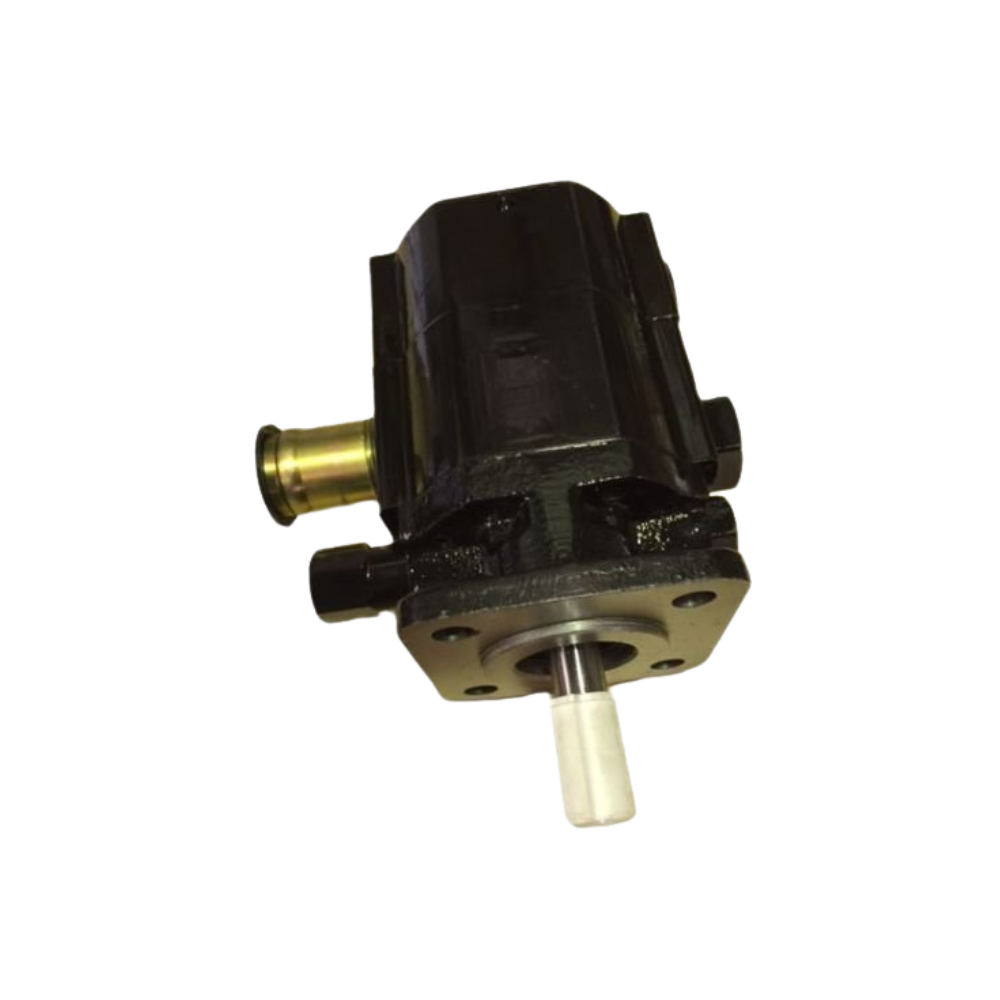

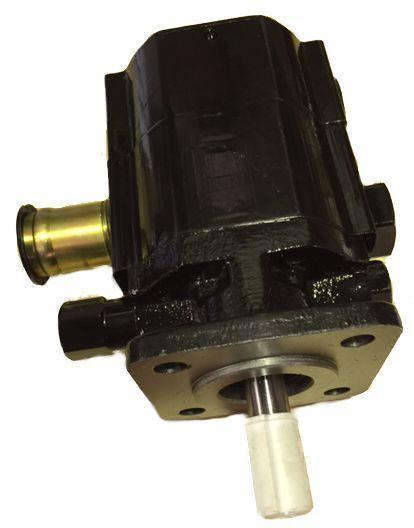

Hi-Lo Log Splitter Pump , 5Hp , 40 Lpm @ 3500Rpm

This is a high-quality professional, cast iron hydraulic log splitter pump. This pump is a Hi-Lo unit, which means it closes your blade quickly, then produces maximum PSI to split the wood. It is rated to 3600RPM max. This pump requires a minimum of 5 HP from your motor. It will do up to 3000psi pressure, which will give your Ram the most tonnage possible. Tonnage depends on the Bore of the ram you have. For example, a 4" bore ram will produce 16 tonnes @ 3000 psi, whilst a 5" bore ram will produce 26 tonnes @ 3000 psi
This Hi-Lo pump will produce 11.3 CC of oil per rpm which equates to 10 Gpm / 40 Lpm @ 3500rpm
The four bolt holes have 50.8mm(2") centers & the round 'spiggot' measures 45mm
We can supply an adaptor plate which will make this pump compatible with a Group 2 DIN mount for ease in joining to a bell housing/motor.
1" SUCTION BARB
1/2" BSP tapered pressure port
The shaft is a 1/2". We sell a 1/2" pump-side coupling.
