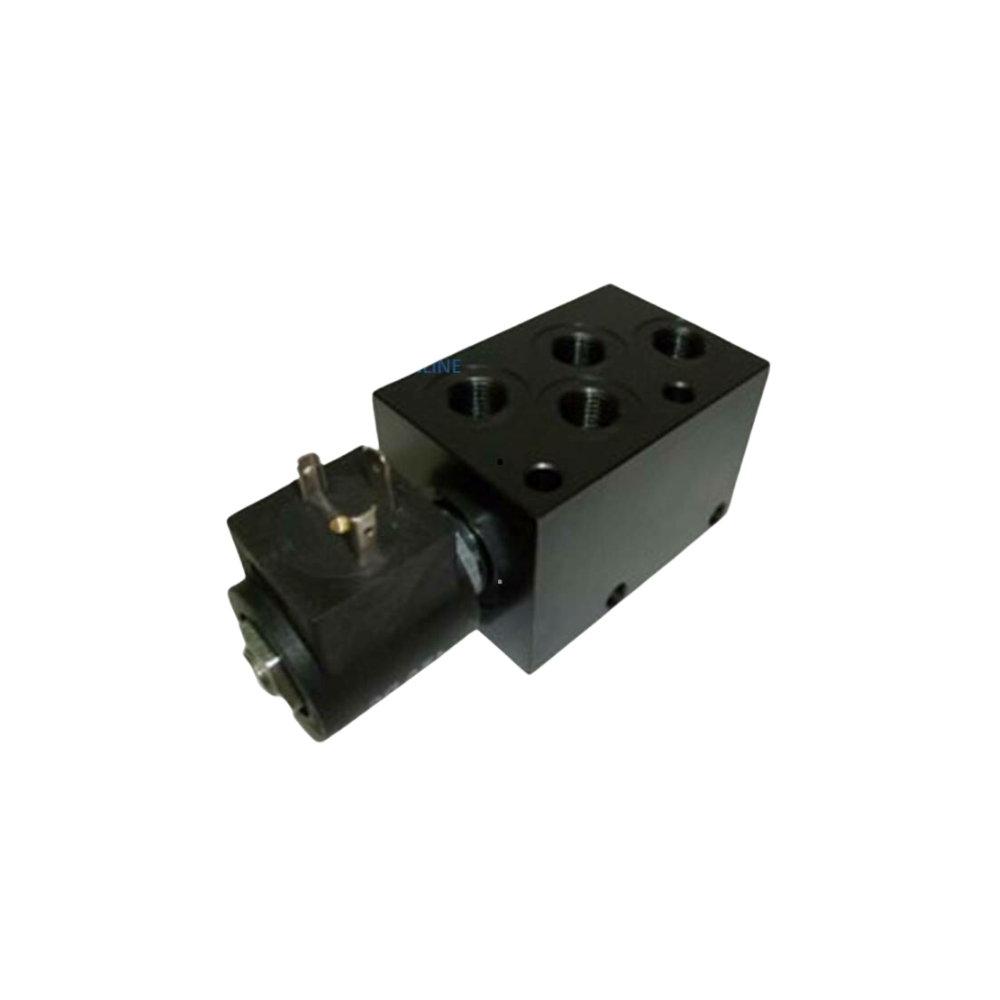

Quick Hitch Valves without pressure reduction

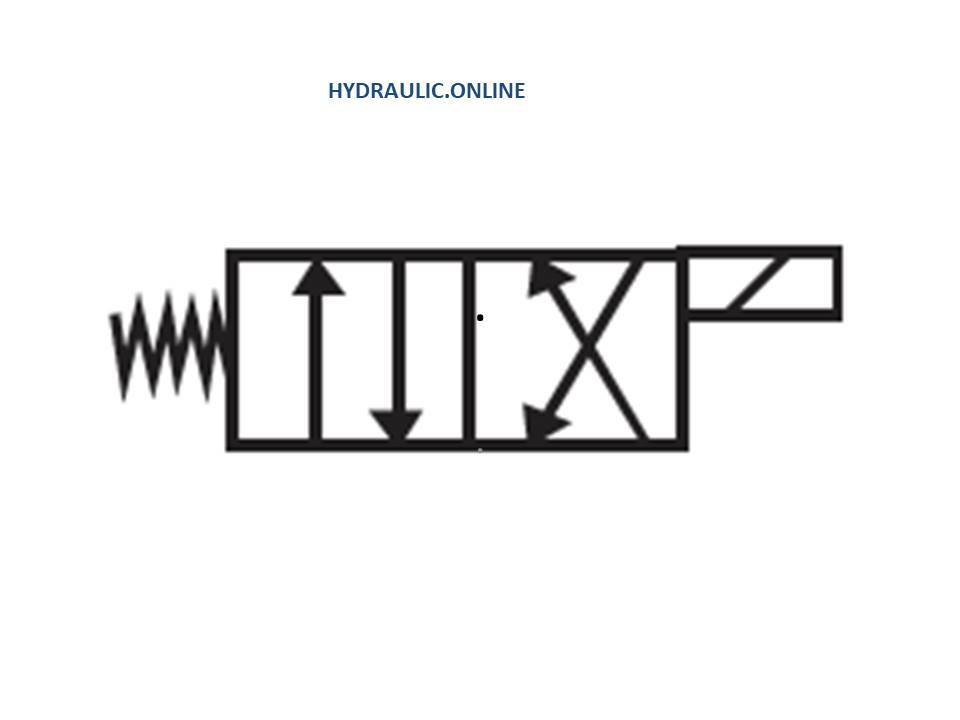

Quick hitch valves are for the shifting of excavator quick hitch cylinders. Clamp force is at full system pressure, whilst unclamp is also at full system pressure. The valve is open to pressure when unenergised, meaning your quick hitch ram will stay locked in clamping position. When energised, the flow reverses, closing the quick hitch ram , releasing attachment. We also have this valve with pressure reducing feature. This means less long term wear on ram seals.

Four Ports are 1/4" bspp

207 Bar max , 11 LPM
