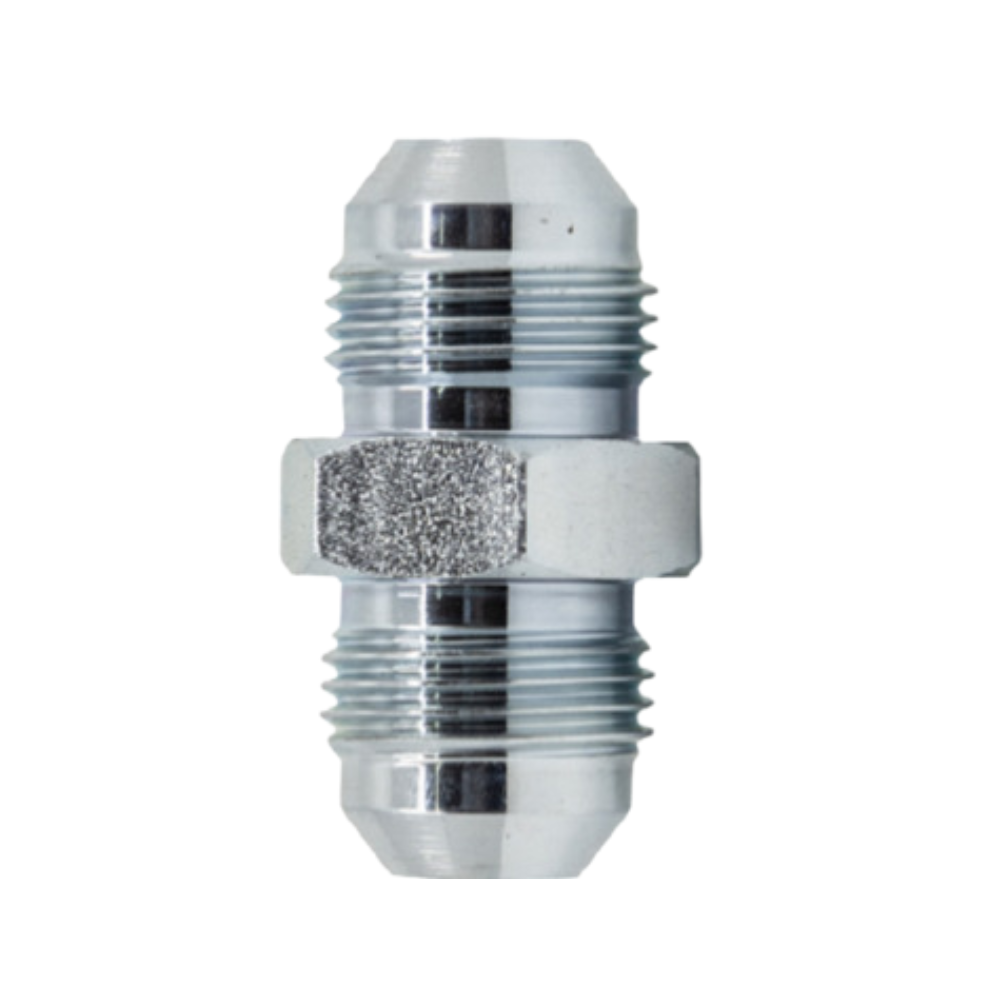

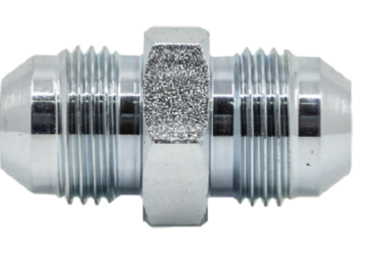

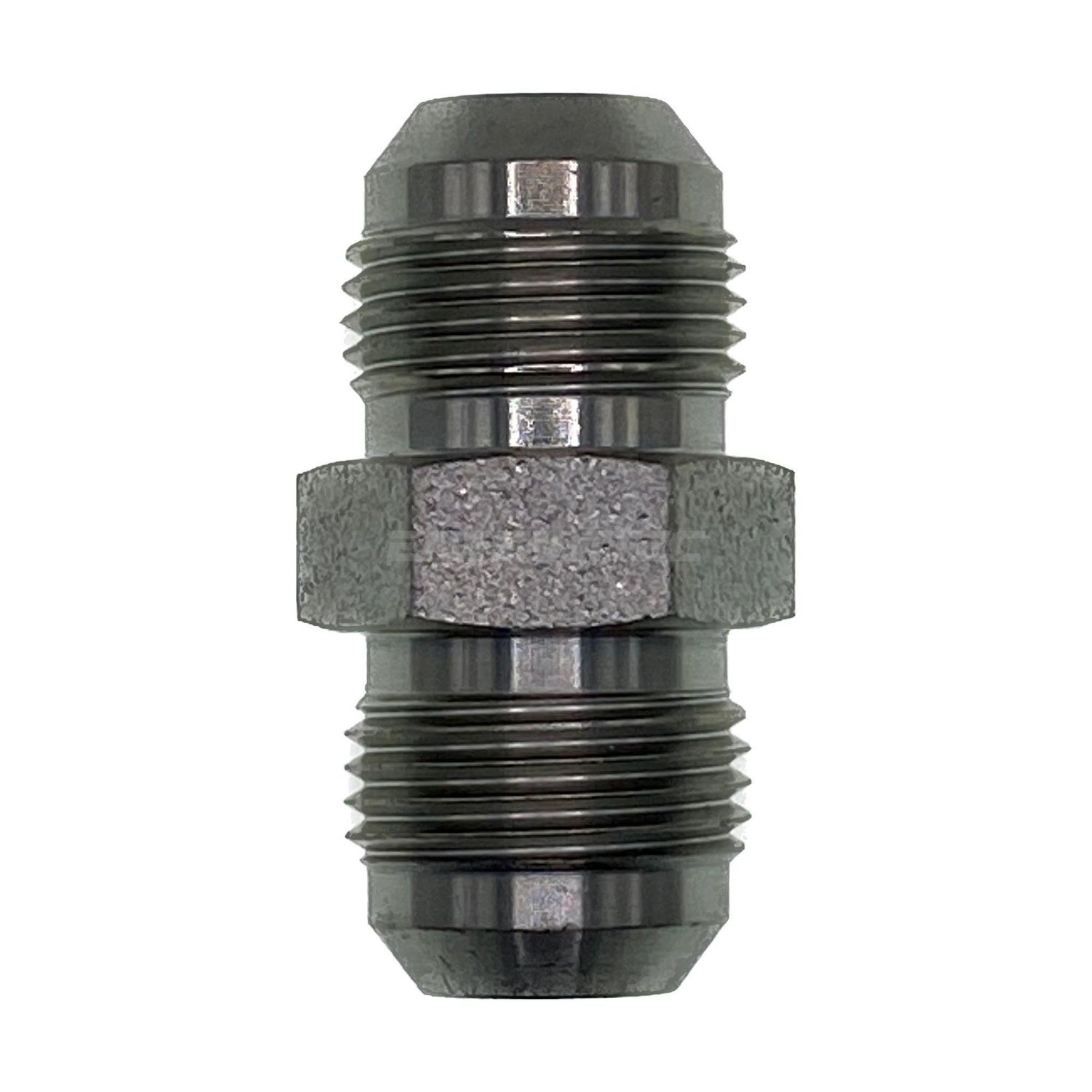

JIC 37° Male x JIC 37° Male Straight Adaptor

JIC 37° flare both ends. The workhorse joiner for connecting two JIC swivel hose ends back to back, extending a run, or stepping between JIC sizes without touching the hose.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.

How to Choose

• Equal and reducing sizes are stocked. Reducing through the nipple is neater than stacking a JIC bush on the end of a hose.
• JIC seals metal to metal on the 37° cone. No tape, no sealant, no O-ring. Anything on the thread only masks a poor seat.
• Watch for 45° flare mixed into the same machine. The two will engage but the seat contact is wrong and it will fret through.

Technicians Advice

Both cones need to be clean and unmarked. A JIC that has been nipped up with grit on the seat leaves a witness ring, and once that ring is there the joint will seep every time the machine warms up. Wipe both cones with a clean rag before you pull them together.

Where You’ll Find It

• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.

Cross-Reference

• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H1	Material	Finish
JIM-JIM-0606	3/8" JIC	3/8" JIC	31mm	11.1mm	Mild steel	Plated finish
JIM-JIM-0707	7/16" JIC	7/16" JIC	35mm	12.7mm	Mild steel	Plated finish
JIM-JIM-0708	7/16" JIC	1/2" JIC	35mm	14.3mm	Mild steel	Plated finish
JIM-JIM-0709	7/16" JIC	9/16" JIC	36mm	15.9mm	Mild steel	Plated finish
JIM-JIM-0712	7/16" JIC	3/4" JIC	38mm	20.6mm	Mild steel	Plated finish
JIM-JIM-0714	7/16" JIC	7/8" JIC	–	–	Mild steel	Plated finish
JIM-JIM-0808	1/2" JIC	1/2" JIC	35mm	14.3mm	Mild steel	Plated finish
JIM-JIM-0809	1/2" JIC	9/16" JIC	36mm	15.9mm	Mild steel	Plated finish
JIM-JIM-0909	9/16" JIC	9/16" JIC	36mm	15.9mm	Mild steel	Plated finish
JIM-JIM-0912	9/16" JIC	3/4" JIC	39mm	20.6mm	Mild steel	Plated finish
JIM-JIM-0914	9/16" JIC	7/8" JIC	43mm	23.8mm	Mild steel	Plated finish
JIM-JIM-1212	3/4" JIC	3/4" JIC	41mm	20.6mm	Mild steel	Plated finish
JIM-JIM-1214	3/4" JIC	7/8" JIC	45mm	23.8mm	Mild steel	Plated finish
JIM-JIM-1217	3/4" JIC	1.1/16" JIC	50mm	28.6mm	Mild steel	Plated finish
JIM-JIM-1414	7/8" JIC	7/8" JIC	48mm	23.8mm	Mild steel	Plated finish
JIM-JIM-1417	7/8" JIC	1.1/16" JIC	52mm	28.6mm	Mild steel	Plated finish
JIM-JIM-1717	1.1/16" JIC	1.1/16" JIC	55mm	28.6mm	Mild steel	Plated finish
JIM-JIM-1719	1.1/16" JIC	1.3/16" JIC	55mm	31.8mm	Mild steel	Plated finish
JIM-JIM-1721	1.1/16" JIC	1.5/16" JIC	56mm	34.9mm	Mild steel	Plated finish
JIM-JIM-1919	1.3/16" JIC	1.3/16" JIC	56mm	31.8mm	Mild steel	Plated finish
JIM-JIM-2121	1.5/16" JIC	1.5/16" JIC	57mm	34.9mm	Mild steel	Plated finish
JIM-JIM-2126	1.5/16" JIC	1.5/8" JIC	61mm	42.9mm	Mild steel	Plated finish
JIM-JIM-2626	1.5/8" JIC	1.5/8" JIC	62mm	42.9mm	Mild steel	Plated finish
JIM-JIM-2630	1.5/8" JIC	1.7/8" JIC	67mm	50.8mm	Mild steel	Plated finish
JIM-JIM-3030	1.7/8" JIC	1.7/8" JIC	70mm	50.8mm	Mild steel	Plated finish
JIM-JIM-0917	9/16" JIC	1.1/16" JIC	47mm	28.6mm	Mild steel	Plated finish
JIM-JIM-4040	2.1/2" JIC	2.1/2" JIC	86mm	66.7mm	Mild steel	Plated finish

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

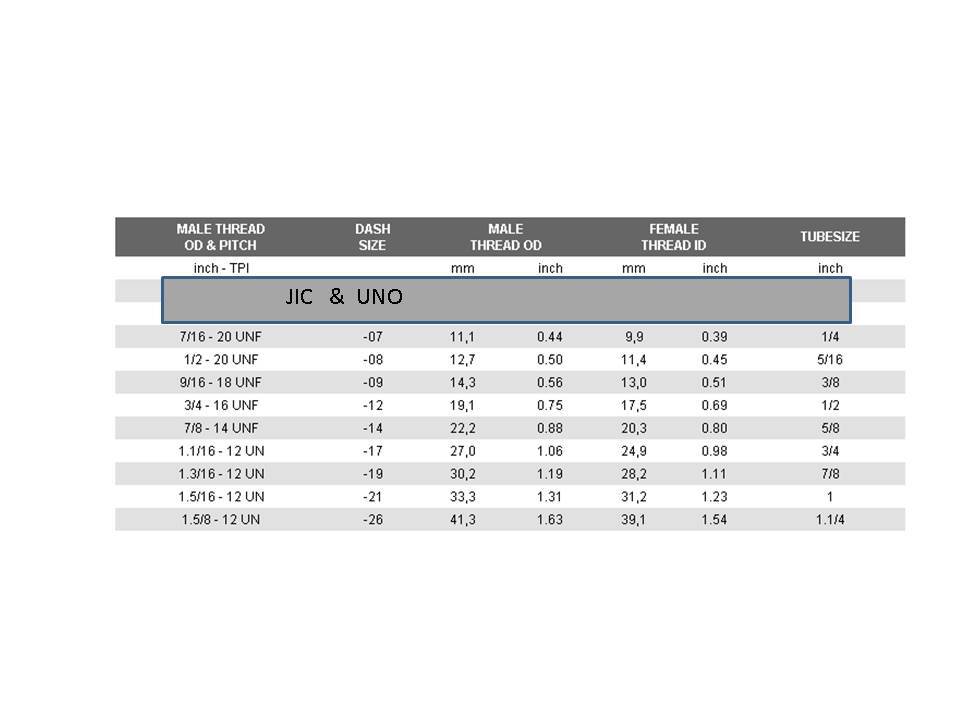

📄 Thread Identification Chart (PDF)
