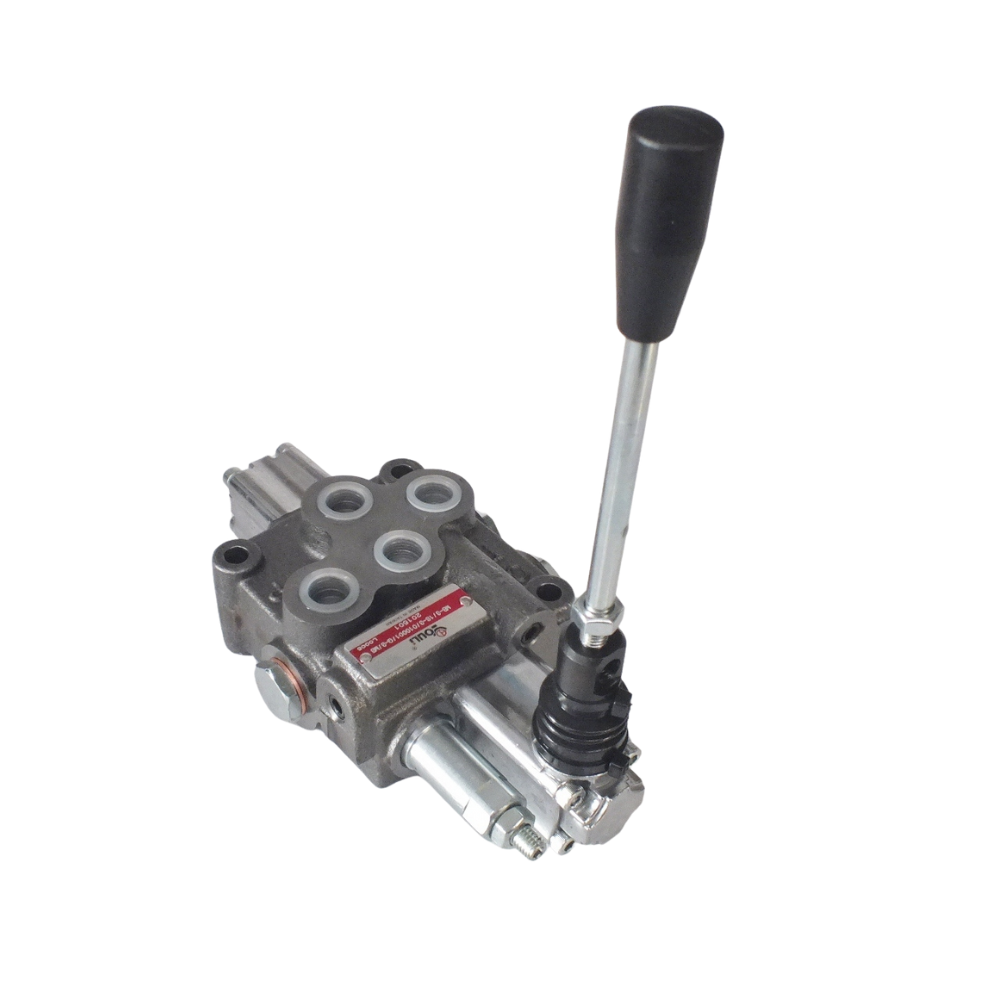

This is a brand-new high-quality valve, it is designed for log splitters, press brakes, Tilt Tray Trucks, and Cranes. Skip Bin Trucks, Front end Loaders, Backhoes, or any application where you need to control one individual function or cylinder.
These valves are regularly used in hydraulic circuits to divert the flow of high-pressure oil and are typically used to control the speed and movement of hydraulic cylinders or motors.
Specifications
Construction = Monoblock
Material of Construction = Steel
No of Spools = 1
Material of Construction = Case Hardened Steel
O-rings made of NBR (Buna-N®)
Max Flow Rate = 45 liters/min (12 Gallons per Minute)
Relief valve = 120 Bar (1800 PSI) - simple to adjust, just an Allan key
Spool Type = Cylinder. Motor Spools & single acting spools also available Please message us
Spool Movement = Lever action, Spring Return to Centre. Detent Kits are also available at $40 each
Built-in Relief Valve = Adjustable (factory set at 1800 PSI)
Ports Sizes
Pressure and Tank Port 1/2" BSPP
A & B Ports 3/8" BSPP
Operating temperature range: -20 °C to + 80°C
Dimensions = L x W x H = 200 x 120 x 55 mm
Weight 3 KG
This a High-Quality Valve and has many outstanding features, including.
built-in adjustable relief valve
high performance,
high efficiency,
small volume,
mass flow,
leak resistance.
In addition to compact size, these control valves have fixed and large pull rods to control direction,
Various control options, manual, automatic, and or remote control methods are also available.
Motor Spool
Detent kit no spring return
Detent kit with spring return
Pneumatic spool control,
Hydraulic Control
Electric-solenoid control
Joystick cable control.
Features
Compact construction.
Low-pressure drop.

Please send us a message for more information.
Email: sales@hydraulic.online

Phone: 07 5563 1982
Hours: 8 am to 4 pm Monday - Friday, excluding public holidays
If you have any questions please don’t hesitate to contact us
Best regards,
Hydraulic.Online

Long service life.
High efficiency.
Choice of various ports and circuit valves.
Spring return.
The high-accuracy spool is hardened for long-term accuracy.
Sub-plate mounting.
Handle shift operation.
