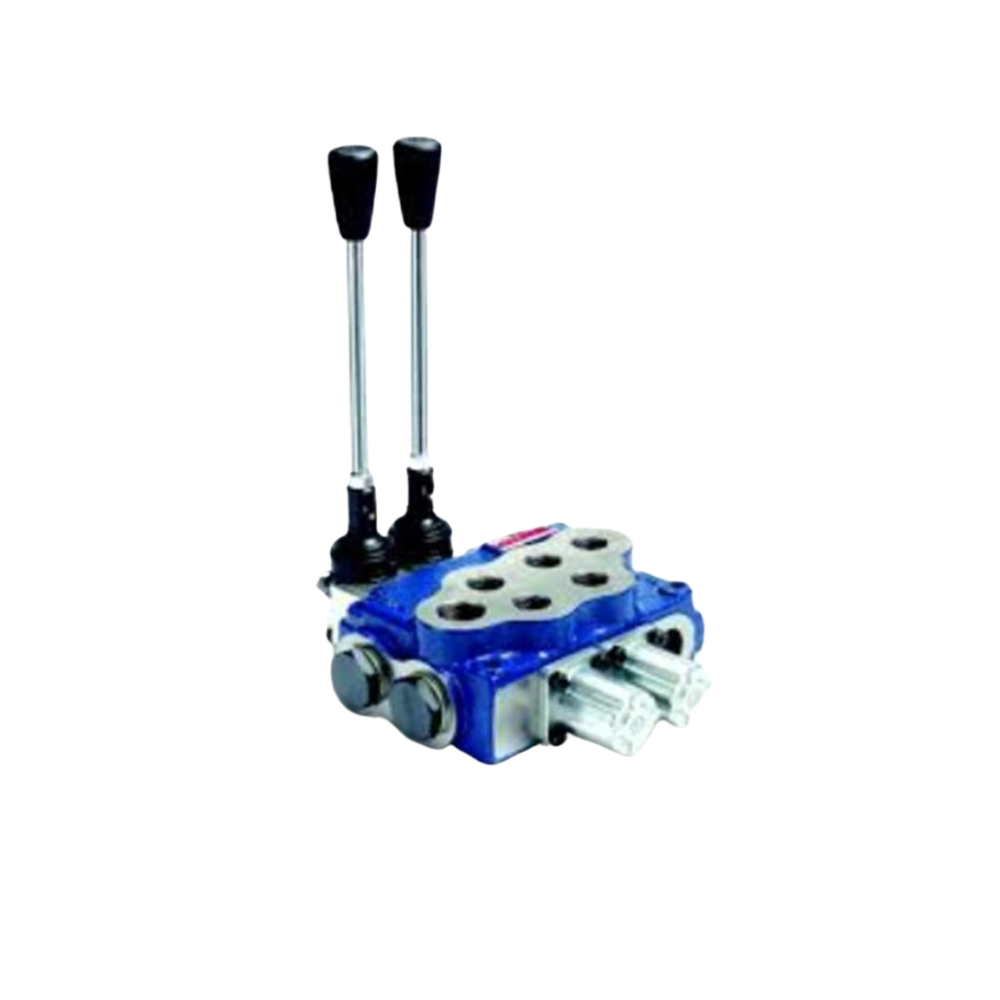

This is a brand-new high-quality valve, it is designed for Front end Loaders, tractors, or any application where you need to control one function or cylinder. It has a 'float' function on the second spool with detent, which means your Blade will 'skim' the ground. The other spool is a cylinder spool for an alternate function. It is a 'four' position lever, up, down, center plus all the way down is detent 'float'. The oil is open to the tank in this position allowing your blade to rise & fall freely with the contours of the ground.
We have the choice of 1 cylinder spool with 1 float spool or the option of both float spools. Please see the options when making your purchase
Specifications
Construction = Monoblock
Material of Construction = Steel
No of Spools = 2
Material of Construction = Case Hardened Steel
O-rings made of NBR (Buna-N®)
Max Flow Rate = 45 liters/min (12 Gallons per Minute)
Max Working Pressure = 315 Bar (4725 PSI)
Built-in Relief Valve = Adjustable (factory set at 1800 PSI)
Ports Sizes
Pressure and Tank Port 1/2" BSPP
A & B Ports 3/8" BSPP
Operating temperature range: -20 °C to + 80°C
Dimensions = L x W x H = 200 x 120 x 55 mm
Weight 3 KG
This a High-Quality Valve and has many outstanding features, including.
built-in adjustable relief valve
high performance,
high efficiency,
small volume,
mass flow,
leak resistance.
In addition to compact size, these control valves have fixed and large pull rods to control direction,
Various control options, manual, automatic, and or remote control methods are also available.
Motor Spool
Detent kit no spring return
Detent kit with spring return
Pneumatic spool control,
Hydraulic Control
Electric-solenoid control
Joystick cable control.
Features
Compact construction.
Low-pressure drop.
Long service life.
High efficiency.
Choice of various ports and circuit valves.
Spring return.
the spool is hardened for long-term accuracy.
Sub-plate mounting.
Handle shift operation.
