Hydraulic Hose Fitting Metric (L) Light Female Straight
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/Two piece Crimp-on Hosetails in Straight, 45° & 90°
SKU HTB-MLF-0412
AU$4.40
On Sale
was AU$8.40 Save 48%
Size
Please choose
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

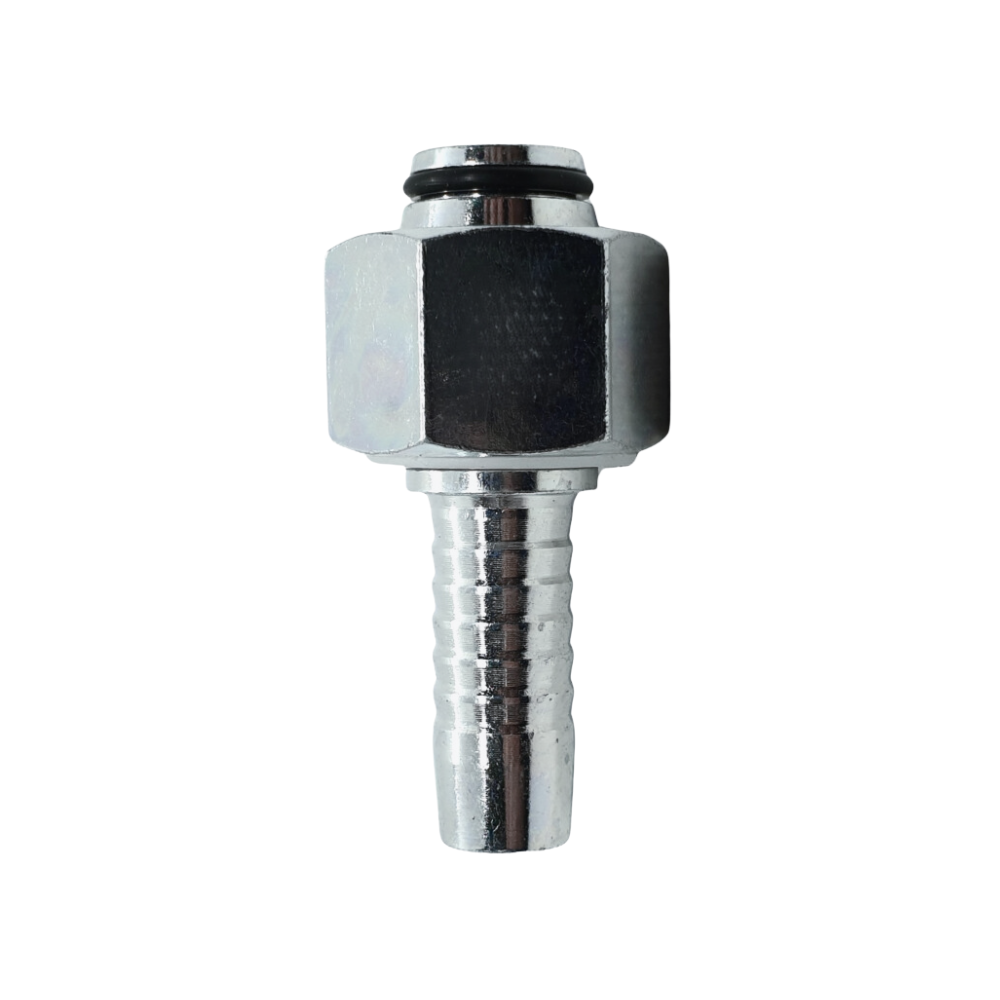

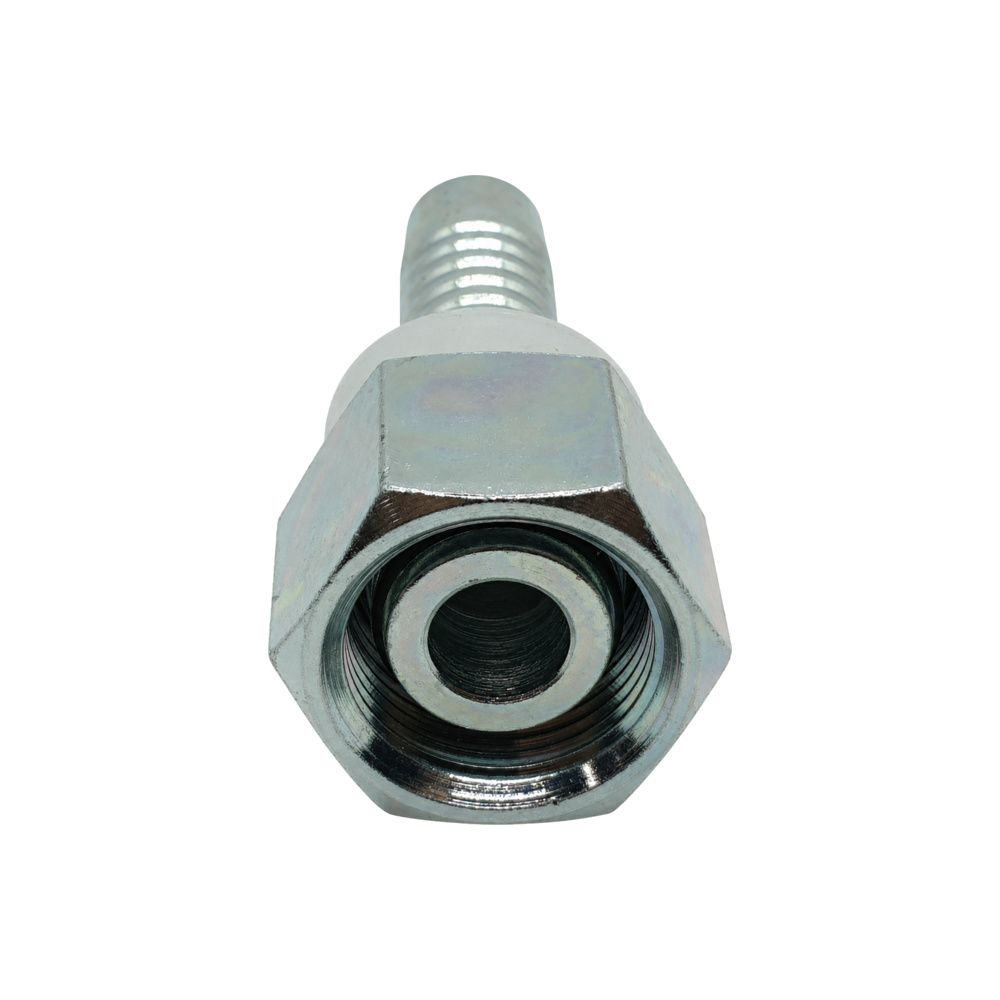

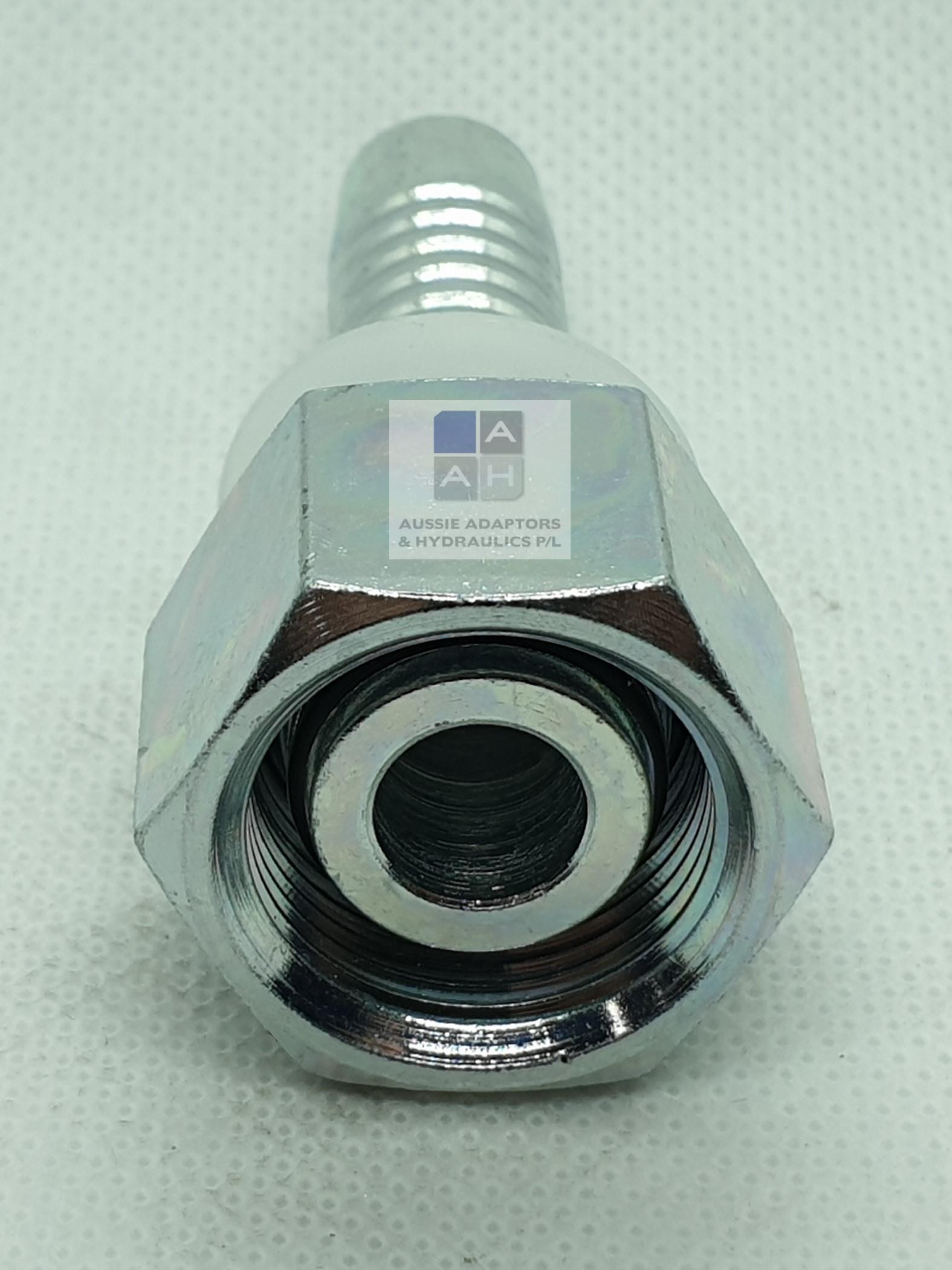

Hydraulic Hose Fitting Metric (L) Light Female Straight
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/Two piece Crimp-on Hosetails in Straight, 45° & 90°
Product Details
Brand: Hydraulic.Online
Weight: 0.10 kg
Please make sure you order your ONE WIRE or TWO WIRE Ferrules/Shells by clicking on the links!
Two Piece Hydraulic Hose Fittings with Metric "Light" (L) Female Swivel Nuts for one and two wire SAE 100R1 and 100R2 hydraulic hose for pressures to 4,000 psi.
Metric Light or (L) type hydraulic fittings are widely used in various types of machines, especially machines manufactured in Europe, Asia, as well as some countries or regions that use the metric system.
Identifying features and characteristics of Light (L) Metric Female Hydraulic Hose Fittings
- Smaller Nut and thread Diameters: as these fittings are typically used for lower pressure applications.
- Thinner tube wall thickness: Suitable for less demanding hydraulic systems.
- Common applications: Smaller machinery, agricultural equipment, and low-pressure hydraulic systems.
Important Points to Remember:
Interchangeability:
Light (L) and Heavy (S) metric fittings are not interchangeable.
Using the wrong type can lead to leaks and potential system failure.
Pressure Rating: Light metric fittings are generally rated for lower Hydraulic pressures less than less than or equal to 3,000 psi compared to Heavy metric fittings.
Tube Size: The tube size used with Light metric fittings is similar or larger in diameter than Heavy metric and has a thinner wall thickness than the tube used with Heavy metric fittings.
Application: The choice between light (L) and heavy (S) metric fittings depends on the specific application and the required pressure and flow rate.
Some common types of hydraulic machinery that utilise metric fittings:
Construction Equipment
Excavators: Both small and large excavators, including models from brands like Caterpillar, Hitachi, Komatsu, Liebherr and Volvo.
Bulldozers: Caterpillar, Komatsu, John Deere, as well as other major manufacturers.
Wheel Loaders: Caterpillar, Komatsu, Volvo, and others.
Forklifts: Many forklift manufacturers use metric fittings, especially those from European and Asian brands such as Linde and Jungheinrich
Concrete Pumping Equipment:
- Putzmeister: A German company known for their innovative concrete pump designs.
- Schwing: Another German company that offers a wide range of concrete pumps and mixers.
- Cifa: An Italian company that specializes in concrete pumping equipment, including truck-mounted pumps and stationary pumps.
- Liebherr: A German company that offers a range of construction equipment, including concrete pumps.
Agricultural Equipment
Tractors: Case IH, John Deere, Kuhn, New Holland, and (SDF) Same Deutz-Fahr plus other global brands.
Combine Harvesters: Claas, John Deere, New Holland, and others.
Telehandlers: Manitou, JCB, Merlo, and other manufacturers.
Industrial Machinery
Injection Molding Machines: Many brands, especially those from European and Asian manufacturers.
Press Brakes: Amada, Trumpf, and other manufacturers.
CNC Machines: Many CNC machine tool manufacturers use metric fittings.
Mobile Equipment
Truck Mounted Cranes:
Liebherr: Known for their high-quality and innovative crane designs.
Tadano: A Japanese company with a strong presence in Europe, offering a wide range of truck-mounted cranes.
Palfinger: An Austrian company that specializes in hydraulic lifting solutions, including truck-mounted cranes.
HMF: A Danish company known for its reliable and efficient truck-mounted cranes.
PM: A German company that offers a range of truck-mounted cranes, particularly for smaller and medium-sized applications.
Trucks and Buses: Many commercial vehicles use metric fittings, especially those manufactured outside of North America.
When working on hydraulic machinery, it's crucial to identify the correct type of fittings to ensure proper installation and prevent leaks.
Always consult the machine's service manual or consult with a hydraulic specialist to determine the correct fittings for your specific equipment.
