Motorhome Remote Controlled Hydraulic Stabiliser Levelling Valve 4 functions

Name: Motor Home Hydraulic Stabiliser Valve & Remote Control Kit
Brand: hydraulic.online
SKU: 10144
Price: 1530.0 AUD
Availability: InStock

Store/Remote Controls Wireless Push Button Multi Channel Systems

SKU 10144

AU$1 530.00

🔥 EOFY SALE!

was ~~AU$1 850.00~~ Save 17%

In stock: 1 available

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Motorhome Remote Controlled Hydraulic Stabiliser Levelling Valve 4 functions

Store/Remote Controls Wireless Push Button Multi Channel Systems

Product Details

Brand: hydraulic.online

Weight: 20.00 kg

Industrial or Mobile Remote Controled Hydraulic Valve for four separate fuctions with 4 remote control air actuators and 4 manual lever overide.

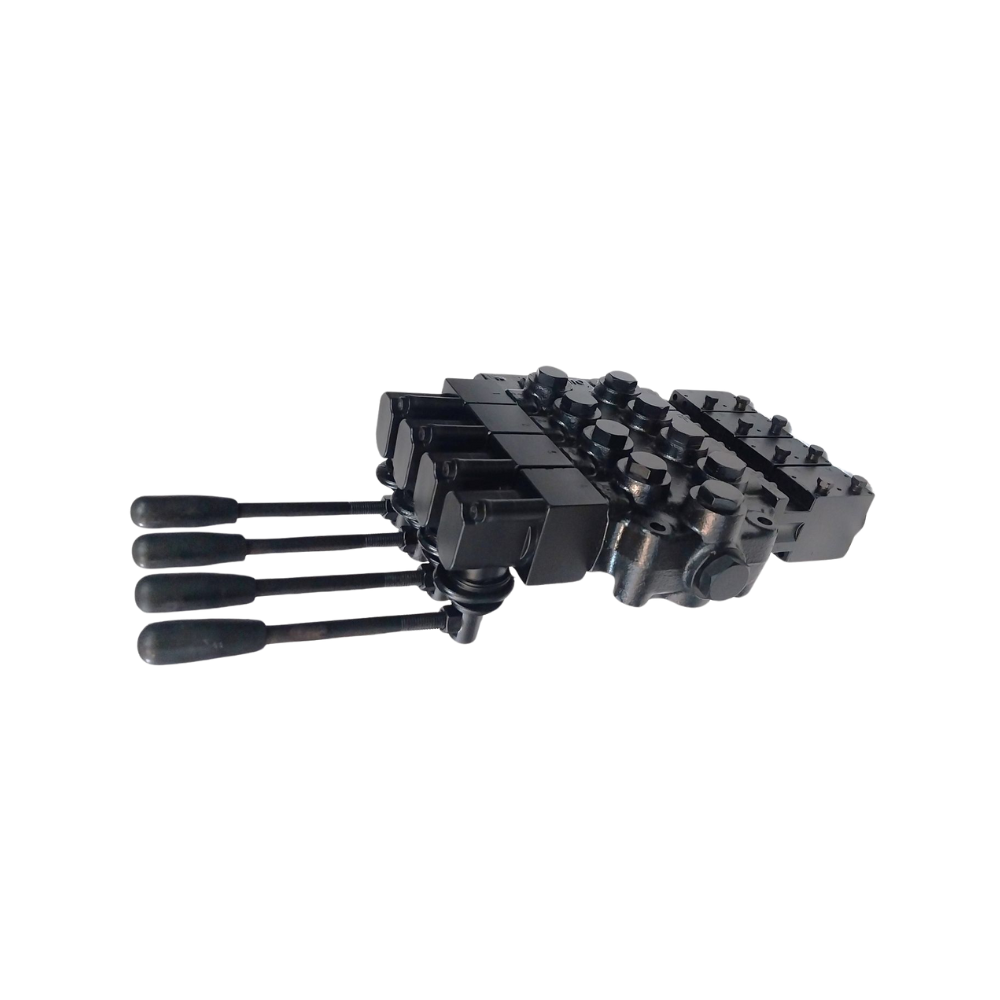

Kit includes (fully refurbished) Oilpath OP 20, four (4) spool valve with four (4) remote control air actuators.
The OP20 Flow Control Valve is pressure rated to 250 bar (3,600 psi) and oil flows upto 120 Lt/Min.
(Please note the Valve is refurbished and comes with 12 MONTH WARRANTY)

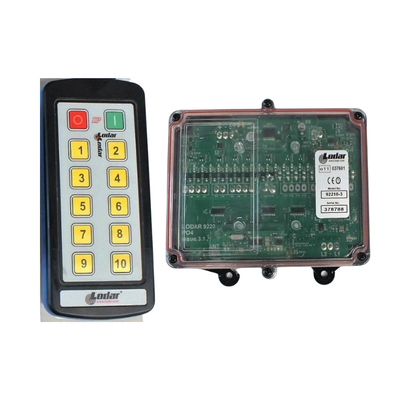

Also Included is a new 8 button Radio Remote Control System.

The new remote control system: uses an Australian Designed Radio Remote control with a range of up to 150m. It has been tested and found to comply with the limits for a Class [B] digital device, pursuant to the Australian/New Zealand standard AS/NZS 4268.

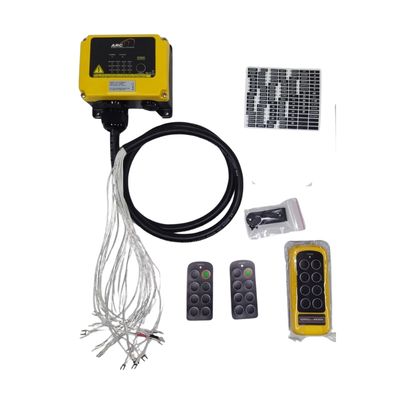

The remote control kit comes with the following components

8 button hand help radio remote transmitter
a vehicle mounted receiver unit
an compressed air filter regulator water separator and lubricator
air push fit fittings and silencers,
airline

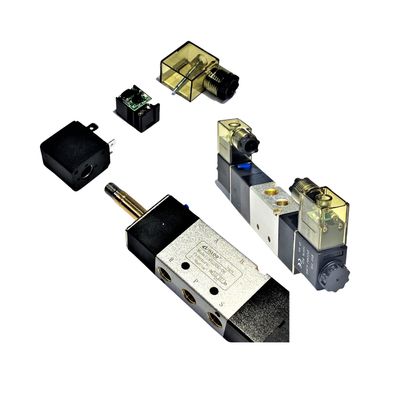

12v or 24-volt pneumatic solenoids
A fitting diagram
Only basic tool & electrical knowledge is required for DIY installation.

This remote control kit will improve the efficiency and speed as well as the safety of your Vehicle Stability Operations.

The Hydraulic Valve has 4 levers (8 Functions) with Radio Remote Control of all 8 functions,

1 & 2 Front Right Stabiliser Up and Down,
3 & 4 Front Left Stabiliser Up and Down
5 & 6 Rear Right Stabiliser Up and Down
7 & 8 Rear Left Stabiliser Up and Down
All 8 functions have manual override levers.

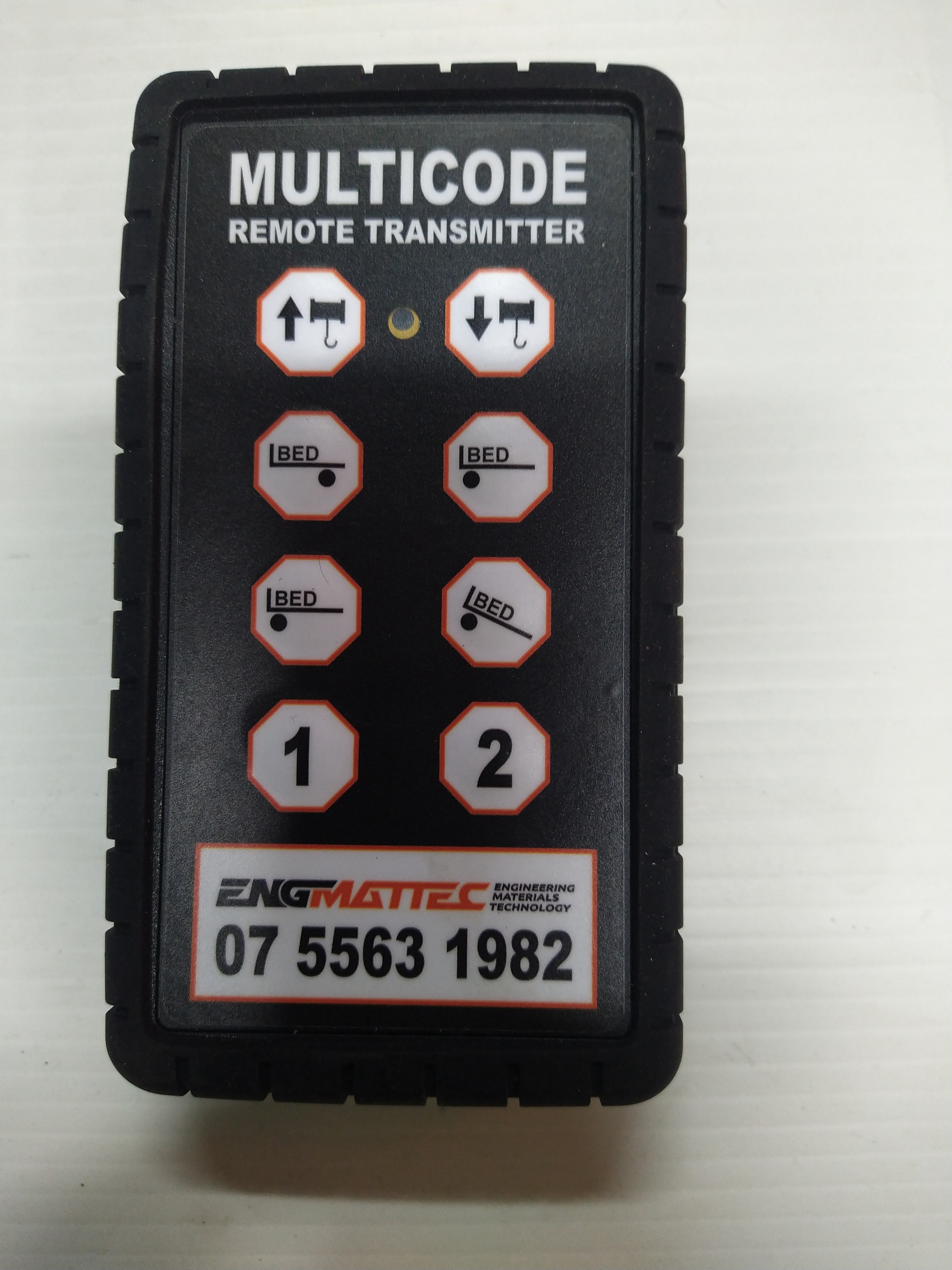

The hand held 8 Button Radio Remote Transmitter has a range of up to 150 meters.

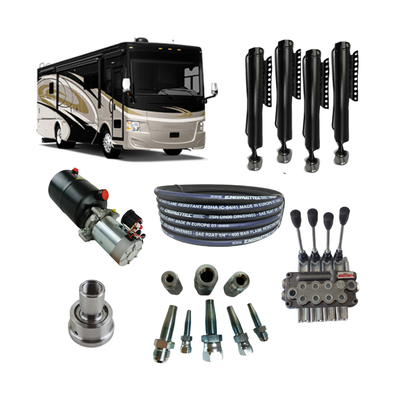

Looking for Stabilisers or a Levelling KIT Click Here

Both the vehicle mounted Receiver and hand held Transmitter are Au/NZ Certified.

Please watch this 2 minute video of us taking a standard 3 spool Hydraulic valve and fitting it with Pneumatic Actuators that will receive the remote signal from the remote control units.

Wired up and connected to 100 PSI of compressed the end result

Designed specifically for Motor Homes but can be modified to work on any Mobile of Stationary Hydraulic Equipment, including Drilling and Piling rigs, farming and excavation equipment. Backhoes or any application where you need to control 4 individual cylinders.

The remote unit simply needs power, 24 volt DC , & basic wiring to the valve solenoids (wiring diagram provided).

The hydraulic valve will require clean dry compressed air from your truck's air supply for the pneumatic solenoids and spool actuators. Solenoids come complete with push fit air fittings and silencers.

The 8 button remote comes with a transmitter and a receiver.

Levers are still attached for convenient use. This valve comes standard with 4 cylinder spools, which means when the lever/or button are released, the cylinder will stop in place.

These valves are regularly used in hydraulic circuits to divert the flow of high pressure oil and are typically used to control the speed and movement of hydraulic cylinders or motors.

Specifications

Construction = Monoblock
Material of Construction = Steel
No of Spools = 4
No of air/ solenoid actuated spools = 4
Air push fits = 4mm
Soopl Material of Construction = Case Hardened Steel
O-rings made of NBR (Buna-N®)
Max Flow Rate = 120 liters/min (30 Gallons per Minute)
Max Working Pressure = 250 Bar (3,600 PSI)
Spool Types = Cylinder
Spool Movement = Lever action, Spring Return to Center.
Plus remotely controlled Compressed air Actuators
Built in Relief Valve = Adjustable (factory set at 175 bar 2500 PSI)

Ports Sizes

Pressure Port 7/8" ONO
Cylinder Ports 7/8" ONO
Tank Port 7/8" ONO
Power beyond port (Not Applicable) on this unit .
Operating temperature range: -20 °C to + 80°C
Dimensions = L x W x H = 350 x 300 x 130 mm (+ 300mm with levers installed in L or H)
Weight 15 KG
Detent Kits also available at $60 each
Power beyond plug $23

Need More Information?

Please call Australia

+61 07 5563 1982

or send us a an email at sales@mhfgc.com.au

For different spool configurations, spool numbers and costings.

Many types of adapters threads, hydraulic hose and field fit hose fittings available please see our other listings

This a High Quality Valve and has many outstanding features, including.

built in adjustable relief valve
high performance,
high efficiency,
small volume,
mass flow,
leak resistance.

Features

Compact construction.
Low pressure drop.
Long service life.
High efficiency.
Choice of various ports and circuit valves.
High accuracy spool is hardened for long term accuracy.
Sub-plate mounting.
Handle shift operation.

Please note*

These valves require a separate "Power Beyond" sleeve to operate a valve downstream.

Detent is when a you push/pull a lever, it stays forward/back at that position until you move it back to the centre.

Installation ; As per the listed photos, there are a choice of two pressure ports "P" (only use one),
two "T" Tank return ports and
on some models there is also there is a "C" port. This "C" port is for the: Power Beyond function.
This allows another valve to run pressure from this C port downstream if necessary.
(must be a lower volume though).
A & B ports run to your cylinders or other functions.
