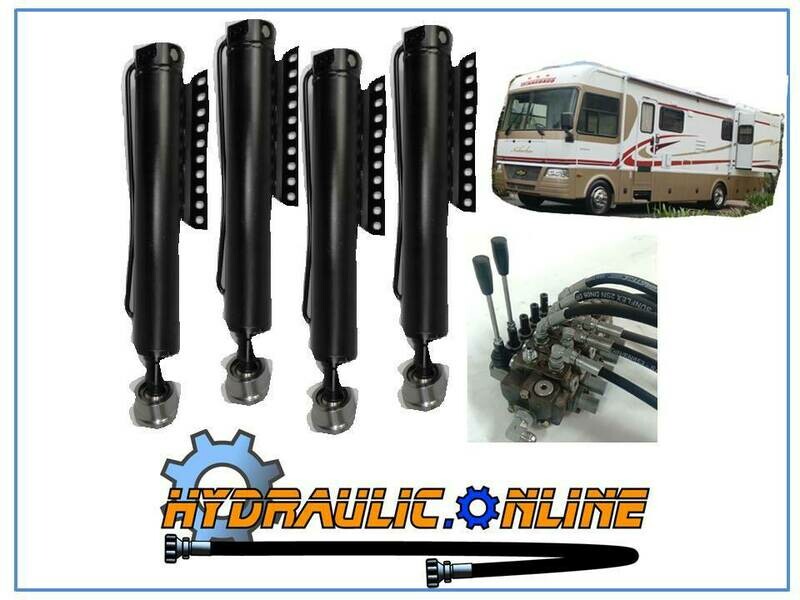

Motorhome Hydraulic Stabilising and Levelling kit with durable Hydraulic components.
Control the actions of four (4) powerful and Heavy Duty Double Acting Hydraulic Cylinders to level and stabilise Motor Homes, Large Caravans and Converted Buses.

With a stroke of fourteen inches (16") (other stroke lengths available) Each of these Four (4) Australian made Cylinders can generate 6.6 tons of lifting power (24 Tons total weight) and will comfortably and safely Level and Stabilise your motor home once you have reached your next destination.

These are purpose made & have a large and solid 2" Rod: size to minimise 'side load' from bending the ram.

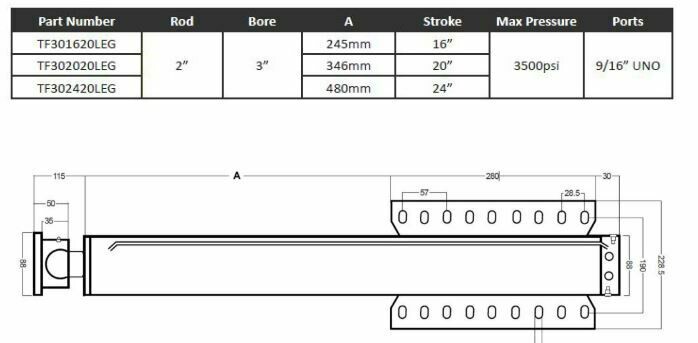

To work out lengths, look at the dimensions below.

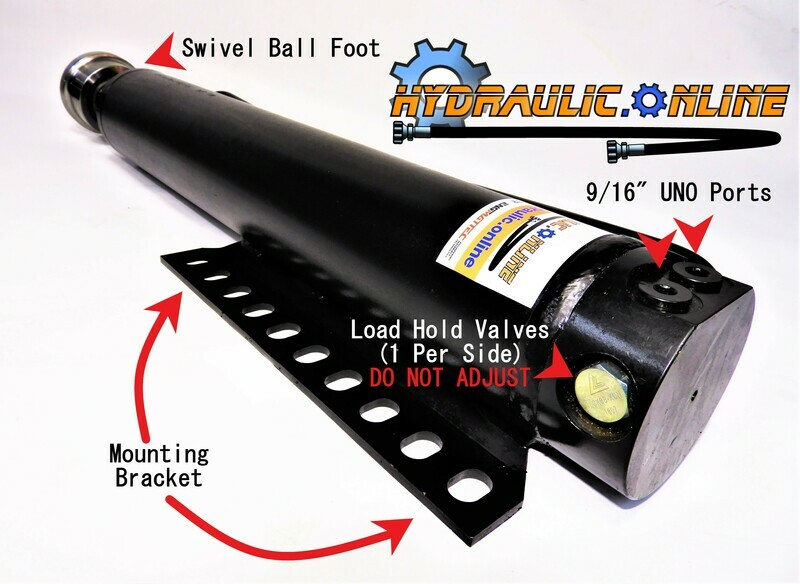

Each Cylinder is fitted with a dual Pilot operated check type load hold valve that will prevent any overnight creeping or dropping.

This is also an important safety item, in case a hydraulic hose is ever ripped out or damaged. The legs can not drop.

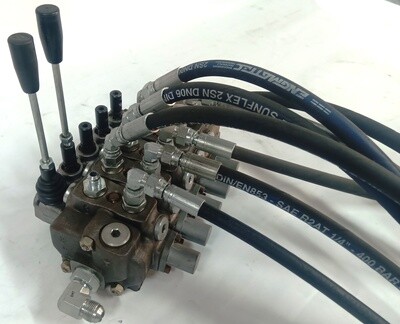

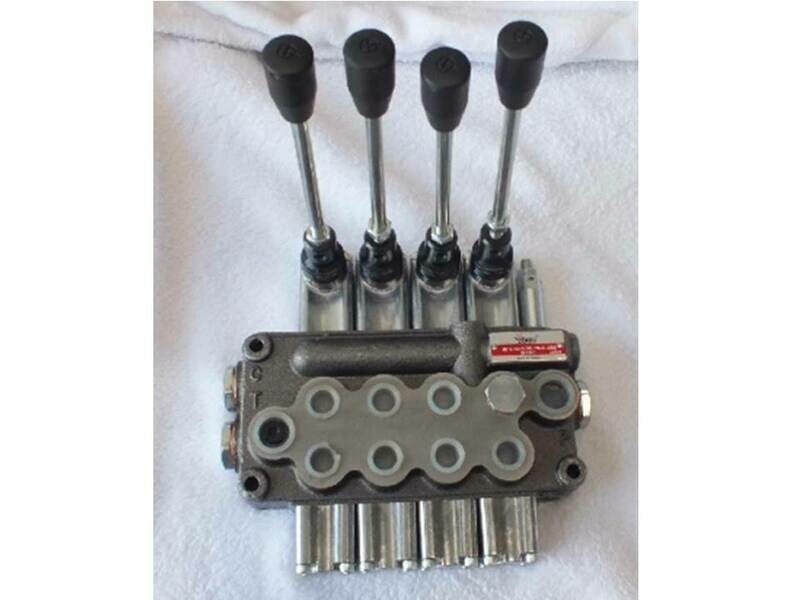

With a total lifting capacity 26.4 tonnes, this kit utilises your choice of 12 or 24 V DC Hydraulic power pack to supply a four spool monoblock flow control valve that individually controls the extend and retract action of each cylinder. Please note, the valve with hoses attached in the photo is just an indication for hosing. The valve supplied is in last photo. Handles are able to be rotated 90° if needed.

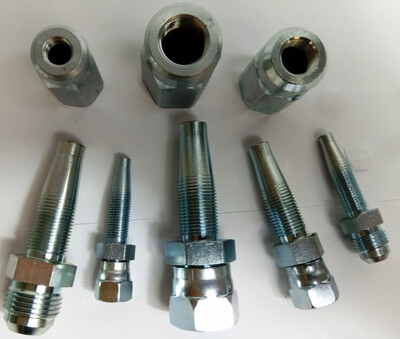

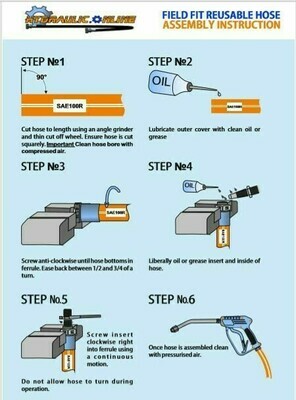

We will supply all hydraulic adapters to fit hardware ports, hose & field fit reusable hose tails. You are able to cut hose on-site to lengths required, & fit hydraulic hose tails using a vice & spanner.

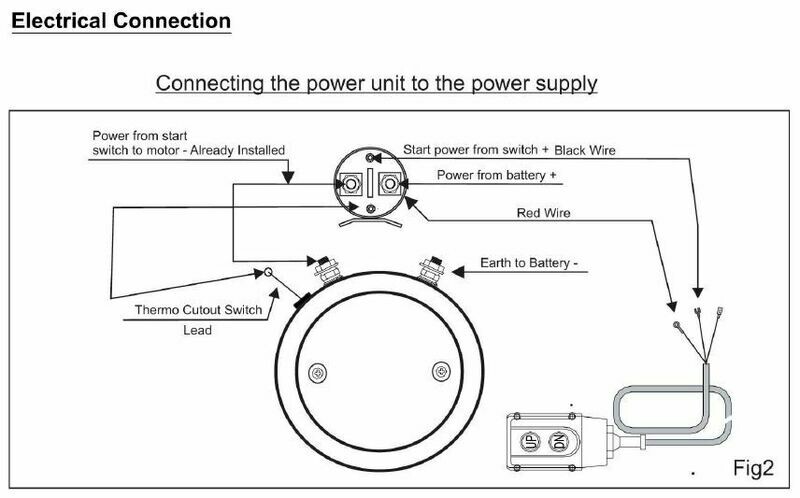

You will need to fit a power switch for the power pack so that it only runs when operating the valve to control the legs (to prevent exceeding the duty cycle).

Remote Control options also available at additional cost Please note the control valve will require additional compressed air actuators

Click here for a Radio Remote Controlled KIT with 4 Function Hydraulic Valve

Click here to view options for Radio Remote Control Systems

Bonus: Information you should be aware of.

Do you want to know how to maximise your Motorhome or your Recreational Vehicle's (RV's) Security? The link to the article below has four (4) great tips on how to do this.

4 Great Tips on How to Maximize your Recreational Vehicle's Security

Get Trackers for your Motorhome, Rental Equipment or Caravan Here

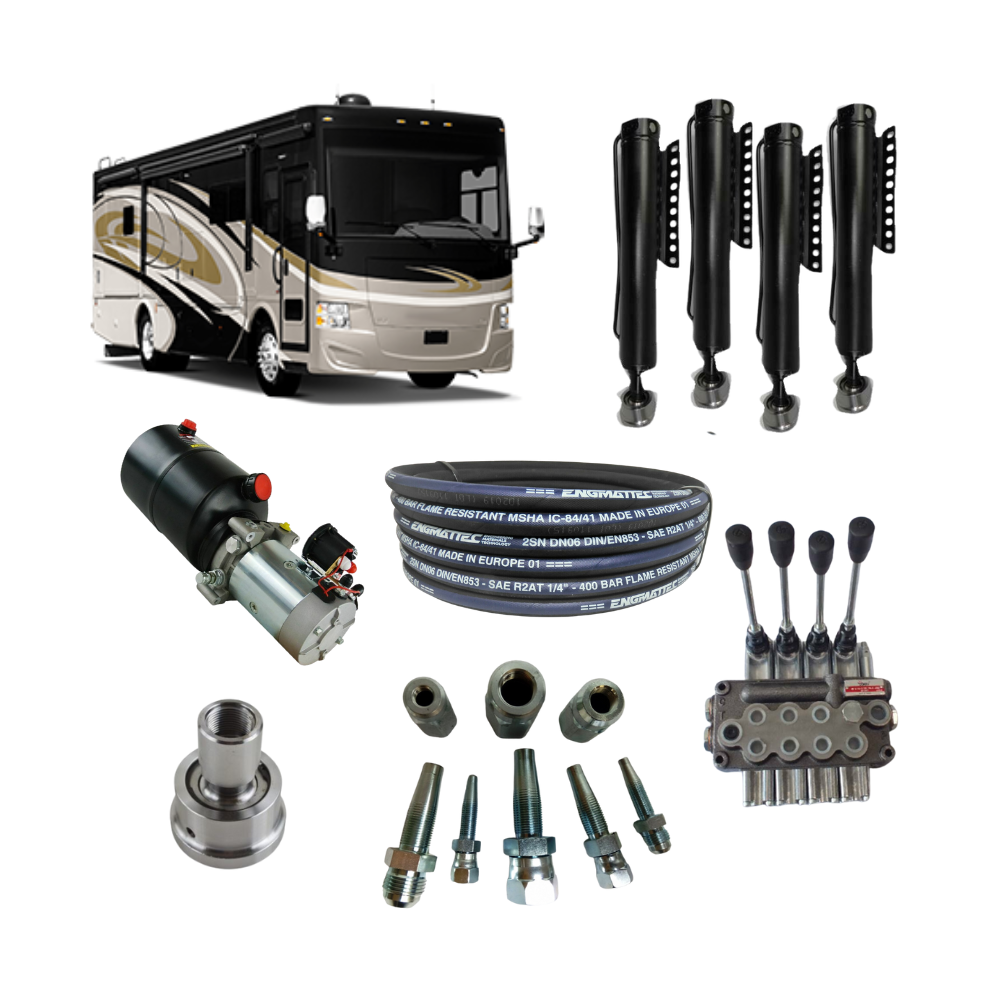

The Stabiliser Kit contents include the following

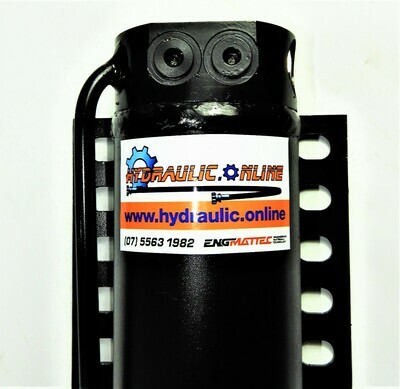

• Four x 3" Bore 16" Stroke with a 2" Diameter Rod. 6.6 Tonne Lift @ 3000 PSI with load hold valves.

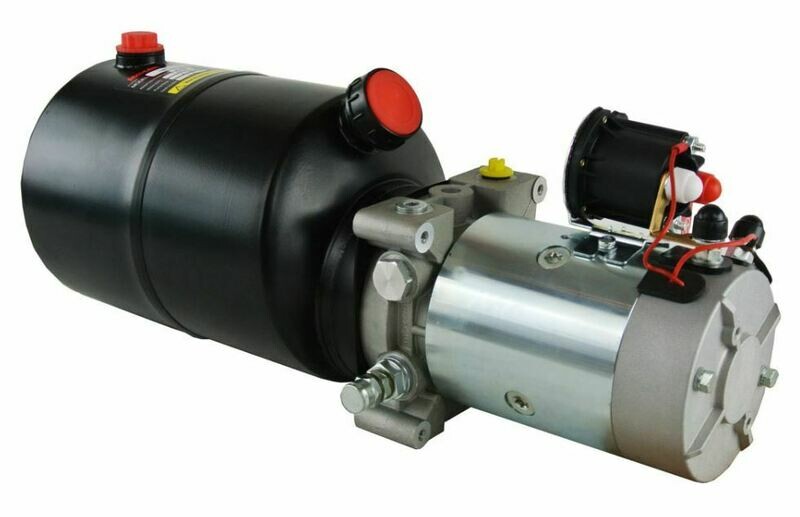

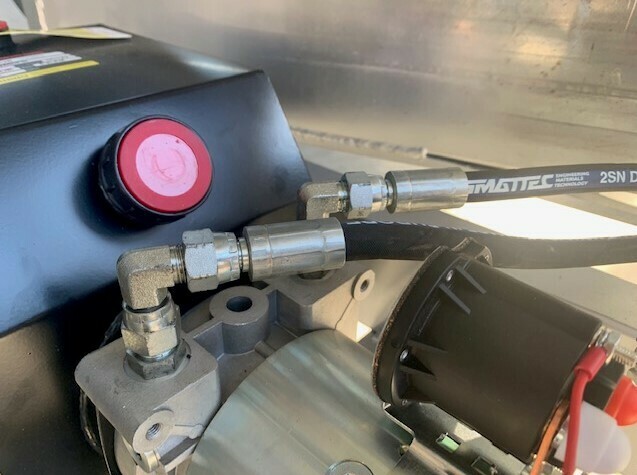

• One x 12 or 24 V DC Power Pack with 1.6 KW Motor P and T Ports and 7.5 litre tank 3000 PSI max Pressure.
• One x Four Spool Monoblock flow control valve to individually control the raising and lowering of each cylinder.

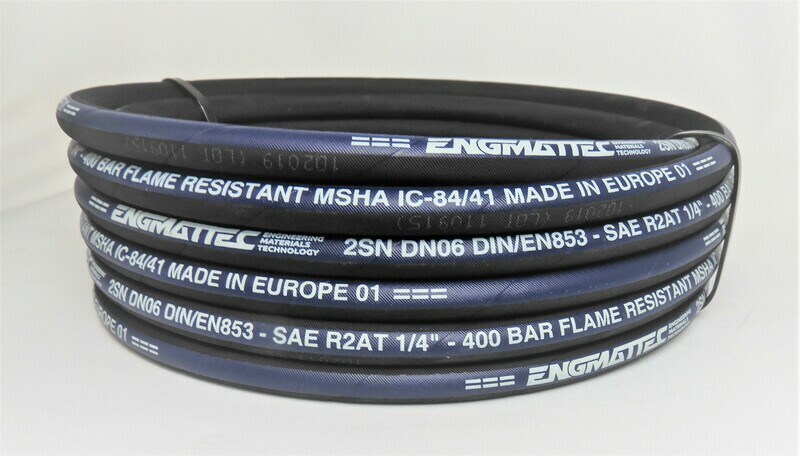

• One Complete set of Do It Your Self Hydraulic Hose Fittings, Adaptors and Clamps kit with up to 60 metres of 5,800 psi hydraulic hose.
•


Installation services also available from our Gold Coast Service Centre

Please message us for a booking or consultation.
