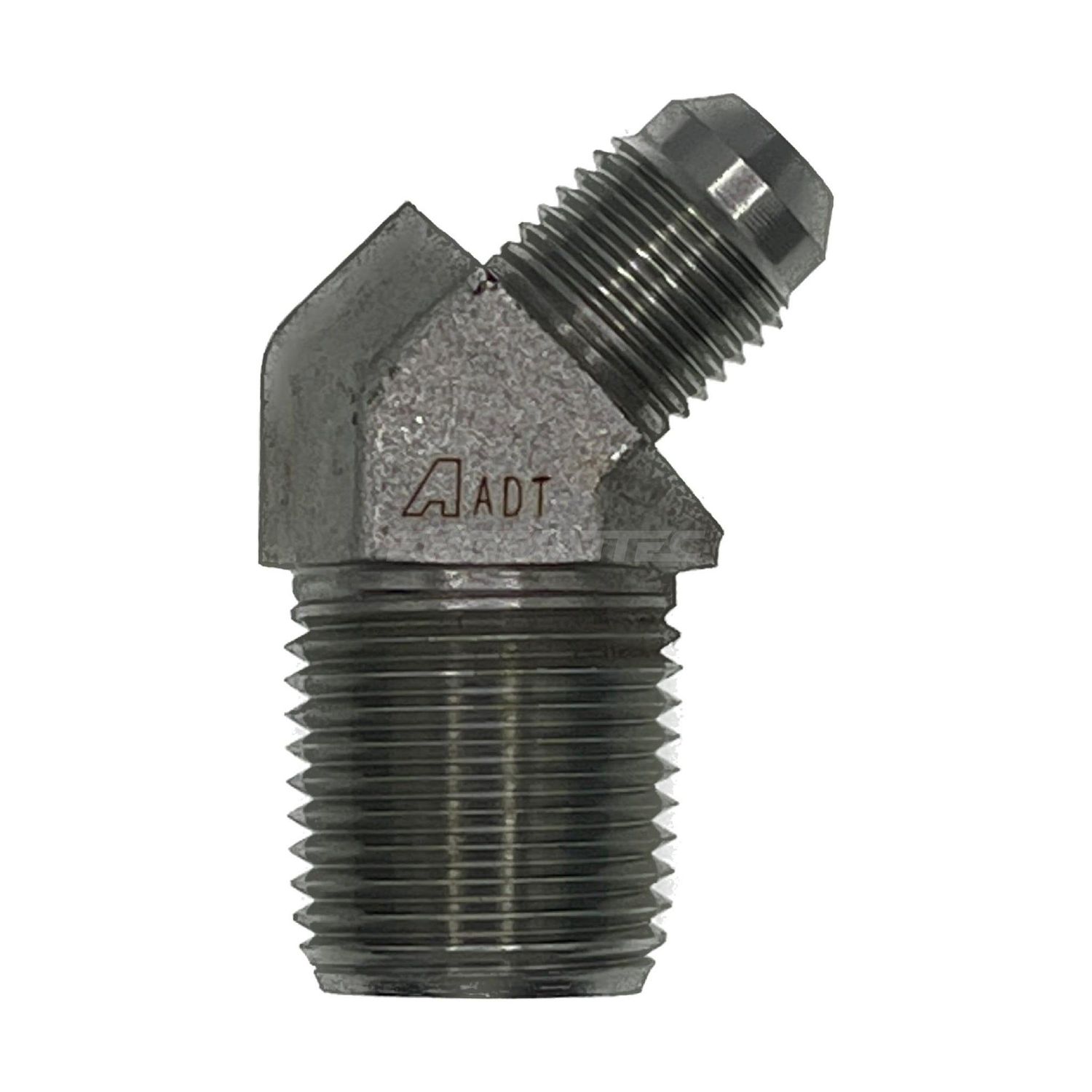

JIC 37° Male x NPT Tapered Male 45° Compact Elbow

JIC on the hose side, NPT into the port – the classic crossover on American pumps, cylinders and gearboxes. The compact 45° body clears the hose from the casting without the bulk of a 90.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.
• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. It seals on thread interference, so tape or sealant is a must.

How to Choose

• NPT and BSPT are both tapered but different thread forms. NPT is 60°, BSPT is 55°, and forcing one into the other damages both.
• The NPT end needs tape or sealant. The JIC end must stay dry, so do not tape both just because they arrived on the same fitting.
• NPT sizes are nominal pipe sizes, not measured thread diameters. A 1/4 inch NPT thread measures about 13.7 mm across the crests.

Where You’ll Find It

• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.
• NPT Tapered Male – American-built gearboxes, pumps, compressors and older industrial pipework.

Cross-Reference

• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.
• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. The dryseal variant is written NPTF.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Technicians Advice

Start the tape two threads back from the end and wrap in the direction of tightening, or the first turn will peel it into the bore and it will finish up in a valve spool. Two to three wraps is plenty; packing the thread with tape splits female castings.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	S1	Material	Finish
JIM-NTM-45C-0702	7/16" JIC	1/8" NPT	11.1mm	Mild steel	Plated finish
JIM-NTM-45C-0704	7/16" JIC	1/4" NPT	14.3mm	Mild steel	Plated finish
JIM-NTM-45C-0706	7/16" JIC	3/8" NPT	19.1mm	Mild steel	Plated finish
JIM-NTM-45C-0802	1/2" JIC	1/8" NPT	12.7mm	Mild steel	Plated finish
JIM-NTM-45C-0804	1/2" JIC	1/4" NPT	14.3mm	Mild steel	Plated finish
JIM-NTM-45C-0902	9/16" JIC	1/8" NPT	14.3mm	Mild steel	Plated finish
JIM-NTM-45C-0904	9/16" JIC	1/4" NPT	14.3mm	Mild steel	Plated finish
JIM-NTM-45C-0906	9/16" JIC	3/8" NPT	19.1mm	Mild steel	Plated finish
JIM-NTM-45C-0908	9/16" JIC	1/2" NPT	22.2mm	Mild steel	Plated finish
JIM-NTM-45C-1204	3/4" JIC	1/4" NPT	19.1mm	Mild steel	Plated finish
JIM-NTM-45C-1206	3/4" JIC	3/8" NPT	19.1mm	Mild steel	Plated finish
JIM-NTM-45C-1208	3/4" JIC	1/2" NPT	22.2mm	Mild steel	Plated finish
JIM-NTM-45C-1212	3/4" JIC	3/4" NPT	27.0mm	Mild steel	Plated finish
JIM-NTM-45C-1406	7/8" JIC	3/8" NPT	22.2mm	Mild steel	Plated finish
JIM-NTM-45C-1408	7/8" JIC	1/2" NPT	22.2mm	Mild steel	Plated finish
JIM-NTM-45C-1708	1.1/16" JIC	1/2" NPT	27.0mm	Mild steel	Plated finish
JIM-NTM-45C-1712	1.1/16" JIC	3/4" NPT	27.0mm	Mild steel	Plated finish
JIM-NTM-45C-1716	1.1/16" JIC	1" NPT	33.3mm	Mild steel	Plated finish
JIM-NTM-45C-2116	1.5/16" JIC	1" NPT	33.3mm	Mild steel	Plated finish
JIM-NTM-45C-2120	1.5/16" JIC	1.1/4" NPT	41.3mm	Mild steel	Plated finish
JIM-NTM-45C-2616	1.5/8" JIC	1" NPT	41.3mm	Mild steel	Plated finish
JIM-NTM-45C-2620	1.5/8" JIC	1.1/4" NPT	41.3mm	Mild steel	Plated finish
JIM-NTM-45C-3024	1.7/8" JIC	1.1/2" NPT	47.6mm	Mild steel	Plated finish
JIM-NTM-45C-4032	2.1/2" JIC	2" NPT	63.5mm	Mild steel	Plated finish

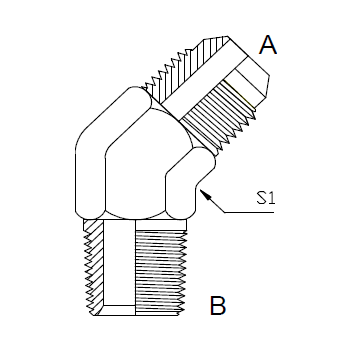

Key: S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

🔗 Straight – same threads🔗 90° Compact – same threads
