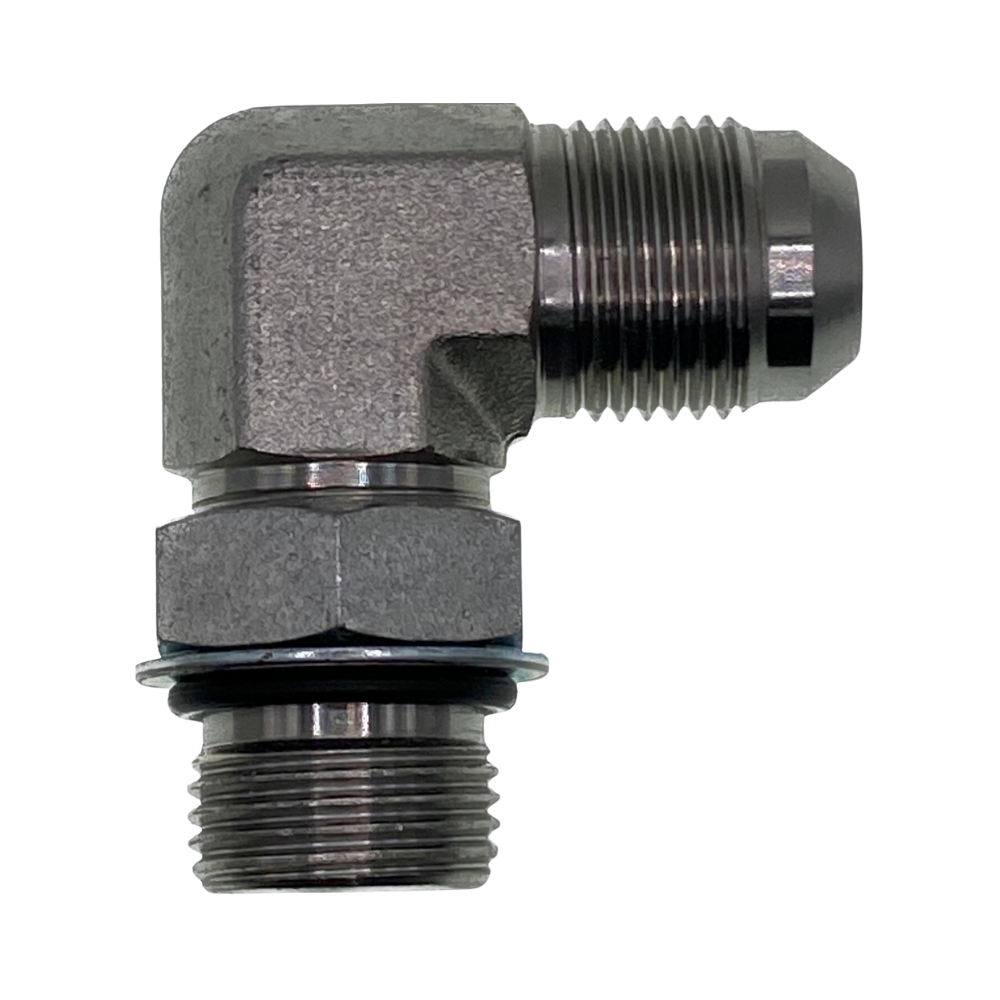

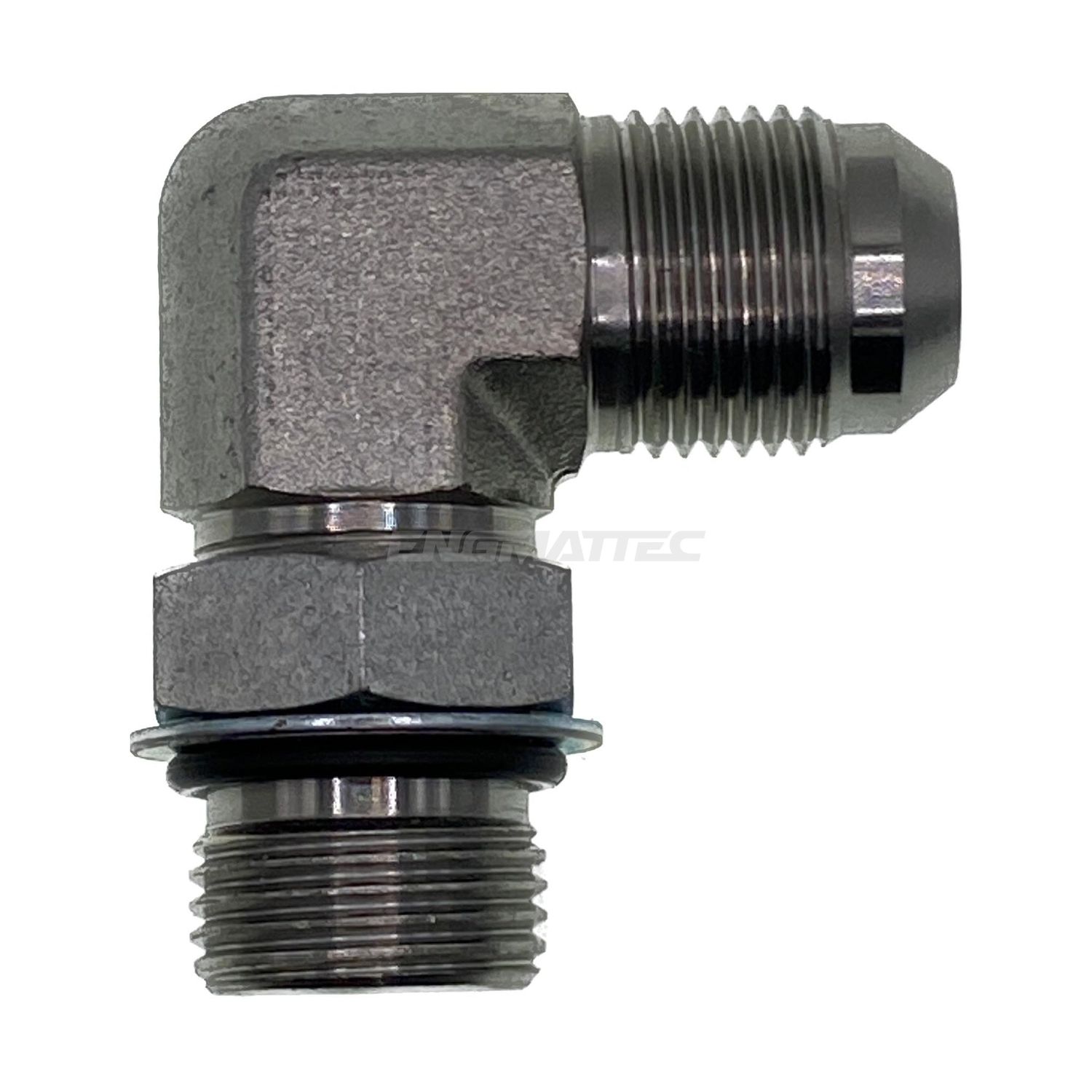

JIC 37° Male x SAE O-Ring Boss Male 90° Compact Elbow

ORB into the port, JIC male out to the hose, at 90°. The right way to feed a hose hard off an SAE straight-thread boss, with the O-ring doing the work at the port end.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Stop Leaks! Connect Your JIC Hose to UNO Ports with These Adapters

Thread Standards

• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.
• SAE O-Ring Boss Male (UNO/UNF) – SAE J1926 / ISO 11926 straight thread O-ring boss. It seals on an O-ring squeezed against the port spotface, not on the thread.

How to Choose

• The ORB end suits a machined boss with a spotface. A tapered port is the wrong home for it.
• Adjustable versions let you clock the outlet. This one seats in a fixed orientation.
• Check the O-ring material suits the fluid before winding it in.

Technicians Advice

Lubricate the boss O-ring with clean system oil before fitting and check the spotface is free of burrs. A sharp edge slices the O-ring on the way past, and you will not see the damage once it is home - just a slow seep that appears when it warms up.

Where You’ll Find It

• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.
• SAE O-Ring Boss Male (UNO/UNF) – Cylinder end caps, pump and valve bosses on US-built plant. Common on Australian-assembled cylinders too, where it is usually called UNO.

Cross-Reference

• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.
• SAE O-Ring Boss Male (UNO/UNF) – SAE J1926 / ISO 11926 straight thread O-ring boss. Also written ORB, SAE ORB or UNO. Thread form is UN/UNF.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	H	S1	Material	Finish
JIM-UNM-90C-0707	7/16" JIC	7/16" UNO	14.3mm	11.1mm	Mild steel	Plated finish
JIM-UNM-90C-0708	7/16" JIC	1/2" UNO	15.9mm	14.3mm	Mild steel	Plated finish
JIM-UNM-90C-0709	7/16" JIC	9/16" UNO	17.5mm	14.3mm	Mild steel	Plated finish
JIM-UNM-90C-0712	7/16" JIC	3/4" UNO	22.2mm	19.1mm	Mild steel	Plated finish
JIM-UNM-90C-0808	1/2" JIC	1/2" UNO	15.9mm	14.3mm	Mild steel	Plated finish
JIM-UNM-90C-0809	1/2" JIC	9/16" UNO	17.5mm	14.3mm	Mild steel	Plated finish
JIM-UNM-90C-0907	9/16" JIC	7/16" UNO	14.3mm	14.3mm	Mild steel	Plated finish
JIM-UNM-90C-0908	9/16" JIC	1/2" UNO	15.9mm	14.3mm	Mild steel	Plated finish
JIM-UNM-90C-0909	9/16" JIC	9/16" UNO	17.5mm	14.3mm	Mild steel	Plated finish
JIM-UNM-90C-0912	9/16" JIC	3/4" UNO	22.2mm	19.1mm	Mild steel	Plated finish
JIM-UNM-90C-0914	9/16" JIC	7/8" UNO	25.4mm	22.2mm	Mild steel	Plated finish
JIM-UNM-90C-0917	9/16" JIC	1.1/16" UNO	31.8mm	27.0mm	Mild steel	Plated finish
JIM-UNM-90C-1207	3/4" JIC	7/16" UNO	14.3mm	19.1mm	Mild steel	Plated finish
JIM-UNM-90C-1209	3/4" JIC	9/16" UNO	17.5mm	19.1mm	Mild steel	Plated finish
JIM-UNM-90C-1212	3/4" JIC	3/4" UNO	22.2mm	19.1mm	Mild steel	Plated finish
JIM-UNM-90C-1214	3/4" JIC	7/8" UNO	25.4mm	22.2mm	Mild steel	Plated finish
JIM-UNM-90C-1217	3/4" JIC	1.1/16" UNO	31.8mm	27.0mm	Mild steel	Plated finish
JIM-UNM-90C-1221	3/4" JIC	1.5/16" UNO	38.1mm	33.3mm	Mild steel	Plated finish
JIM-UNM-90C-1409	7/8" JIC	9/16" UNO	17.5mm	22.2mm	Mild steel	Plated finish
JIM-UNM-90C-1412	7/8" JIC	3/4" UNO	22.2mm	22.2mm	Mild steel	Plated finish
JIM-UNM-90C-1414	7/8" JIC	7/8" UNO	25.4mm	22.2mm	Mild steel	Plated finish
JIM-UNM-90C-1417	7/8" JIC	1.1/16" UNO	31.8mm	27.0mm	Mild steel	Plated finish
JIM-UNM-90C-1712	1.1/16" JIC	3/4" UNO	22.2mm	27.0mm	Mild steel	Plated finish
JIM-UNM-90C-1714	1.1/16" JIC	7/8" UNO	25.4mm	27.0mm	Mild steel	Plated finish
JIM-UNM-90C-1717	1.1/16" JIC	1.1/16" UNO	31.8mm	27.0mm	Mild steel	Plated finish
JIM-UNM-90C-1719	1.1/16" JIC	1.3/16" UNO	34.9mm	33.3mm	Mild steel	Plated finish
JIM-UNM-90C-1721	1.1/16" JIC	1.5/16" UNO	38.1mm	33.3mm	Mild steel	Plated finish
JIM-UNM-90C-2117	1.5/16" JIC	1.1/16" UNO	31.8mm	33.3mm	Mild steel	Plated finish
JIM-UNM-90C-2121	1.5/16" JIC	1.5/16" UNO	38.1mm	33.3mm	Mild steel	Plated finish
JIM-UNM-90C-2126	1.5/16" JIC	1.5/8" UNO	47.6mm	41.3mm	Mild steel	Plated finish
JIM-UNM-90C-2130	1.5/16" JIC	1.7/8" UNO	54.0mm	47.6mm	Mild steel	Plated finish
JIM-UNM-90C-2621	1.5/8" JIC	1.5/16" UNO	38.1mm	41.3mm	Mild steel	Plated finish
JIM-UNM-90C-2626	1.5/8" JIC	1.5/8" UNO	47.6mm	41.3mm	Mild steel	Plated finish
JIM-UNM-90C-2630	1.5/8" JIC	1.7/8" UNO	54.0mm	47.6mm	Mild steel	Plated finish
JIM-UNM-90C-3026	1.7/8" JIC	1.5/8" UNO	47.6mm	47.6mm	Mild steel	Plated finish
JIM-UNM-90C-3030	1.7/8" JIC	1.7/8" UNO	54.0mm	47.6mm	Mild steel	Plated finish
JIM-UNM-90C-4040	2.1/2" JIC	2.1/2" UNO	69.9mm	63.5mm	Mild steel	Plated finish
JIM-UNM-90C-0909E	9/16" JIC	9/16" UNO	17.5mm	14.3mm	Mild steel	Plated finish
JIM-UNM-90C-1212E	3/4" JIC	3/4" UNO	22.2mm	19.1mm	Mild steel	Plated finish

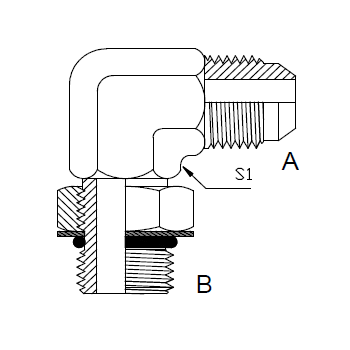

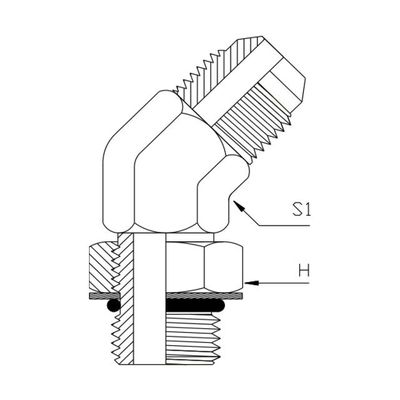

Key: H centre to face, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
