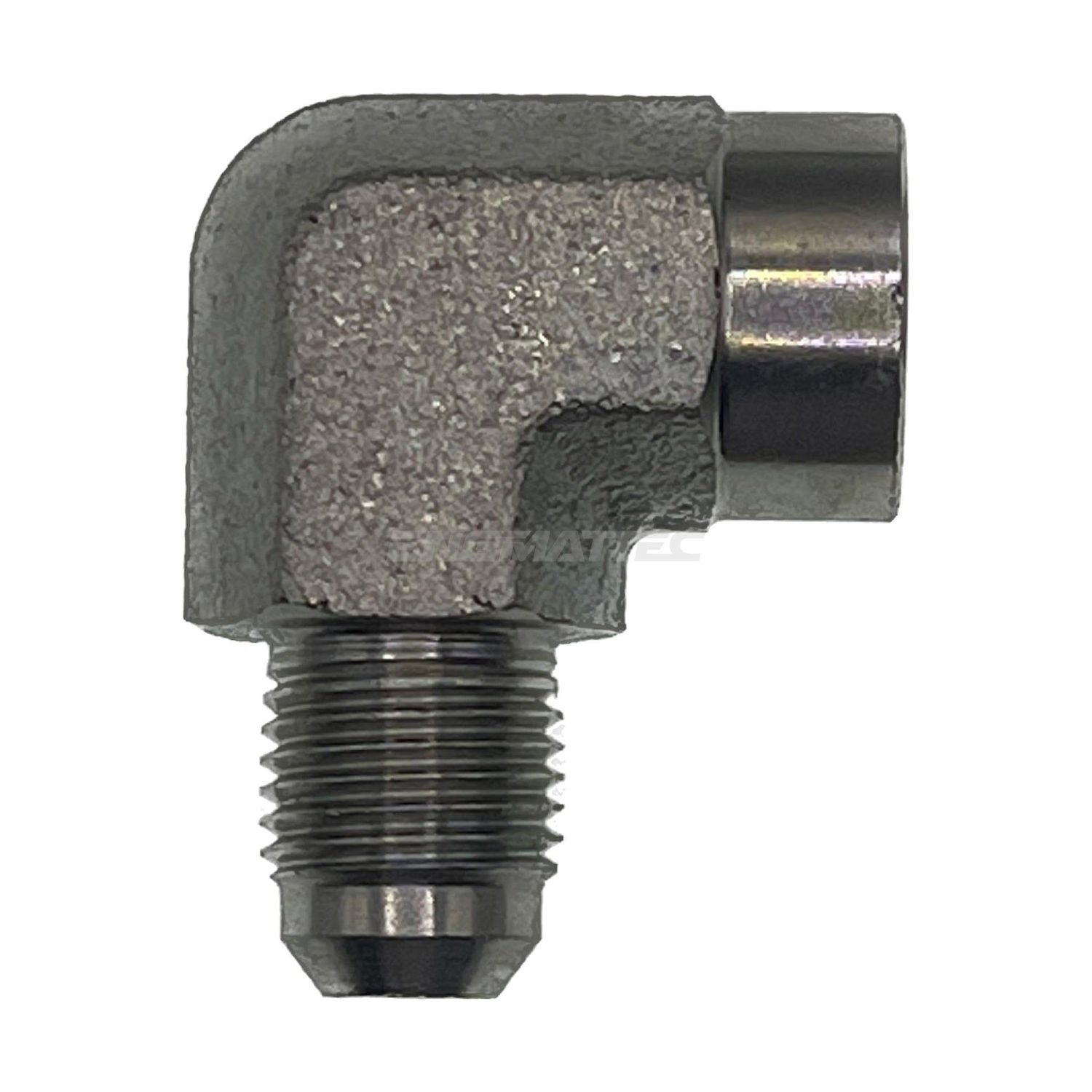

JIC 37° Male x NPT Tapered Female 90° Compact Elbow

JIC male one end, NPT female the other, bent 90°. Lets a JIC line turn hard and land on an NPT male nipple or fitting, common on American pipework and gauge assemblies.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.
• NPT Tapered Female – ANSI/ASME B1.20.1 tapered pipe thread. It seals on the thread and needs tape or sealant every time.

How to Choose

• Whatever screws into the female must be NPT male, not BSPT. The thread forms differ and BSPT will split the casting.
• The NPT female needs tape or sealant. The JIC male stays dry.
• Check the body rating if this sits in a working pressure line rather than on a gauge.

Technicians Advice

This fitting gets taped on the wrong end more than most. Sealant belongs in the female only. If it weeps at the JIC, strip any tape out and look at the cone - tape on a cone joint causes the leak rather than curing it.

Where You’ll Find It

• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.
• NPT Tapered Female – Female side of American pipework, adaptor blocks and gauge manifolds.

Cross-Reference

• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.
• NPT Tapered Female – ANSI/ASME B1.20.1 tapered pipe thread.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	S1	Material	Finish
JIM-NTF-90C-0704	19.1mm	Mild steel	Plated finish
JIM-NTF-90C-0904	19.1mm	Mild steel	Plated finish
JIM-NTF-90C-0906	22.2mm	Mild steel	Plated finish
JIM-NTF-90C-1208	27.0mm	Mild steel	Plated finish

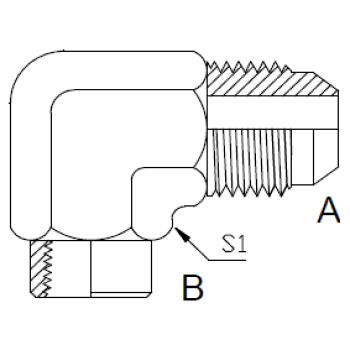

Key: S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

🔗 Straight – same threads
