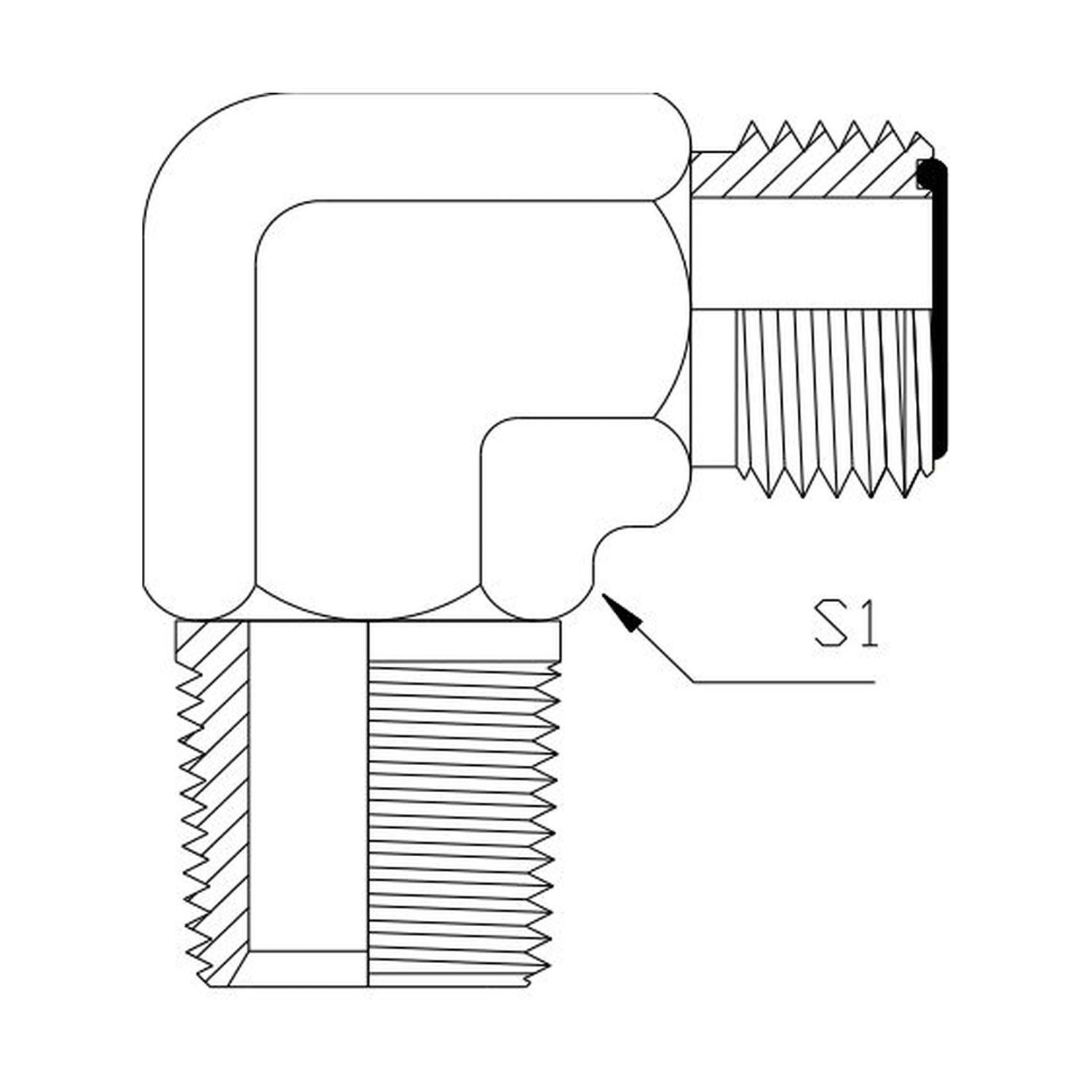

NPT Tapered Male x ORFS Male 90° Compact Elbow

NPT into an older American port, ORFS flat face out to a modern hose, at 90°. The upgrade fitting for machines being re-hosed to O-ring face seal while the ports stay as they were.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. It seals on thread interference, so tape or sealant is a must.
• ORFS Male – SAE J1453 O-ring face seal. It seals on an O-ring sitting in the flat face groove, never on the thread.

How to Choose

• Tape or sealant on the NPT end only. The ORFS face seals on its O-ring and takes nothing.
• Match the ORFS flat face size, not just the thread - ORFS threads repeat across different face diameters.
• Check the face O-ring is present and undamaged before assembly.

Technicians Advice

ORFS is chosen because it survives vibration better than a cone. That advantage is gone if the O-ring is nicked going on, so wipe the face, roll the O-ring into its groove rather than stretching it over the thread, and bring the nut up square.

Where You’ll Find It

• NPT Tapered Male – American-built gearboxes, pumps, compressors and older industrial pipework.
• ORFS Male – High-pressure, high-vibration circuits on late-model excavators, drill rigs, crushers and forestry gear.

Cross-Reference

• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. The dryseal variant is written NPTF.
• ORFS Male – SAE J1453 / ISO 8434-3 O-ring face seal. Parker call this series Seal-Lok. Also written ORFS or flat face.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	S1	Material	Finish
NTM-ORM-90C-0409	9/16" ORFS	1/4" NPT	14.3mm	Mild steel	Plated finish
NTM-ORM-90C-0411	11/16" ORFS	1/4" NPT	19.1mm	Mild steel	Plated finish
NTM-ORM-90C-0609	9/16" ORFS	3/8" NPT	19.1mm	Mild steel	Plated finish
NTM-ORM-90C-0613	13/16" ORFS	3/8" NPT	19.1mm	Mild steel	Plated finish
NTM-ORM-90C-0813	13/16" ORFS	1/2" NPT	22.2mm	Mild steel	Plated finish
NTM-ORM-90C-0816	1" ORFS	1/2" NPT	27.0mm	Mild steel	Plated finish
NTM-ORM-90C-1216	1" ORFS	3/4" NPT	27.0mm	Mild steel	Plated finish
NTM-ORM-90C-1219	1.3/16" ORFS	3/4" NPT	36.5mm	Mild steel	Plated finish
NTM-ORM-90C-1619	1.3/16" ORFS	1" NPT	36.5mm	Mild steel	Plated finish

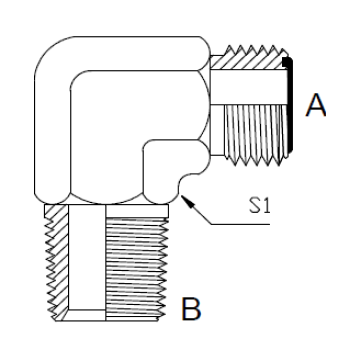

Key: S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
