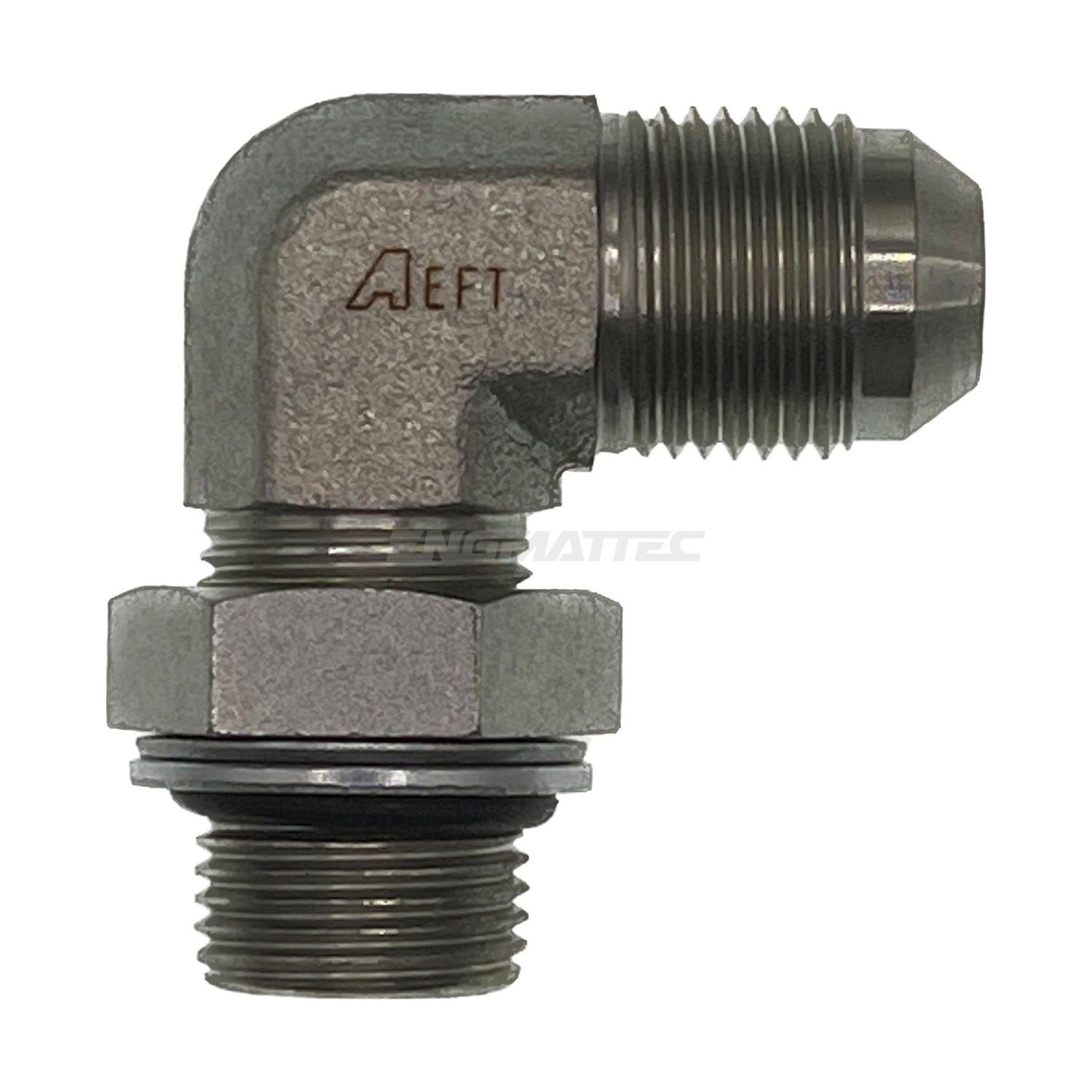

JIC 37° Male x Metric Stud Male 90° Compact Elbow

Metric stud into a European port, JIC out to the hose, turned 90°. Fitted where European machinery has been re-hosed with JIC ends, which is common on imported plant working in Australia.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.
• Metric Stud Male – metric straight thread with a captive soft seal. It seals on a bonded washer or O-ring under the stud shoulder, not on the thread.

How to Choose

• The metric stud seals on a bonded washer or O-ring under the shoulder, not on the thread.
• Confirm the metric thread pitch against the port. Metric ports of the same diameter come in more than one pitch.
• The JIC end stays dry. Tape only belongs on tapered threads, and neither end here is tapered.

Technicians Advice

The soft seal under the stud shoulder is the whole joint. Fit a new one every time and make sure the port face is clean and flat. A reused washer that has already been crushed will not take up the gap a second time.

Where You’ll Find It

• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.
• Metric Stud Male – European valve blocks and manifolds using a metric port with a soft seal under the shoulder.

Cross-Reference

• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.
• Metric Stud Male – Metric straight thread with a bonded washer or O-ring. Confirm the port series against the block before ordering.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	H	S1	Material	Finish
JIM-MSM-90C-0914	9/16" JIC	M14x1.5	19mm	14mm	Mild steel	Plated finish
JIM-MSM-90C-0916	9/16" JIC	M18x1.5	24mm	19mm	Mild steel	Plated finish
JIM-MSM-90C-0918	9/16" JIC	M18x1.5	24mm	19mm	Mild steel	Plated finish
JIM-MSM-90C-1216	3/4" JIC	M16x1.5	22mm	19mm	Mild steel	Plated finish
JIM-MSM-90C-1218	3/4" JIC	M18x1.5	24mm	19mm	Mild steel	Plated finish
JIM-MSM-90C-1222	3/4" JIC	M22x1.5	27mm	22mm	Mild steel	Plated finish
JIM-MSM-90C-1420	7/8" JIC	M20x1.5	27mm	22mm	Mild steel	Plated finish
JIM-MSM-90C-1422	7/8" JIC	M22x1.5	27mm	22mm	Mild steel	Plated finish
JIM-MSM-90C-1722	1.1/16" JIC	M22x1.5	27mm	27mm	Mild steel	Plated finish

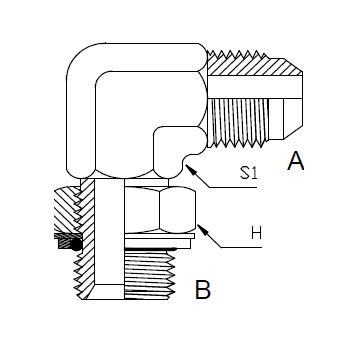

Key: H centre to face, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

🔗 Straight – same threads
