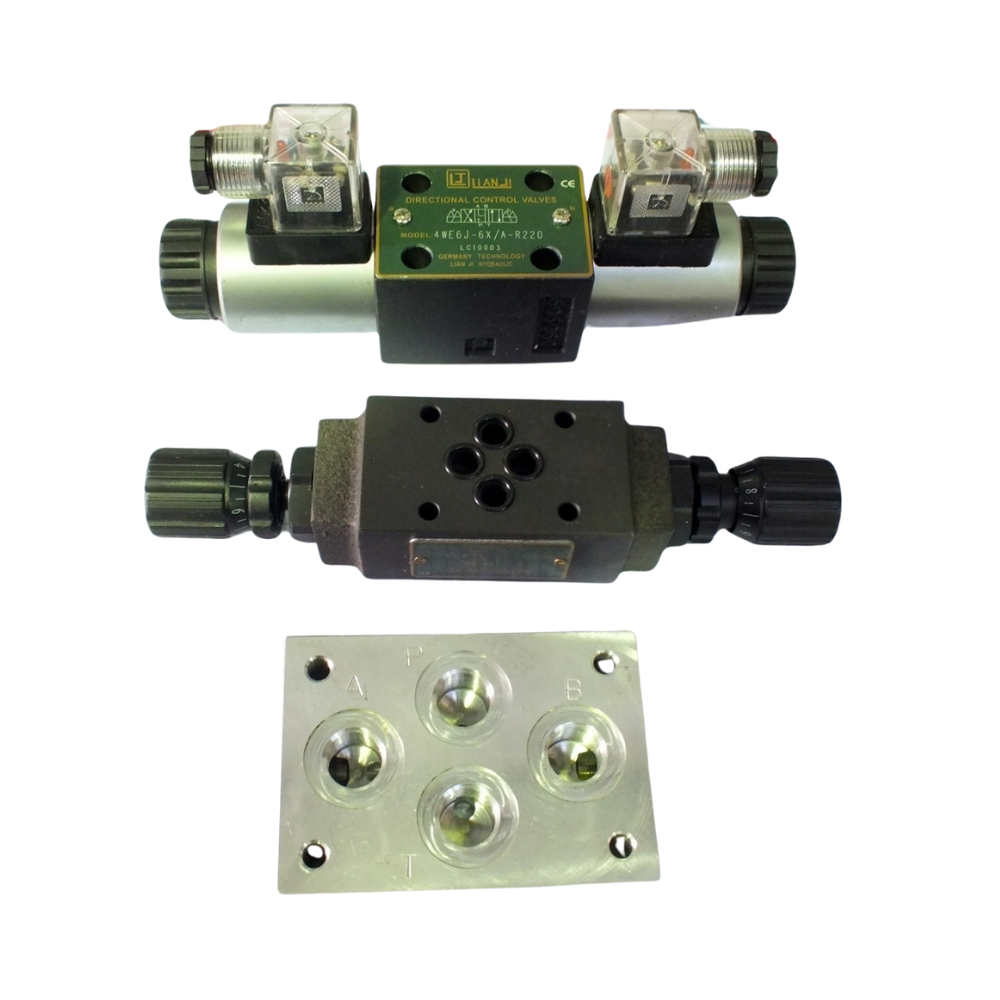

CETOP 5 Directional Hydraulic Flow Control Valve
This listing is for a high-quality CETOP 5 Electric Solenoid Operated Directional valve with 12 V DC, 24 V DC, or 240 V AC coils, LED DIN Plugs, with various optional functions.
There is the option to buy just the solenoid cetop on its own, to retrofit to your existing manifold. There is an option for the Cetop valve with an aluminum manifold with either side entry ports, or bottom (rear entry ports), & also a manifold with relief on the Pressure port. This manifold has two ports underneath & two at the side.
There is also an option of a further flow control subplate to sandwich in between. Other subplate options are pressure reduction, pilot check, and also counterbalance valves. Contact us for pricing.
They are solenoid operated and control the start, stop, and direction of the oil flow in the hydraulic circuit.
brand new high-quality valve, it is designed for hydraulic equipment and machinery such as Tilt Tray Trucks, Motor homes, Trailers campers, and Cranes. Skip Bin Trucks, Front end Loaders, Backhoes, or any application where you need to remotely control a hydraulic function to operate a motor or cylinder.
These valves are regularly used in hydraulic circuits to divert the flow of high-pressure oil and are typically used to control the direction of hydraulic cylinders or motors. They can be used with a 'P & T' powerpack or existing setup.
Specifications
Construction = Monoblock
Material of Construction = Steel
No of Spools = 1
Material of Construction = Case Hardened Steel
O-rings made of NBR (Buna-N®)
Max Flow Rate =80 liters/min (15 Gallons per Minute)
Max Working Pressure = 200 Bar (3000 PSI)
Spool Type = Cylinder Spool (Closed Centres), Open, Float, and Tandem Centres are also available at no extra cost,
Spool Movement = Electric Solenoid Coil with illuminated LED din plugs, Spring Return to Center.
Solenoid Coil Voltage 12 Volts DC 24 V DC and 240 V AC also available at no extra cost
Operating temperature range: -20 °C to + 80°C
Subplate
Material of Construction = Aluminium
Ports Size 3/4" BSPP Side Port, Rear Ports also available.
Dimentions = L x W x H = 200 x 60 x 90 mm
weight 4.0 kg

Please send us a message for more information.
