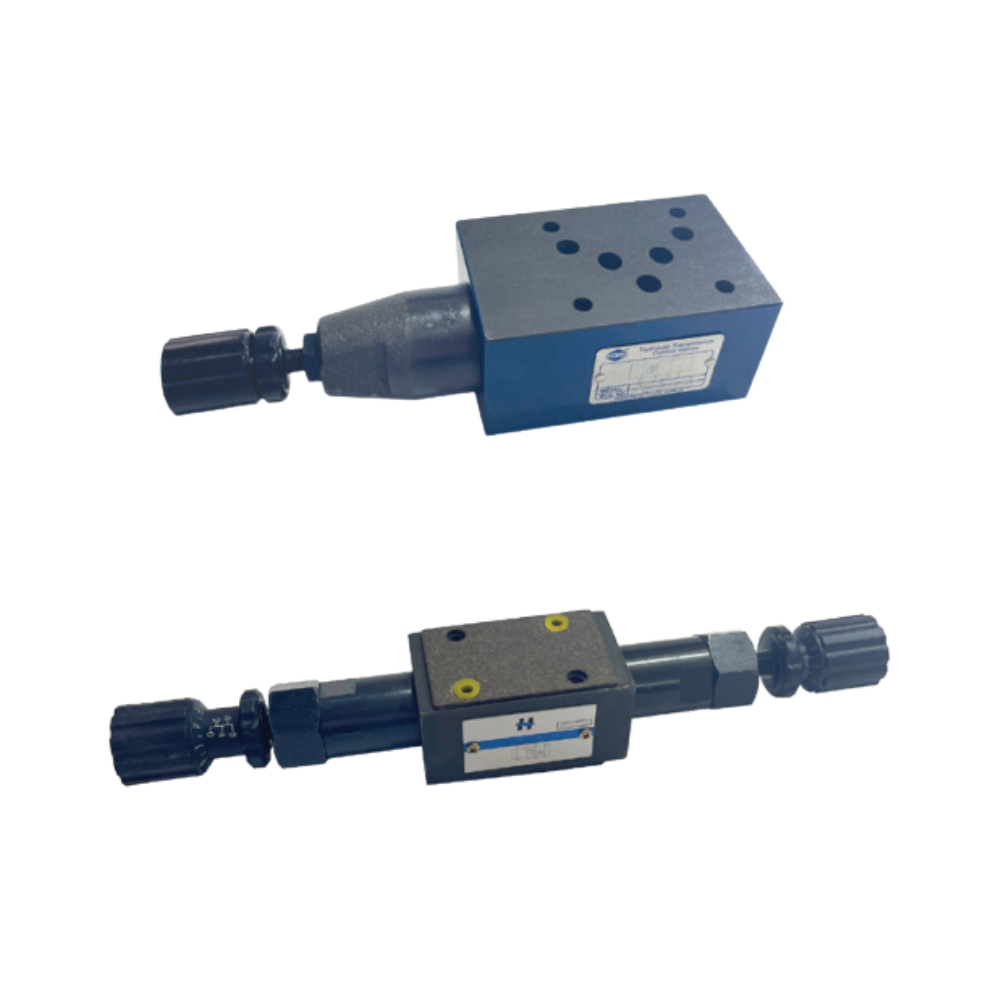

Cetop 3 and Cetop 5 Modular Relief Valve

These modular and adjustable relief valves are usually fitted between the manifold or subplate and the Cetop 3 or Cetop 5 Valve

Available in a range of Relief Pressures: from

• 7 - 70 bar (100 - 1000 psi)
• 35 - 150 bar (500 - 2200 psi)
• 70 - 210 bar (1000 - 3100 psi)
• Fixed reliefs of 250 and 315 bar (3600 and 4600 psi)

Different flow rates:

• 35 to 40 Lt/min for Cetop 3
• and 70 Lt/min for Cetop 5

A variety of Different Relief Functions: are also available

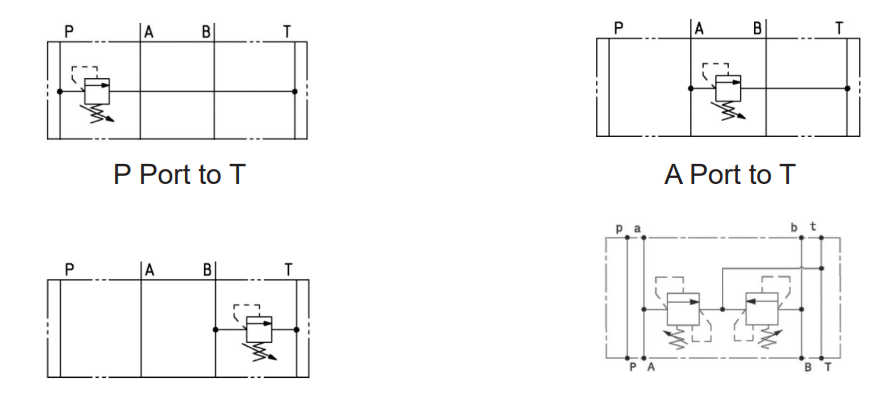

For Cetop 3 Modular Relief Valves:

• P Port to T = Pressure Port to Tank
• A Port to T = A Port to Tank Port
• B Port to T = B Port to Tank Port
• A & B Port to T = A and B Ports to Tank
• Crossline Relief (A to B) and (B to A)

For Cetop 5 Modular Relief Valves:

• P Port to T (Knob on A)
• P port to T (Knob on B)

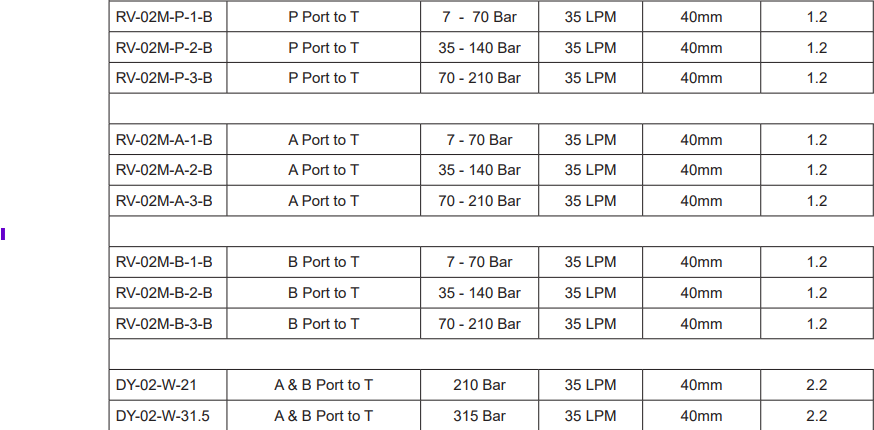

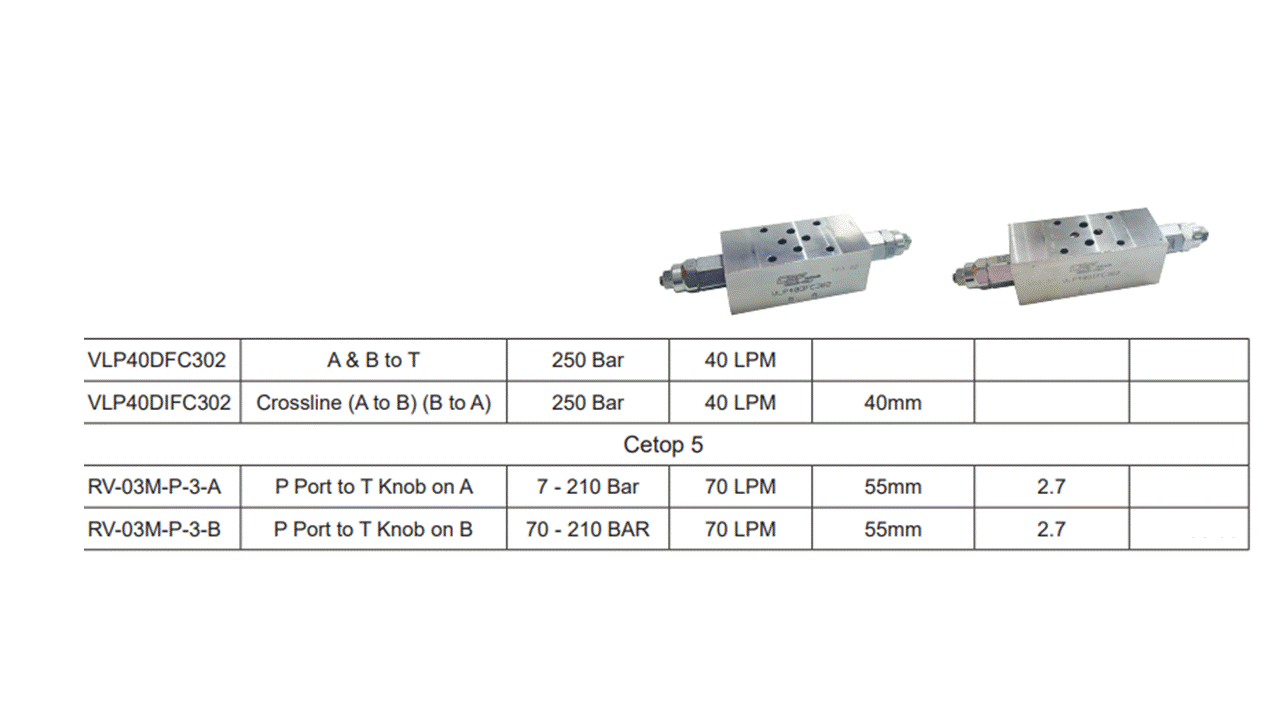

Many relief options. Please refer to the charts.
