Hydraulic Solenoid Actuated Valve, Cetop 3, flows up to 40 lt/min Pressures to 210 bar Available in 12, or 24 Volt DC and 240 V AC.

CETOP 3 solenoid Directional Flow Control Valve

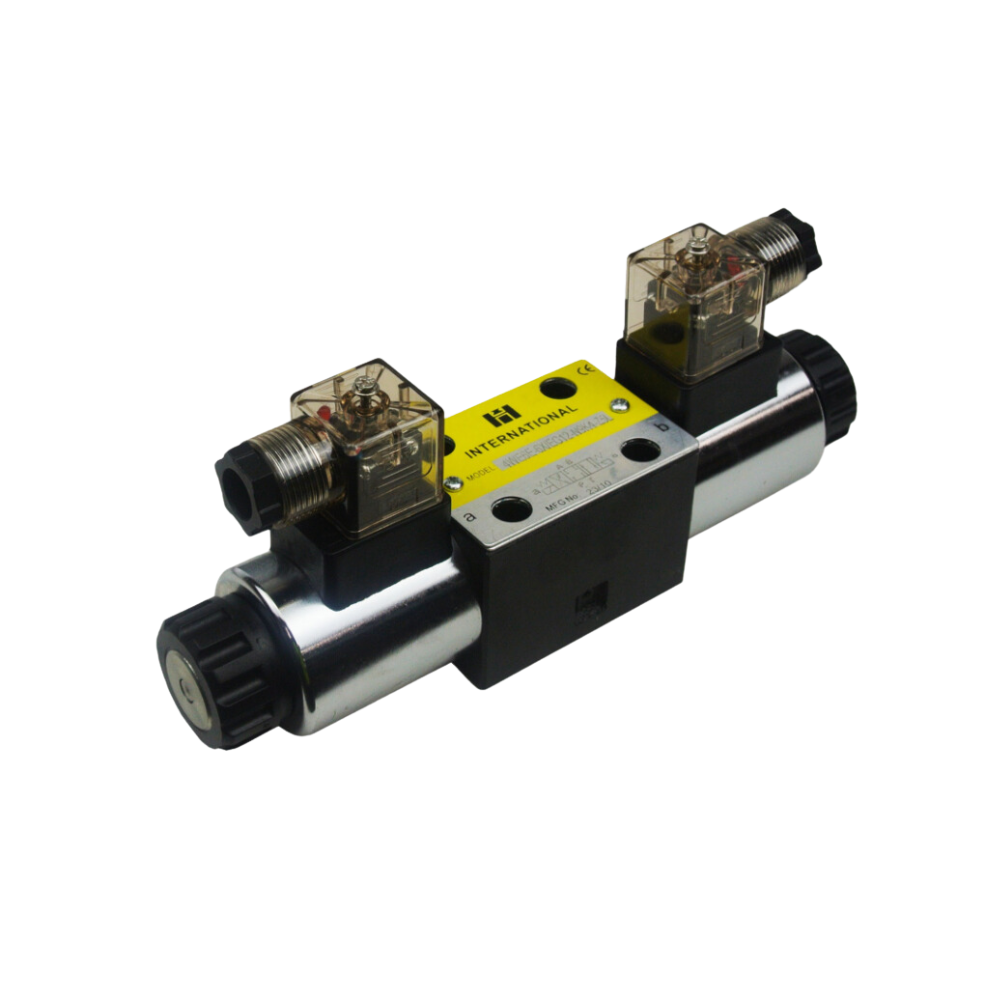

This high-quality CETOP 3 Electric Solenoid Operated Directional valve comes complete with 12 V DC, 24 V DC or 240 Coils& LED DIN Plugs.

Cetop 3 valves are regularly used in hydraulic circuits to divert the flow of high-pressure oil: and are typically used to control the direction of hydraulic cylinders or motors. They can be used with a 'P & T' Compact power unit or powerpack or existing setup.
CETOP 3 solenoid valves are solenoid operated and control the start, stop, and direction of the oil flow in the hydraulic circuit.

The Cetop 3 valve, it is designed for hydraulic equipment and machinery: such as Tilt Tray Trucks, Motor homes, Trailers campers, and Cranes, Skip Bin Trucks, Front end Loaders, Backhoes, or any application where you need to remotely control a hydraulic function to operate a motor or cylinder.

You are able to purchase a replacement Cetop 3 Coils as well at the the Subplate manifold.

Subplate manifold are required for hose and pipe connections if used as a new freestanding unit,

Various subplates are available that can be stacked)
Click Here for basic Subplate Options

## Please note you MUST purchase the manifold as well as subplate if you want relief or flow control options.

These subplates 'stack' in between. Please call 07 5563 1982 if you are unsure.

We also stock & supply a large range of Cetop 3 & Cetop 5 models, including various ported sub-plates, counterbalance subplates, manifolds as well as up to 8-section sandwich valves.

Specifications

• Construction = Monoblock
• Material of Construction = Steel
• No of Spools = 1
• Material of Construction = Case Hardened Steel
• O-rings made of NBR (Buna-N®)
• Max Flow Rate = 40 liters/min
• Max Working Pressure = 210 Bar (3,100 PSI)
• Spool Type = Cylinder Spool (Closed Centres), Open, Float, and Tandem Centres are also available at no extra cost,
• Spool Movement = Electric Solenoid Coil with illuminated LED din plugs, Spring Return to Center.
• Solenoid Coil Voltage 12 or 24 Volts DC or 240 volts AC
• Operating temperature range: -20 °C to + 80°C
• Dimensions = L x W x H = 200 x 60 x 90 mm
• Weight 4 KG
