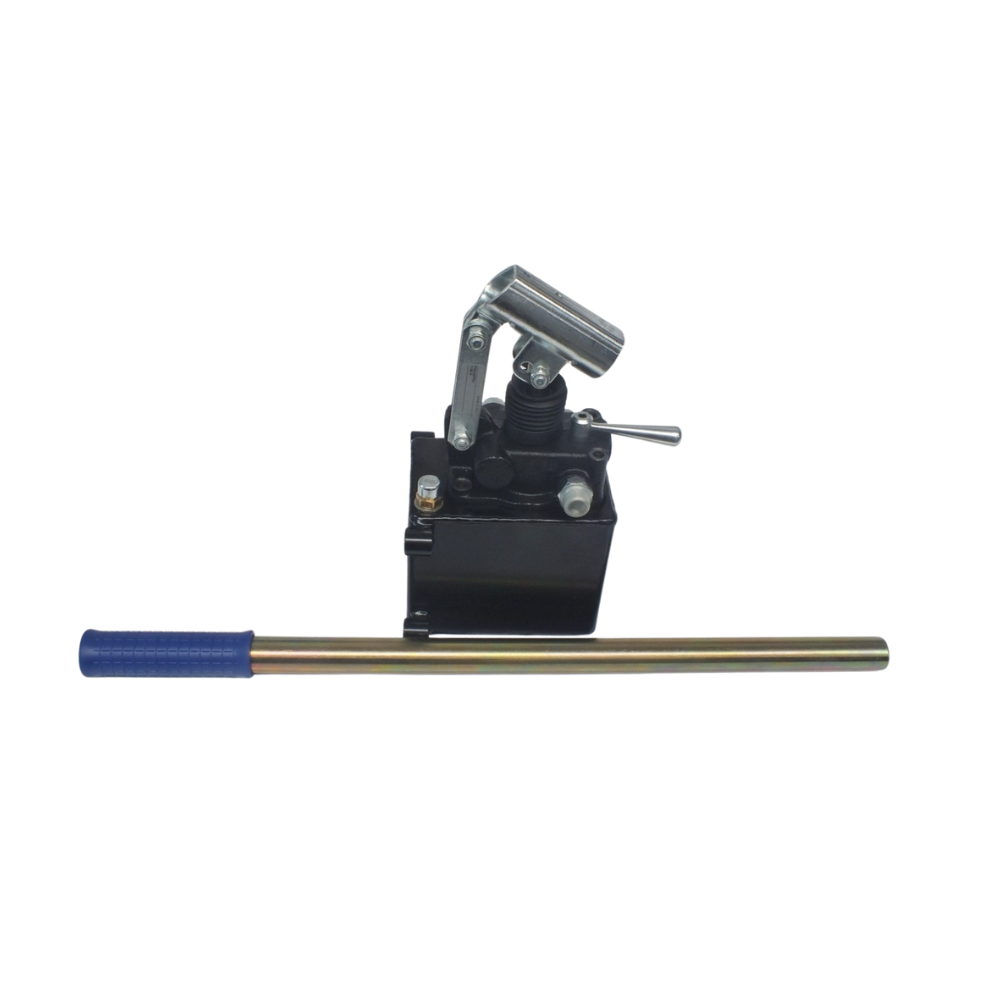

HYDRAULIC HAND PUMP WITH TANK SINGLE-ACTING MODEL

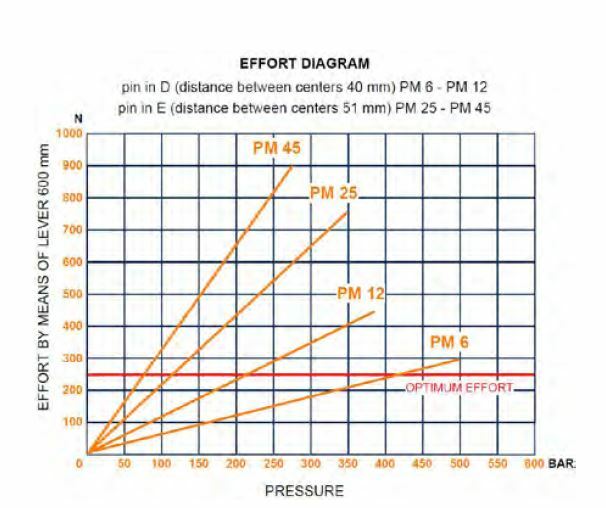

This is a brand new high-quality Italian-made hydraulic hand pump. These are an easy way to operate hydraulic cylinders on a multitude of machines & trucks. This would be ideal for a tipping car towed trailer or a horse trailer ramp for example. They are capable of lifting many tons of weight if used with hydraulic cylinders. These come in either single-acting or double acting( please see other listings). Single acting is used for example if you only need to pump to raise a load, & gravity brings it back down. Double acting powers both the up & down direction. This comes with the 1-liter tank as standard. We can also supply tanks in sizes from 1 liter to 10 liters. The hand pump comes in sizes 12cc, 25cc & 45cc (drop box next to price above) For every pump, you will move either 12, 25, or 45cc of oil. Keep in mind, that as the pressure & load increase, the larger the volume of cc's, the more effort it will take to pump. So if you have a larger type cylinder, & use the 45cc, it will take fewer pumps of the handle to raise a load but will take more effort. These pumps are capable of lifting many tons. We also have in stock a 'remote' hand pump, which means you can mount just the pump head, & run hoses to another or existing oil reservoir. These are in another listing.
PRESSURE RATING
12cc = 350 Bar / 5200 psi
25cc = 350 Bar / 5200 psi
45 cc = 250 Bar / 4200 psi
3/8"BSPP male outlet

Email: sales@hydraulic.online

phone: 07 5563 1982

Hours: 8 am to 4 pm Monday - Friday, excluding public holidays

If you have any questions please don’t hesitate to contact us

Best regards,

Hydraulic.Online

Improper Selection, Installation, Implementation, And/Or Operation By Anyone Other Than Persons With Appropriate Technical And Mechanical Training Can Result In Damage To Equipment Or Property, Serious Personal Injury, Or Death. Proper Precautions And Safety Procedures Should Be Implemented Prior To The Installation And Operation Of Equipment.
