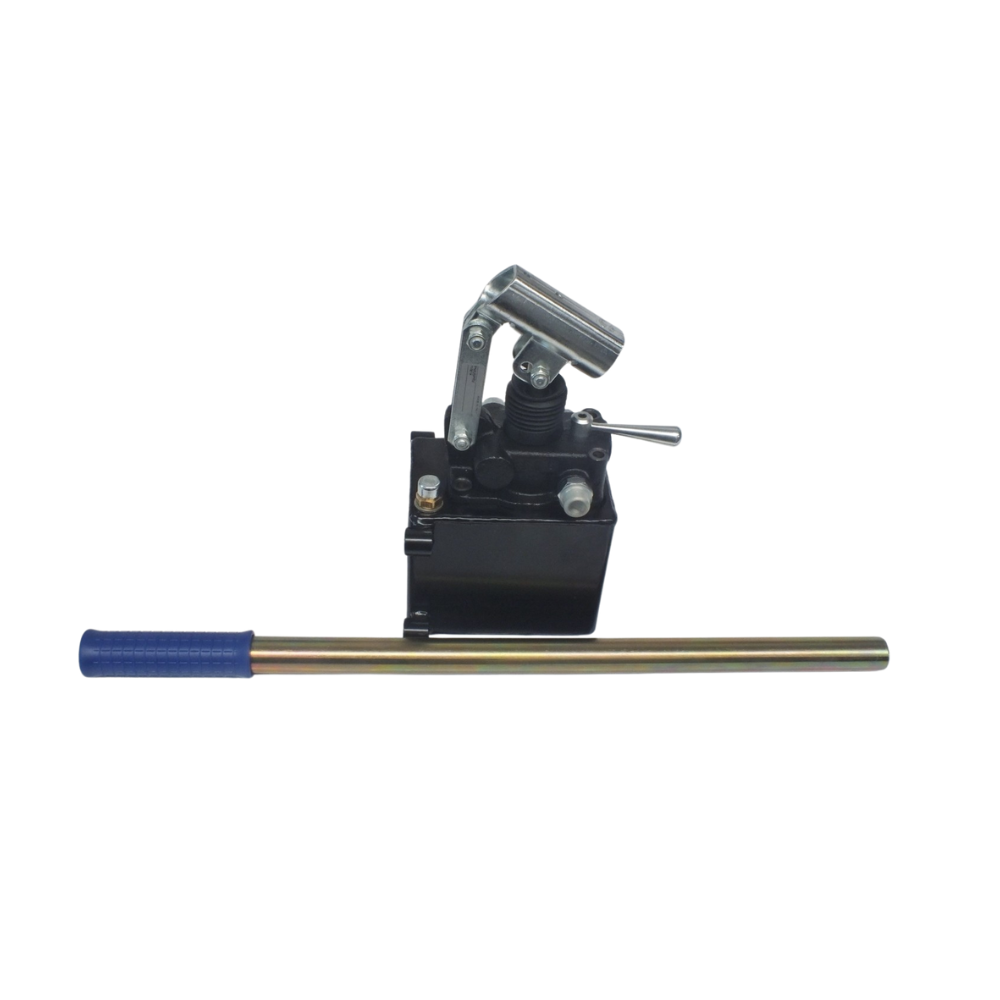

Hydraulic Hand Pump, for Double Acting Cylinders , 12, 25 and 45 cc Pumps available pressures from 280 to 380 bar (4,100 to 5,500 psi)

This robust Italian-made hydraulic hand pump has been designed specifically as a compact pressure unit to supply oil flow at pressure to your rams & cylinders.

It can be used on any mobile machinery that is used intermittently such as those found on Ramps on trucks, trays on low loaders, Camper van or camper trailer leveling, or any other mobile hydraulic circuit requiring a low flow rate.

The 45 cc Unit is capable of generating up to 280 bar Bar (4,100 psi) Pressure at a flow of 2 liters per minute, so is more than capable of lifting very heavy loads.

There are options also for smaller pumps, 12cc or 25cc.

• The 12 cc Unit is capable of generating up to 380 bar Bar (5,500 PSI) Pressure at a flow of 0.5 liters per minute.
• The 15 cc Unit is capable of generating up to 350 bar Bar (5,100 PSI) Pressure at a flow of 1.0 liters per minute,

This is a quality pump Manufactured in Italy to very high standards.

These Pumps are also available in a Single Acting cylinder formats & also Remote units allowing you to mount and use alternate oil tanks elsewhere.

• Pump size; 12cc, 25cc or 45 cc
• Flow approx. 2 liters per Minute with 45 cc pump at 170 Bar (2500 PSI)
• Max Pressure up to 350 BAR (5250 PSI)
• Pressure relief valve, adjustable from 40 - 350 BAR
• Ports 3/8" BSPP male outlets
• Liter capacity Oil tank.
• Flexible Mounting Positions can be mounted Horizontally or Vertically
