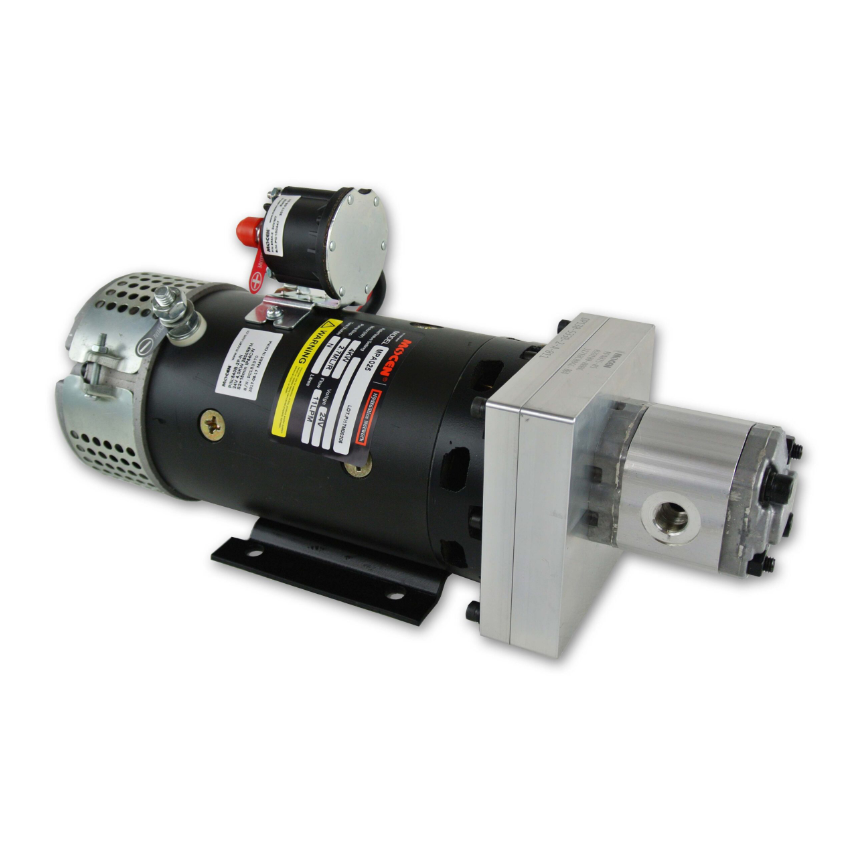

PTO Alternative for Trucks, uses a 4 kW 24 Volt DC Hydraulic Power Unit, Flows up to 12.9 Lt/min at 100 bar (1,500 psi) and 7.5 Lt/min at 210 bar (3,000 psi)

This is a High Power Unit with Pressure discharge and Tank Suction Ports directly connected to the pump.

Please note this Unit does not have a built in relief Valve but is available as an optional extra.

Used this 24 Volt DC Power unit is an alternative to a mechanical PTO pump. It has a high-output 24 V DC 4.0 kW Fan Cooled motor and is supplied with a 4.2cc pump, (these may be upsized or Down sized for no, or little extra cost, please see below.

Note: It does not come with an oil tank or a built in relief Valve.

We do have a unit with a tank as well. It is a pressure & suction setup from the pump. This unit can only be used intermittently, see the duty cycle below.

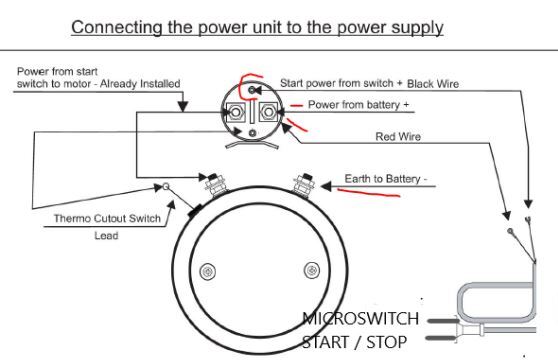

This unit will flow more oil up to 12.9 Lt/min at 100 bar: (1,500 psi) and has the capacity to produce up to 210 Bar of pressure (but at reduced 7.5 Lt/min oil flow), but keep in mind this unit draws high amperage between 140 and 2230 amps so large cross section cables must be used and High-quality batteries are required. It is ideal for cranes (you can hook up your valve micro switch auto start as per the diagram) or Medium-tipper trucks.

Some very large tipper trucks hoist rams can require 40-50 liters of oil to extend. This will be pushing the 'duty cycle' time, potentially causing the auto heat cut-out switch.

Not recommended for very large hoist rams.
Capable of generating up to 200 Bar (3000 PSI) Pressure.
Can be mounted Horizontally or Vertically (Motor Up)
This is a quality motor and pump Manufactured to very high standards.
Please watch the Video below to learn more about our DC power units

• Power Rating 24 DC, 4 KW
• Flow 7.5 - 12.9 liters Minute
• Max Pressure up to 200 BAR (3000 PSI) at 7.5 Lt/min
• Ports 1/2" BSPP
• Safety thermistors are installed in motor windings to prevent overheating.
• Duty Cycle; 150 seconds ON and 1100 seconds OFF.
• Dimensions 40.5 cm Long, 14 cm Wide and 20 cm High.
• Weight 26 KG We also offer ‘Depot to Depot’ freight as a cheaper alternative for larger items.
