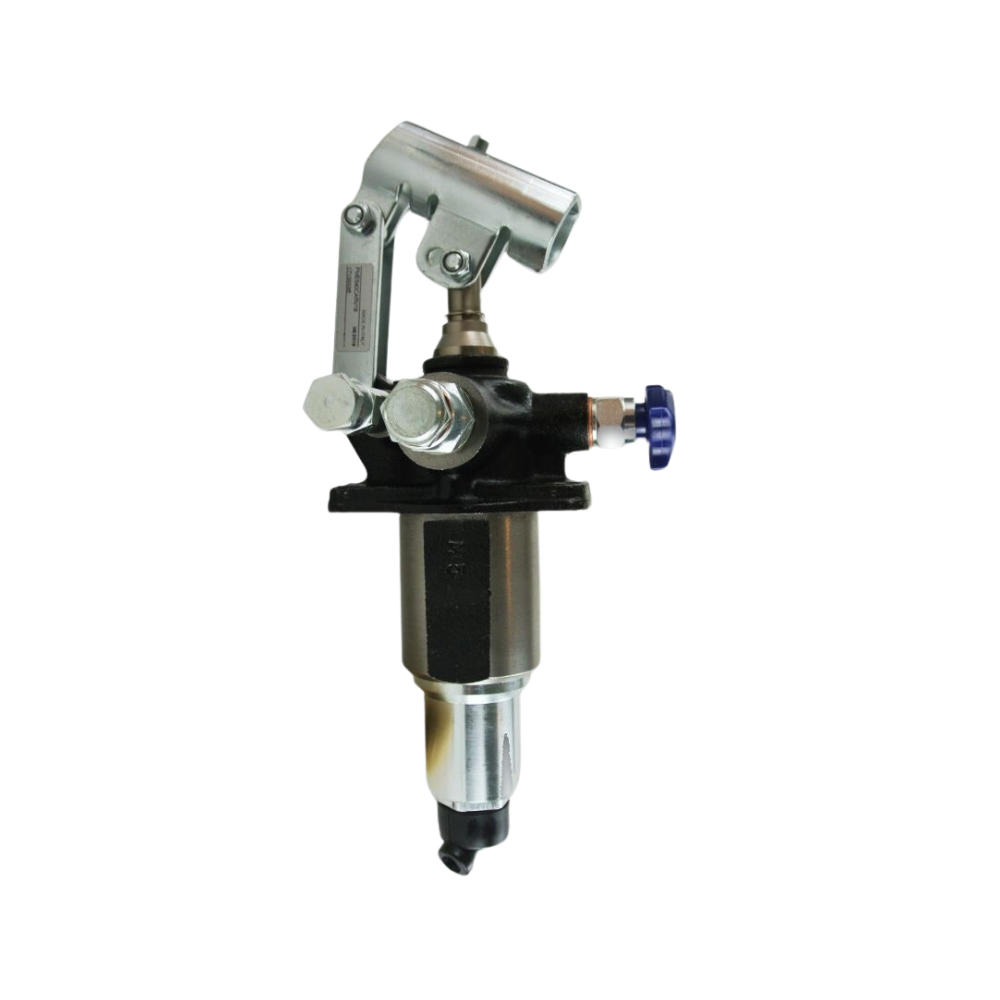

Hydraulic Hand Pump Hi-Lo Double Acting Fast Pumping
This is a brand new high-quality European-made hydraulic hand pump, with a Hi-Lo pump.

This means, your ram will extend rapidly whilst there is little weight on it.
Once the pump senses load, it drops to the small low-volume pump,
meaning you are easily able to lift big tonnage with little effort.

These hand pumps are an easy way to operate hydraulic cylinders on a multitude of machines & trucks.
This type of pump would be ideal for a tipping car towed trailer or a horse trailer ramp for example.
They are capable of lifting many tons of weight if used with hydraulic cylinders.

These pumps come in either single-acting or double acting (please see other listings).
Single acting is used for example if you only need to pump to raise a load, & gravity brings it back down.
Double acting powers both the up & down direction.

We do not have these in double acting. You could hook up pressure to a D/A control valve.

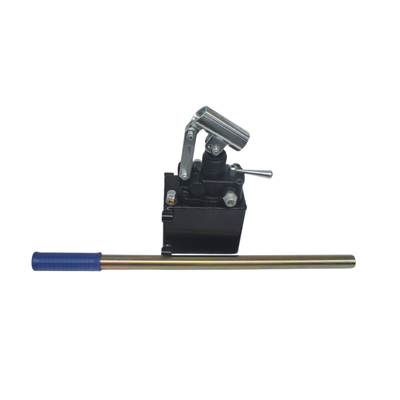

This pump comes with the 1-liter tank as standard.
We can also supply tanks in sizes from 1 liter to 10 liters.

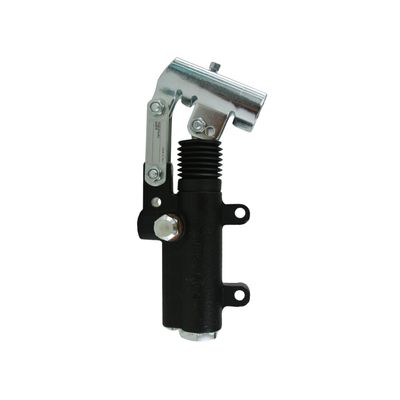

We also have in stock a 'remote' hand pump, which means you can mount just the pump head,
& run hoses to another or existing oil reservoir. Check out our other listings.

PRESSURE RATING
max 500 Bar/7500psi
Adjustable relief from 50-500 bar.
3/8"BSPP male outlet
Low Pressure 80 cc max 20 bar pressure per pump
High pressure 5 cc max 500 bar pressure per pump
