Hydraulic Power Pack for Crane Truck or for four separate functions or cylinders
12 - 24Volt DC with Four x Double Acting Cetop 3 valves Oil flow 5.0 Lt/Min at 3,000 PSI

Ideal for small applications for Crane Trucks, Hydraulic Power Unit , HIAB, UNICH. Motor Homes.

Powered by 12 or 24 Volt DC this compact Hydraulic Power Pack or HPU comprises a Motor, Pump, Tank & Four (4) Double Acting Solenoid valves. It is designed to supply an oil flow of 5 Lt/Min at a Pressure of 3000 PSI to three separate Hydraulic functions.

This is an ideal pump replacement to operate small truck-mounted Hiab-type cranes. This will lift full tonnage, & the 5 Lpm is an ideal speed for small cranes. We also have a more powerful unit, which will lift the same tonnage but will move your crane faster. This is a better choice for bigger cranes.

Also available from (1 to 6) Six Cetop 3 (sandwich valves with 2 to 12 solenoid coils) Please contact us for pricing.

by calling 07 5563 1982 or 1300 1 HOSES

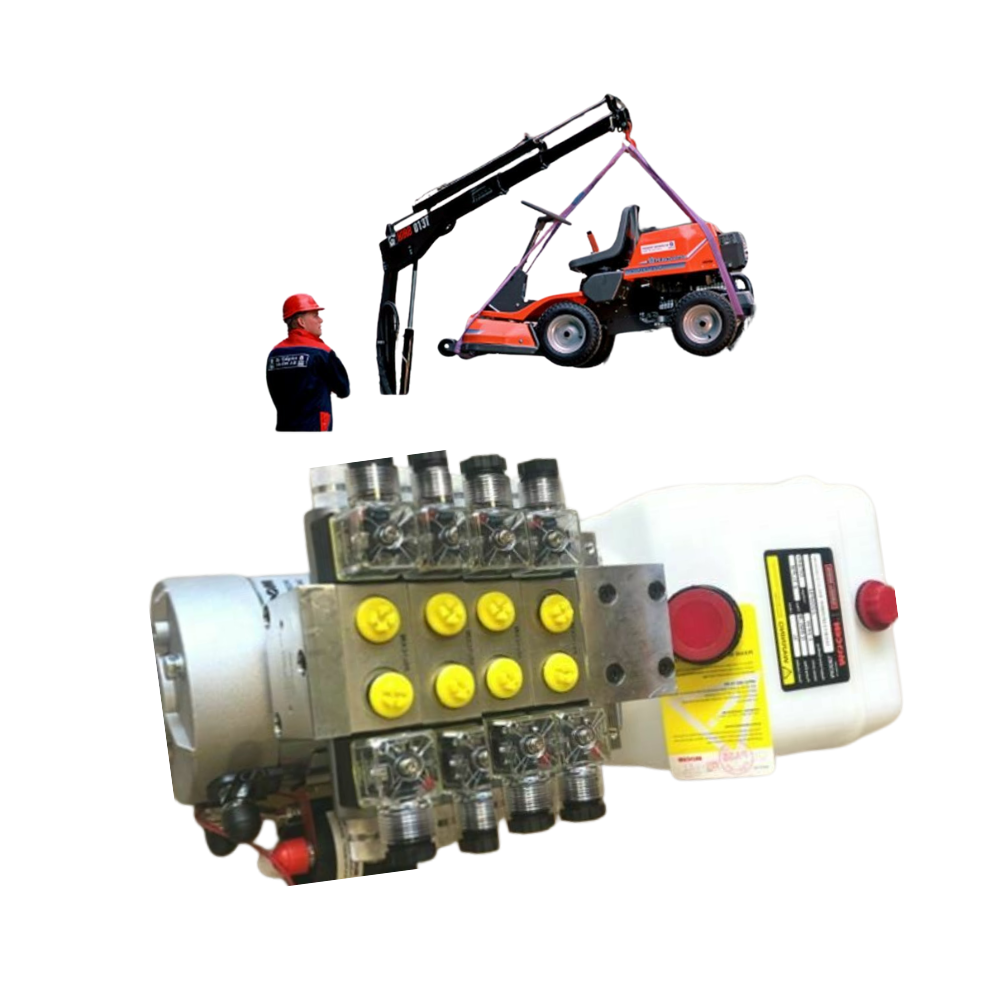

The photo is of the actual unit, however, STEEL tanks will now be supplied. Larger tanks are also available for marginal extra costs.

This unit is ready to be hooked up to your power cables, & can then be operated from the existing electric or remote control, or we can supply a 6-button pendant control or even a remote control unit. (See remote control listings below)

915 MHz 8 Button Radio Remote Control Kit Multi Purpose

Will suit any other 4 circuits with double acting hydraulic function requiring intermittent use, low flow, and high-pressure hydraulic oil.

This Unit is capable of generating up to 200 Bar (3000 PSI) Pressure at a reduced flow rate.

This is a quality motor and pump Manufactured in Shanghai to very high standards.
Buy with Confidence from a long-established Hydraulic Service Center and get a 12-month warranty and an Australian Tax Invoice.

Hydraulic Power Pack 12 or 24Volt DC
4 x Dbl Acting 5.0 Lt/Min Max 240 Bar

This is a higher quality unit than most offerings online and pump and motor are manufactured to very high standards.,

The 'duty' cycle is vastly superior, (see below). DC power uses a lot of current & produces a lot of heat, therefore depending on your usage needs, cheap units will fail quickly. This unit will produce 5 Lpm @ 3000 psi, but when your load, ie. cylinders are not under full tonnage, it will produce considerably more, meaning your cylinders move faster. 5 Lpm is the Minimum it will achieve.

• Power Rating 12 (1.6 KW) or 24 DC, 2.2 KW
• Flow 5.0 liters per Minute at 170 Bar (2500 PSI)
• Max Pressure up to 200 BAR (3000 PSI)
• Pressure relief valve Factory set at 140 BAR (2000 PSI)
• Ports 9/16 UNO
• Steel 3.8 Liter capacity Oil tank with combination breather/level plug and separate fill plug.
• Three Solenoids are mounted to a Steel Valve Block that has a spring to the center position with all Ports Closed in the center position.
• 8 Heavy Duty Solenoid Coils
• Manual Actuation or Override on Solenoid Spindles.
• LED Indicator Lights on Hirschmann Type cable connectors to coils
• Flexible Mounting Positions can be mounted Horizontally or Vertically (Motor Up)
• Safety thermistors are installed in motor windings to prevent overheating.
• Dimensions Length = 49 cm Width = 20 cm Height = 22 cm
• Weight 19 KG

Duty Cycles Explained

Duty Cycle = 25% at Low Duty, low load and pressure (600 PSI) = 100Amps Draw,
Allowable run time 12.5 minutes and then allowed to totally cool down.
or 150 seconds ON - 400 seconds OFF.

Duty Cycle = 19% at Medium duty medium load and pressure (1600 PSI) = 160 Amps Draw
Allowable run time of 7.5 minutes and then allowed to totally cool down.
or 150 seconds ON - 640 seconds OFF.

Duty Cycle = 7% 300 Amps High Duty High Load and pressure (3000 PSI) = 300 Amps Draw
Allowable run time 1.7 Minutes and then allowed to totally cool down
or 150 seconds ON and 2000 seconds OFF.
