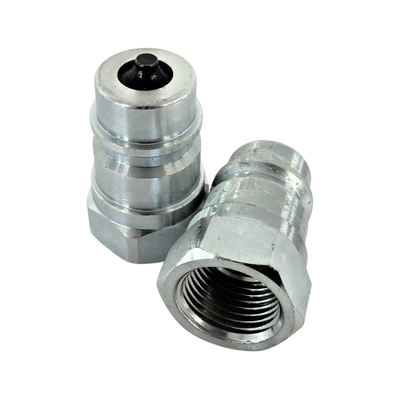

ISO7241-1 A-SERIES Poppets Male & Female set

These Hydraulic Poppet couplers are the most common agricultural use poppet style. They are used extensively in agricultural applications etc. They come with 1/4", 3/8" or 1/2" BSPP female threaded ends and are fully interchangeable Faster A/NV(1/2" size only), Parker 6600, Aeroquip FD56, Safeway S56, DNP PAV, Hansen HA15000, STUCCHI BIR , Ryco R81/82(1/2,3/4&1”sizes ONLY) These poppet couplers are designed and manufactured to conform to ISO 7241-1 Series A.These poppet couplers are designed and manufactured to conform to ISO 7241-1 Series A.
They are used to minimize the pressure drop characteristics and provide a positive sealing arrangement. Typical applications include Earthmoving equipment, construction, manufacturing, chemical processing, agricultural equipment, and general industrial machinery.
The above price is for one set, which includes one male and one female coupler
Need Other styles or sizes or Dust Caps and Plugs of couplers and or adaptors to suit your application? Just call us

Dimensions and Performance.

Threaded Connections BSPP Female
Operating Temperatures -20 to 100 degrees Celsius
Materials of Construction
Zinc-plated, heat-treated carbon steel. Nitrile ‘O’ ring seals with PTFE backing rings
Features
A positive, quick connection is ensured by the snap-together locking ball system.
When connected the male and female halves can rotate, even under pressure, thus avoiding any torsional stress in the flexible hoses.
Poppet valves have balanced springs and calibrated oil flow passages to minimize the pressure drop.
Poppet valve seals have shockproof protective edges.
Standard
This Series conforms to ISO 7241-1 Series A.
