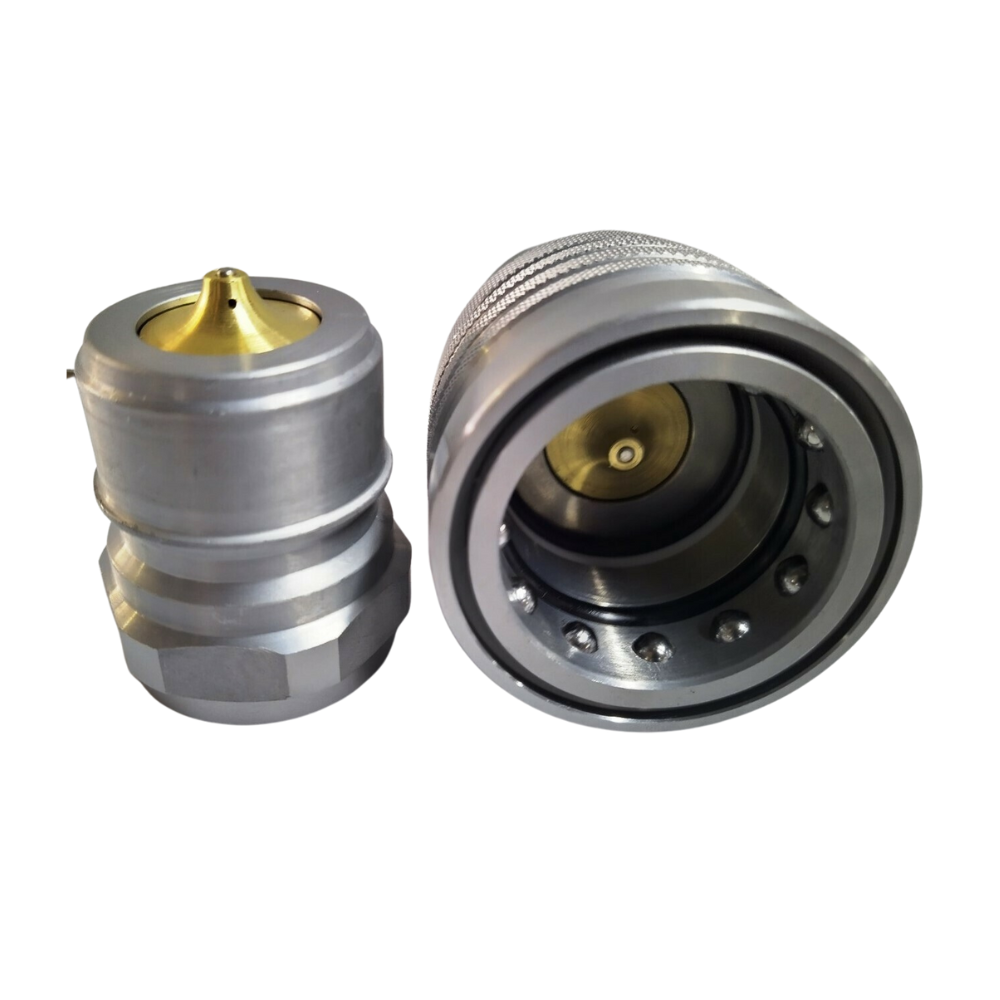

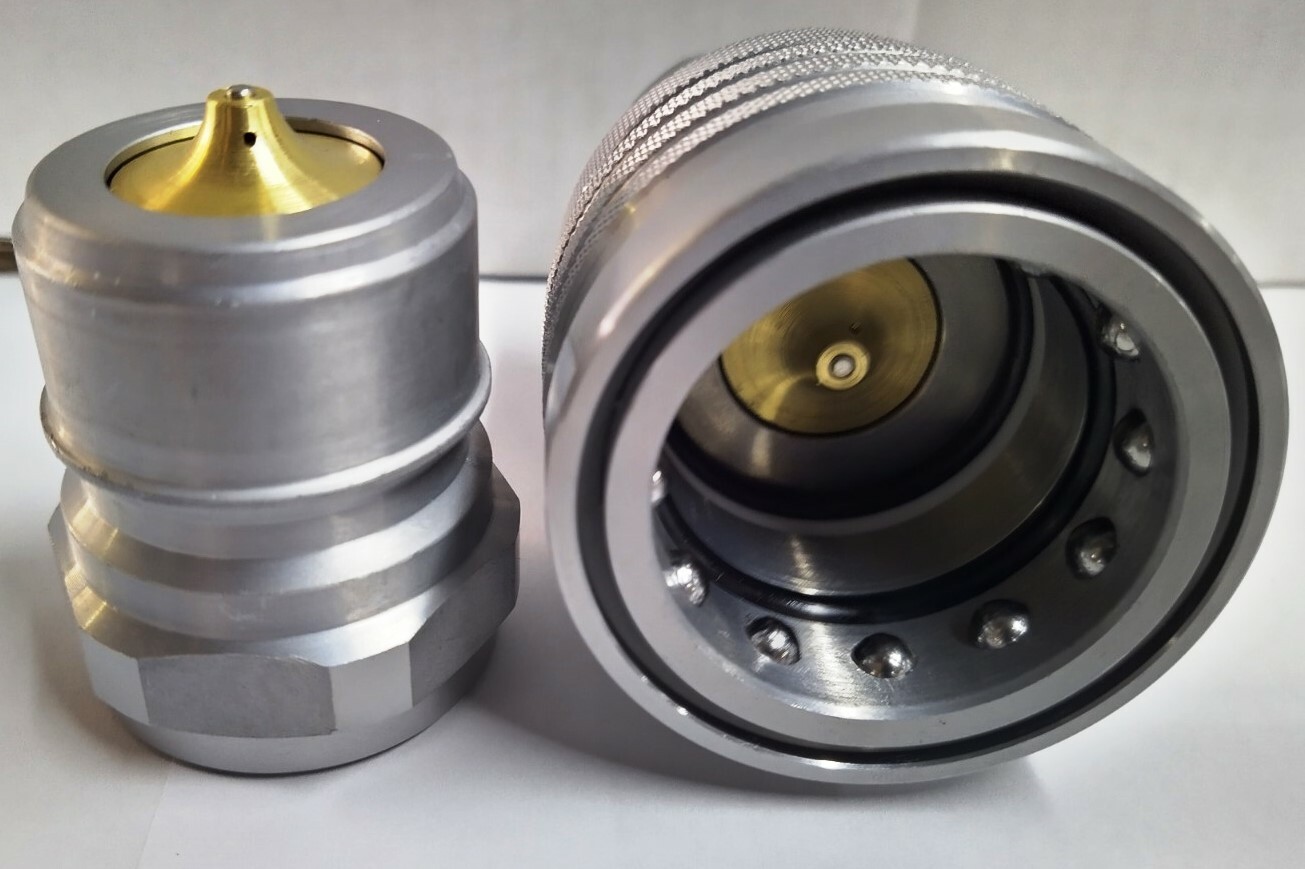

TEMA Type 7500 Hydraulic Quick Connect Coupling Size 3/4" with 3/4" BSPP ports and DECOMPRESSION nipple 4,500 psi

Tema Interchange couplers. 3/4" Bspp thread One Set

Description

These interchange/are compatible with; Tema series, Stucchi IRH , CEJN 525
These are Quality German made TEMA interchange hydraulic couplings,

They are widely used in the heavy transport industry.

Often found on truck & dog connections.

These are perfectly compatible with genuine Tema brand, & are of the same quality, but at a much better price.

These have a locking ring as per Tema, & have 'DECOMPRESSION' nipple for easy connections.

The above price is for one set of 3/4" BSPP (7520 and 7510) hydraulic couplers

(one set which includes one male and one female coupler)

These interchange/are compatible with; Tema series, Stucchi IRH , CEJN 525

Dimensions and Performance

• Threaded Connections 3/4" BSPP Female
• Rated Working Pressure 300 Bar (4500 PSI)
• Flow Rates From 212 Litres/Minute
• Operating Temperatures -20 to 100 degrees Celsius

Materials of Construction
Carbon steel body, treated to increase hardness and corrosion resistance,
Hardened Ball area, double O'rings & with backing rings

Weight
0.9 kg
