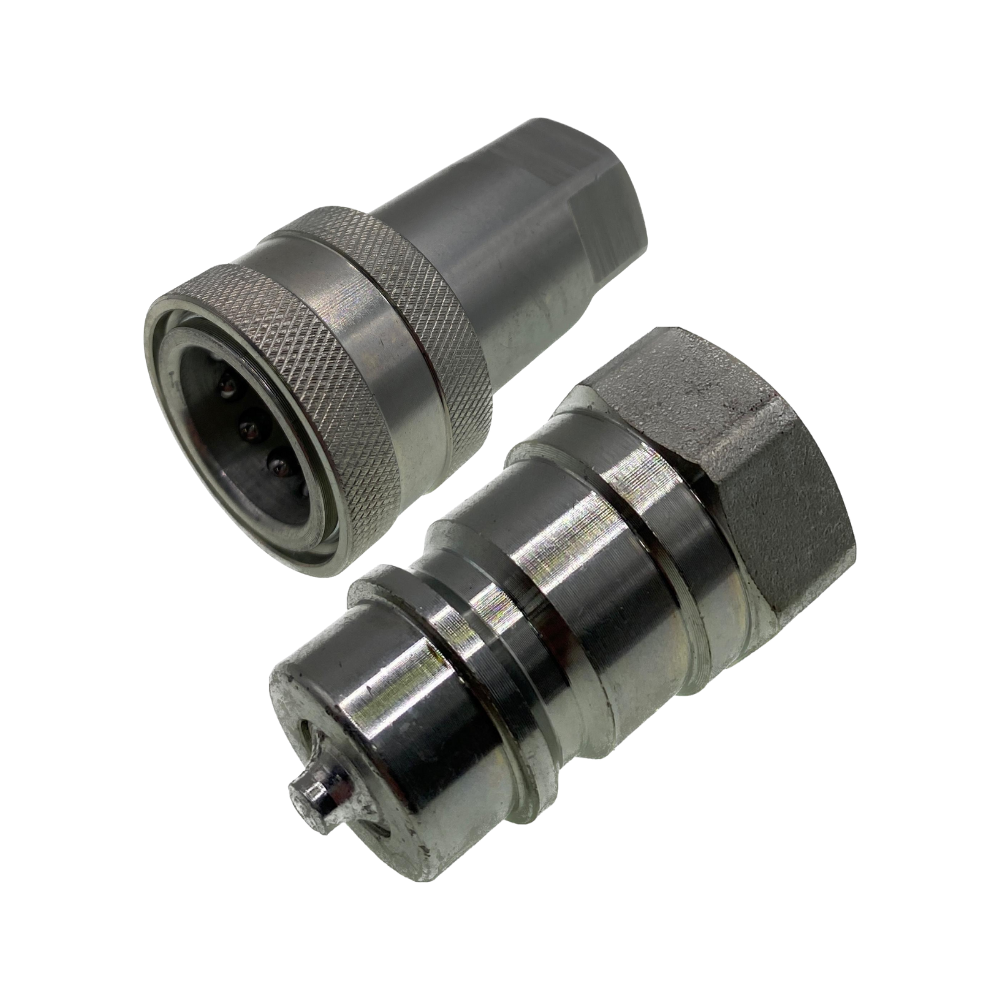

Pair of Male and Female ISO 7241 A Quick connect hydraulic couplings (1 x MALE plus 1 x FEMALE)

Widely used in Agricultural and earth moving equipment.

They are the ideal choice where a tough, durable product of superior quality and high oil flow is required.

We also have ISO 7241-1 Series A in another listing. If matching to existing poppets, you must check against Brand/series these interchange with.

These ISO A poppets Interchange with: Faster ANV, Parker 6600, Aeroquip FD56, Safeway S56, DNP PAV, Hansen HA15000

A poppet valve is used to minimize the pressure drop characteristics and provide a superior sealing fitment.

Typical applications include: Earthmoving Equipment, Tippers, Construction, manufacturing, chemical processing, agricultural equipment and general industrial machinery.

The above price is for one pair, (one set which includes one male and one female coupler)

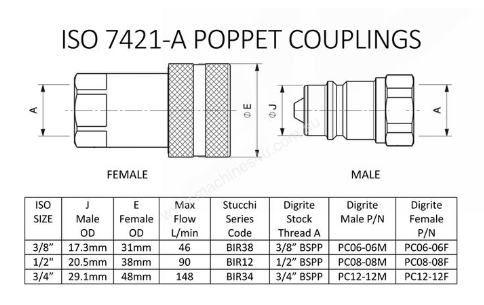

Dimensions and Specifications

• Threaded Connections BSPP Female
• Rated Working Pressure 230 Bar (3380 PSI)
• Flow Rates
• From 40 to 320 Litres/Minute
• Pressure drops less than 0.1 Bar @ 40 Litres / Minute
• 4 Bar @ 320 Litres / Minute
• Operating Temperatures -20 to 100 degrees Celsius
• Materials of Construction Zinc plated, heat treated carbon steel. Nitrile ‘O’ ring seals with PTFE backing rings

• Positive, quick connection ensured by the snap together locking ball system.
• When connected the male and female halves can rotate, even under pressure, thus avoiding any torsional stress in the flexible hoses.
• Poppet valves have balanced springs and calibrated oil flow passages to minimize the pressure drop.
• Poppet valve seals have shockproof protective edges
• ISO A
