High pressure rotating swivel couplers. Straight through or with a 90° degree outlet.

These rotating couplers used mainly in hydraulic applications.

Construction

• Constructed from Zinc plated Steel
• High pressure Swivel Couplings use one or two rows of multiple small hard chrome ball bearings.
• The bearings are installed in internally machined grooves, and have two main functions
• One to allow for easy and smooth rotation and
• Two to take up the internal pressures and prevent the two swivel components from coming apart.
• Seals such as 90 Duro Nitrile O rings and Teflon backing rings are used to prevent leakage.

Swivels can Also be Used for High Pressure Water applications with the fitment of a grease nipple.

Available in Various sizes and flows and pressure ratings
Please see options on right-hand side of this listing.

Useful for situations where turning or rotating machine parts twist hoses excessively.
For example on truck-mounted cranes and High Pressure Hose Reels.

These Swivel Fittings have BSPP threads.
See chart below for Maximum Flows and Pressures.

Please Note These swivels can be also be used for water, however fitment of a grease nipple is required.

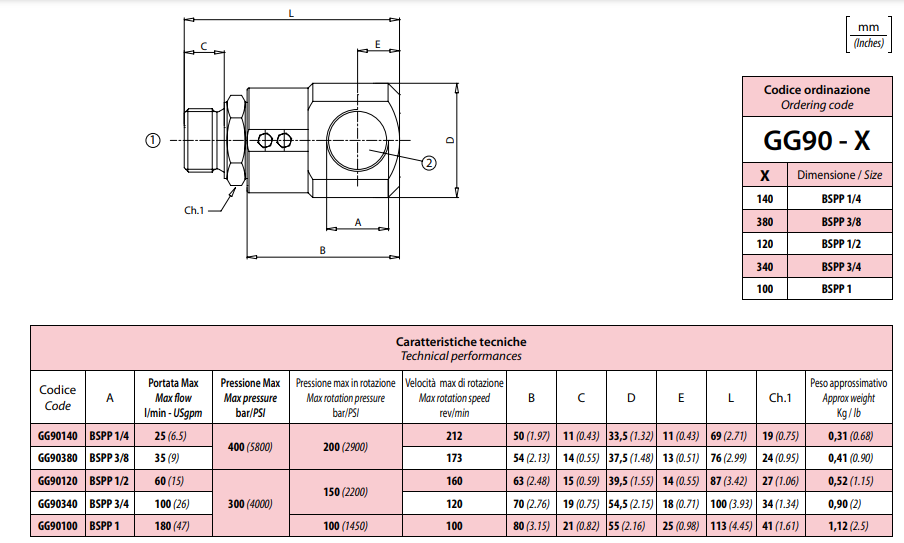

Below is a Chart on available Sizes, Maximum Flows,
Pressures and Rotation speeds of Various Swivel Couplings
