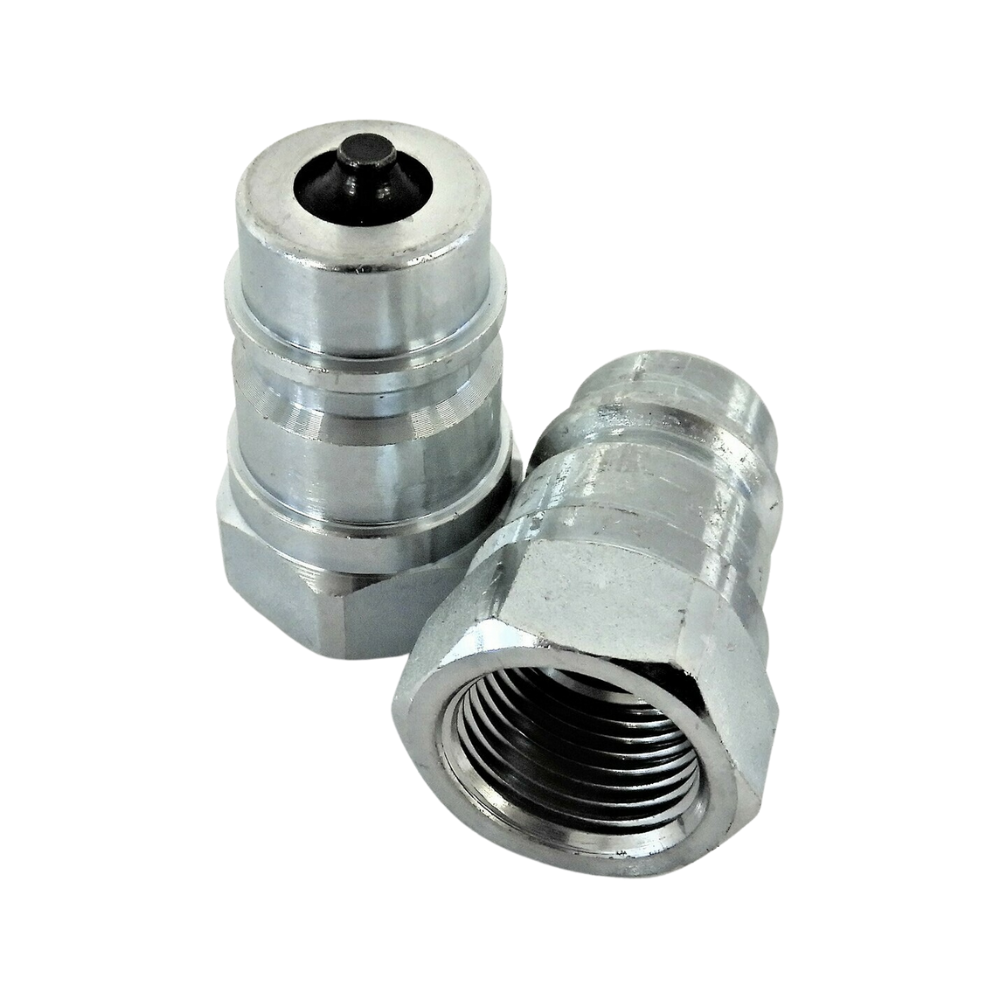

Hydraulic Coupling Poppet MALE ONLY ISO 7241-1 Series A sizes 1/4 ' to 1-1/4"
Pressures to 300 bar, Oil flows to 200 Lt/min

Iso 7241-1 A-Series Poppets

Hydraulic Poppet couplers are the most common poppet style. They are used extensively in agricultural applications etc. They come with 1/4", 3/8" ,1/2" , 3/4" 1" and 1-1/4" sizes all with BSPP female threaded ends.
Fully interchangeable with

• Faster ANV(1/2" size only),
• Parker 6600,
• Aeroquip FD56,
• Safeway S56,
• DNP PAV,
• Hansen HA15000,
• STUCCHI BIR ,
• Ryco R81/82(1/2,3/4&1”sizes ONLY)

These poppet couplers are designed and manufactured to conform to ISO 7241-1 Series A.

They are used to minimize the pressure drop characteristics and provide a positive sealing
arrangement.

Typical applications include Earthmoving equipment, construction, manufacturing, chemical processing, agricultural equipment, and general industrial machinery.
The above price is for one male only

Dimensions and Performance

• Threaded Connections BSPP Female
• Rated Working Pressure From 350 Bar (5000 PSI) for 1/4" to 230 Bar (3300psi) for 1"
• Flow Rates From 15 to 200 Litres/Minute
• Pressure drops; see chart in photos
• Operating Temperatures -20 to 100 degrees Celsius
• Materials of Construction
• Zinc-plated, heat-treated carbon steel. Nitrile ‘O’ ring seals with PTFE backing rings

Features

• A positive, quick connection is ensured by the snap-together locking ball system.
• When connected the male and female halves can rotate, even under pressure, thus avoiding any torsional stress in the flexible hoses.
• Poppet valves have balanced springs and calibrated oil flow passages to minimize the pressure drop.
• Poppet valve seals have shockproof protective edges.

This Series conforms to ISO 7241-1 Series A.
