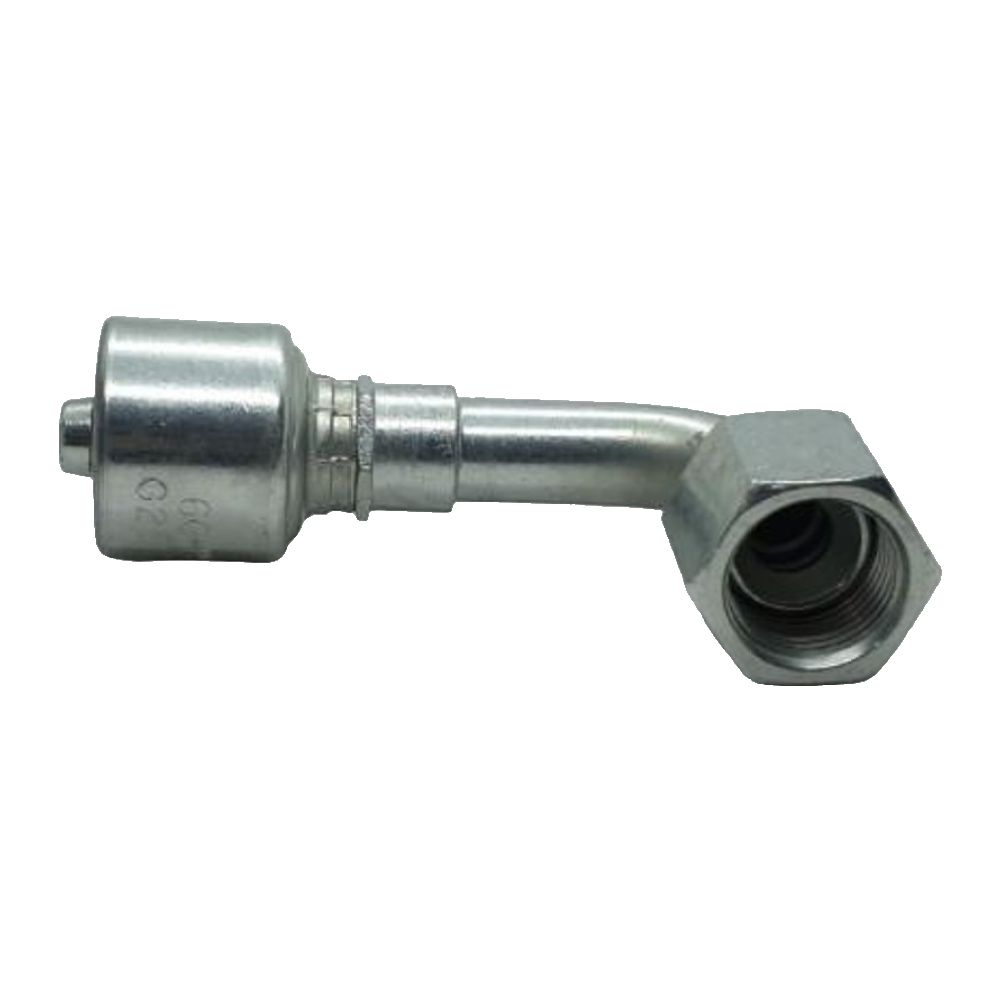

Hose Tail One Piece JIC Female 90° Swept - Gates

Name: Gates 1 Piece JIC Female 90° Swept Hose Tail | Hydraulic.Online
Brand: Gates
SKU: HTO-JIF-90S-GA
Price: 21.51 AUD
Availability: InStock

Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Hydraulic Hose Fittings Straight, 90° & 45°/JIC One Piece Hose Tails - Gates

SKU HTO-JIF-90S-0407-GA

AU$21.51

Size

Please choose

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Hose Tail One Piece JIC Female 90° Swept - Gates

Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Hydraulic Hose Fittings Straight, 90° & 45°/JIC One Piece Hose Tails - Gates

Product Details

Brand: Gates

Weight: 0.10 kg

Gates One Piece Jic 37° Flare Female Swivel 90° swept Hydraulic Hose Tail

Genuine Gates one piece JIC 37° flare female swivel 90° swept hydraulic hose fitting, engineered for SAE 100R1 (1 wire) and 100R2 (2 wire) braided hydraulic hose. This MegaCrimp® one piece coupling crimps directly onto the hose with no separate ferrule required – a 37° flare seat on a JIC 37° SAE J514 connection for a certified, leak-free seal every time.

Built for excavators, tractors, skid steers, loaders, agricultural and construction machinery and everyday hydraulic repairs. Precision CNC-formed, zinc-plated carbon steel for corrosion resistance and crimped to genuine Gates specifications.

Why buy from Hydraulic.Online?

100% genuine Gates MegaCrimp one piece coupling – not an import copy
Suits 1 & 2 wire braided hydraulic hose (SAE 100R1/R2, EN853)
No ferrule required – faster, stronger one piece crimp
Full size range – select your hose & thread size above
Bulk discounts applied automatically – buy more, save more
Fast dispatch Australia-wide from our Australian warehouse

Need help matching the right Gates JIC 37° flare female swivel fitting, ferrule or hose? Contact the Hydraulic.Online team before you buy. Crimp dimensions available as a downloadable Gates crimp chart on request.

Gates Part Numbers & Specifications

Size	Our SKU	Gates Part No	Gates Code	Barcode	L (mm)	Cut-off (mm)	Hex (mm)	Weight (kg)
(04) 1/4" x (07) 7/16"	HTO-JIF-90S-0407-GA	4G-4FJX90S	G25179-0404	—	—	—	—	—
(04) 1/4" x (08) 1/2"	HTO-JIF-90S-0408-GA	4G-5FJX90-023	G25179-0405	72053408218	62.2	36.2	17	0.18
(04) 1/4" x (09) 9/16"	HTO-JIF-90S-0409-GA	4G-6FJX90S	G25179-0406	72053323214	71.2	45.1	19	0.20
(06) 3/8" x (09) 9/16"	HTO-JIF-90S-0609-GA	6G-6FJX90S	G25179-0606	72053323221	78.6	50.7	19	0.24
(06) 3/8" x (12) 3/4"	HTO-JIF-90S-0612-GA	6G-8FJX90S	G25179-0608	72053323252	80.7	52.8	24	0.31
(06) 3/8" x (14) 7/8"	HTO-JIF-90S-0614-GA	6G-10FJX90M	G25180-0610	72053676211	82.5	54.6	27	0.35
(08) 1/2" x (12) 3/4"	HTO-JIF-90S-0812-GA	8G-8FJX90S	G25179-0808	72053323276	81	43.6	24	0.39
(08) 1/2" x (14) 7/8"	HTO-JIF-90S-0814-GA	8G-10FJX90S	G25179-0810	72053323306	93.3	55.8	27	0.51
(08) 1/2" x (17) 1-1/16"	HTO-JIF-90S-0817-GA	8G-12FJX90S	G25179-0812	72053530766	69.3	70	32	0.66
(10) 5/8" x (14) 7/8"	HTO-JIF-90S-1014-GA	10G-10FJX90-036	G25179-1010	72053172119	89	51.5	27	0.53
(10) 5/8" x (17) 1-1/16"	HTO-JIF-90S-1017-GA	10G-12FJX90S	G25179-1012	72053172133	107.3	69.8	32	0.65
(12) 3/4" x (17) 1-1/16"	HTO-JIF-90S-1217-GA	12G-12FJX90S	G25179-1212	72053323320	122.4	71.4	32	0.84
(12) 3/4" x (19) 1-3/16"	HTO-JIF-90S-1219-GA	12G-14FJX90-054	G25179-1214	72053408560	124	73	36	0.90
(12) 3/4" x (21) 1-5/16"	HTO-JIF-90S-1221-GA	12G-16FJX90S	G25179-1216	770075154921	132.7	81.7	41	1.20
(16) 1" x (17) 1-1/16"	HTO-JIF-90S-1617-GA	—	—	—	—	—	—	—
(16) 1" x (21) 1-5/16"	HTO-JIF-90S-1621-GA	16G-16FJX90S	G25179-1616	72053323351	145.6	88.8	41	1.43
(16) 1" x (26) 1-5/8"	HTO-JIF-90S-1626-GA	16G-20FJX90S	G25179-1620	72053456479	157	100.2	50	1.95

Swipe sideways on mobile to view all columns.
