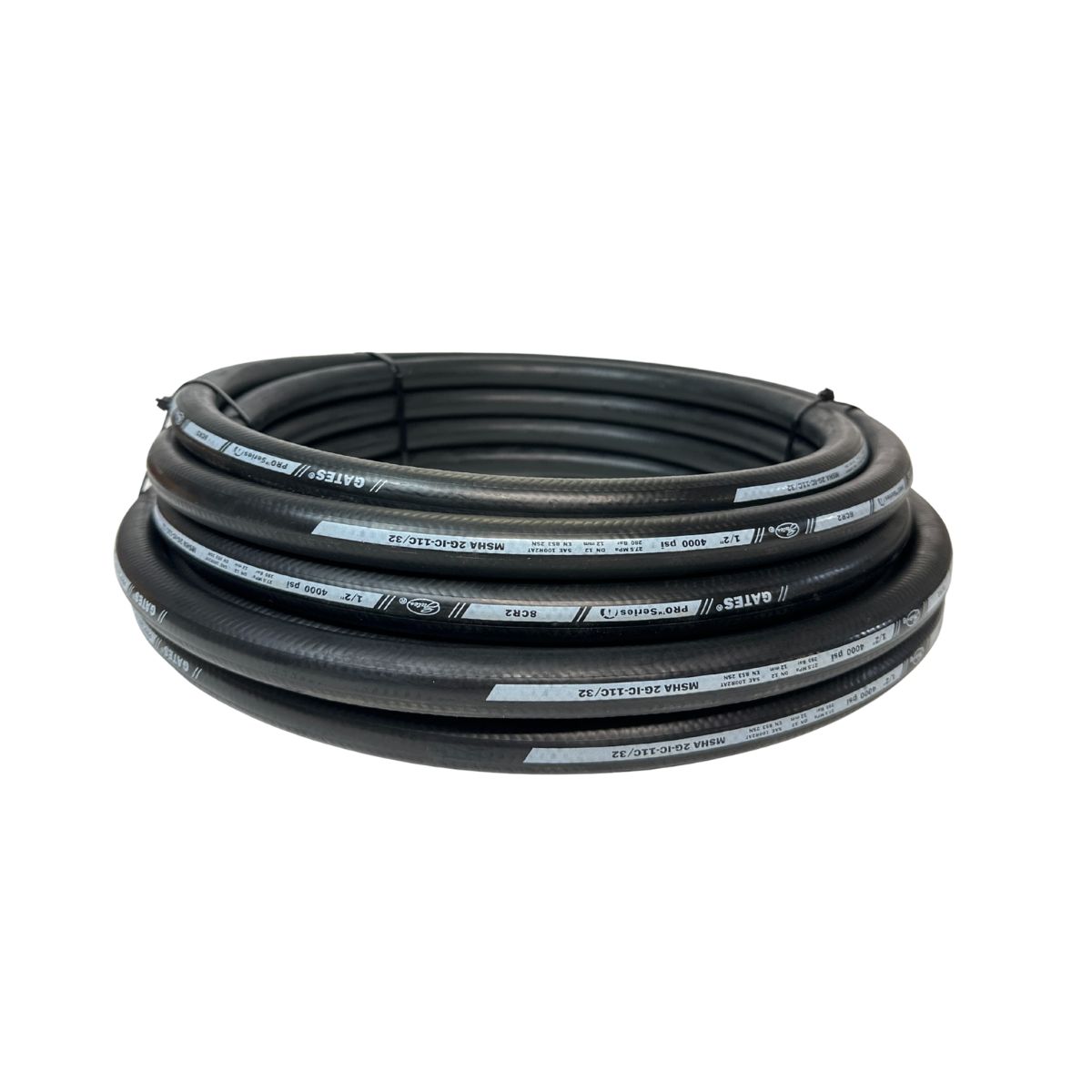

100 meter Reel of GATES 8 CR2 Pro Series 1/2" ID 275 Bar (4,000 PSI) working pressure Smooth Cover Flame Resistant Two Wire Hydraulic Hose with MSHA Certification.

The smooth tough skinned Hydraulic Hose is also very flexible with a 180 mm minimum bend radius. It suits either one or two Piece crimp on hose fittings as well as our DIY Field Fit Reusable hose fittings.

SAE 100R2 – 08 is compatible with DIN Spec EN 853 2SN, Non Skive Two Wire Hydraulic Hose.

Buy it now online All GATES CR1 and CR2 hydraulic Hoses in One Place

Construction: Synthetic rubber inner tube with one layer of braided high tensile steel wire reinforcement and a oil, Ozone, weather and abrasion resistant synthetic rubber outer cover.

Application: High pressure service with petroleum base hydraulic fluids, water , Air, water-glycol, hot oil, grease, lubricants, crude and fuel oils. For air applications above 100psi the cover should be pin pricked

Hose Specifications:

• ID 12.7 mm OD 21.6 mm
• Pressure Ranges
• Working Pressure: 275 Bar (4,000 PSI)
• Burst Pressure: 16,000 PSI (Minimum)
• Range of Temperature -40⁰C to + 100⁰C
• Minimum Bend Radius 180 mm
• Weight 0.60 KG / M

Postage

Please contact us for a more competitive shipping rate. We are able to send through freight depot to depot.
