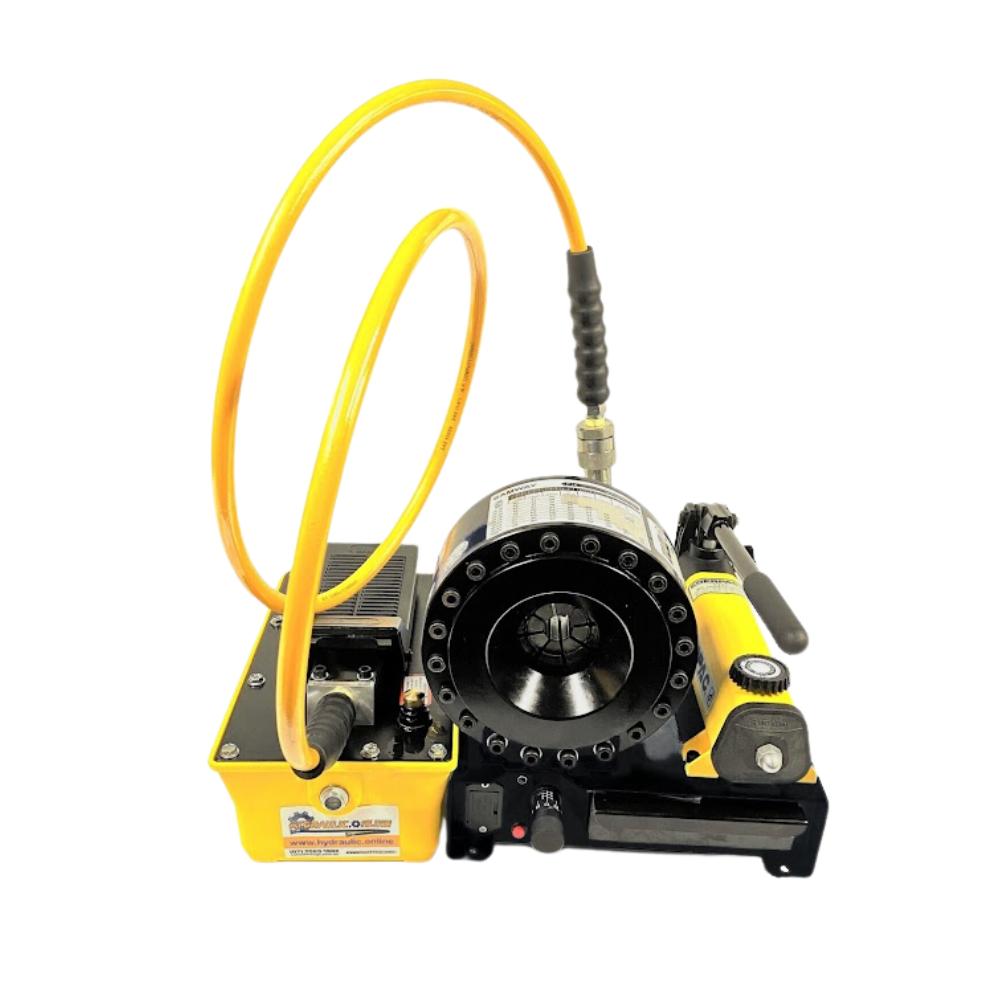

Portable Hand Operated Hydraulic Hose Crimper, with Enerpac and Air Operated 10,000 psi pump.

Downloadable user manual: Click here

Comes with 8 Die sets to be able to Crimp Diameters from 10 to 45 mm.

Crimps up to 3/4 inch 4,000 psi SAE 100R12 Hydraulic Hose fittings
for example Ryco T700 series, Taipan "L" series as well as our own super "K" series .

Up to one inch two wire can be crimped with an ENGMATTEC Mini Portable Hydraulic Hose Press

This Portable Hydraulic Hose Crimper come with 8 sets of Dies and an "Enerpac" P392 two stage High Speed
10,000 psi hand-operated Pump as well as an optional compressed air-operated 10,000 psi
foot or hand-actuated pump.

Compared to a single-speed type hand pump the Enerpac P392: Hand actuated pump is a 2 speed pump and can reduce the number of hand strokes to complete a full crimp by as much as 75%.

The 2 speed design will deliver high flow and low pressure such as when closing the crimper dies until the dies start to contact the hose fitting to be crimped and the pressure and load start to increase.
When this point is reached, the pump will automatically switch to the low flow high-pressure stage.

This great combo makes this crimper more user-friendly,
faster and less taxing on the body especially if you are making multiple hose assemblies.

Simply screw on the High-pressure quick connector hose to the coupler supplied on this model crimper,
plug air into the foot pedal, & you will have both hands free to hold and guide the hose-crimping process.

Important When using the foot pedal, you must CLOSE the hand pump release valve,
otherwise fluid will run in & out of the hand pump.

Simply use the foot pedals release function.

Shipping for this unit is ex-Gold Coast. Please allow approx. 2 days dispatch time.
Also Included is a Plastic Storage case for your die sets.
It is highly recommended to NOT store the die sets in the draw if moving the machine

because when carrying the unit to the site, you could lose a die making that size useless.

Packed weight (for shipping): 53kg Dry weight: 30kg + pedal 7kgs

• Capable of Crimping hoses from 1/8 inch up to 1 inch 2 wire.
• Capable of Crimping 4,000 PSI 100R12 four wire hoses from 3/8 inch up to 3/4" inch.
• Can generate up to 95 tons of Pressing Crimping Swaging Pressure.
• Easy to change out and replace dies for other sizes.
• Removable Crimp Head for even tighter access jobs.
• Micrometer style "Crimp Diameter" setting dial with Red LED indicator light.
• Repeatable and reliable crimp diameters (Accuracy 0.05mm)
• Dimension 400 long x 330 wide x 280 mm high, Weight = 30 KG

Specifically designed for field service work when repairs and or final installs must be made on-site.

Earthmoving, Automotive, and Marine, the applications for this unit are endless.If you have you ever had to Cut out a damaged section in a long hose that winds and snakes its way through a machine or ship's engine room then this is the machine you are going to need?

Capable of doing multiple crimps with little effort.

This portable crimping machine is an excellent addition to your maintenance and repair services.

Simple and straightforward in construction, easy to operate and maintain, and highly reliable.

Below Video Is The Latest Portable Crimper now supplied with a
High Speed ENERPAC 10,000 psi Hand Operated pump.
