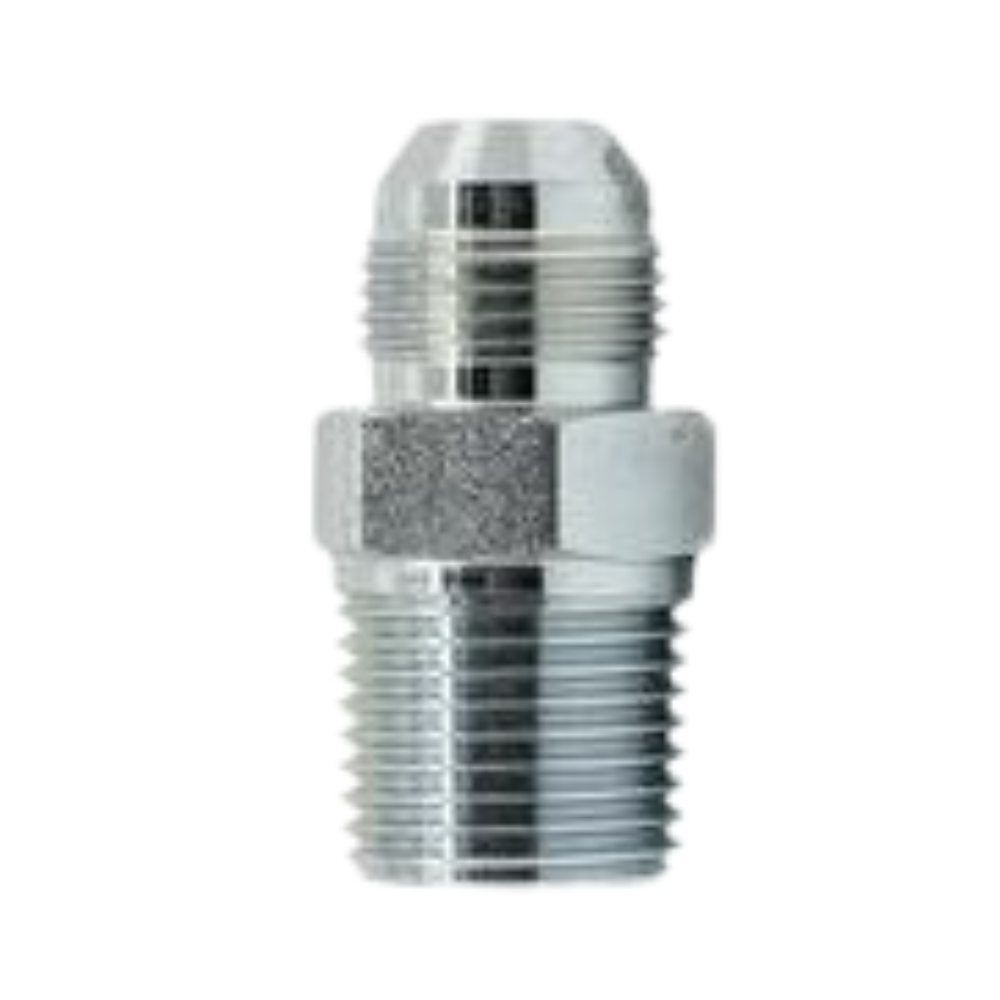

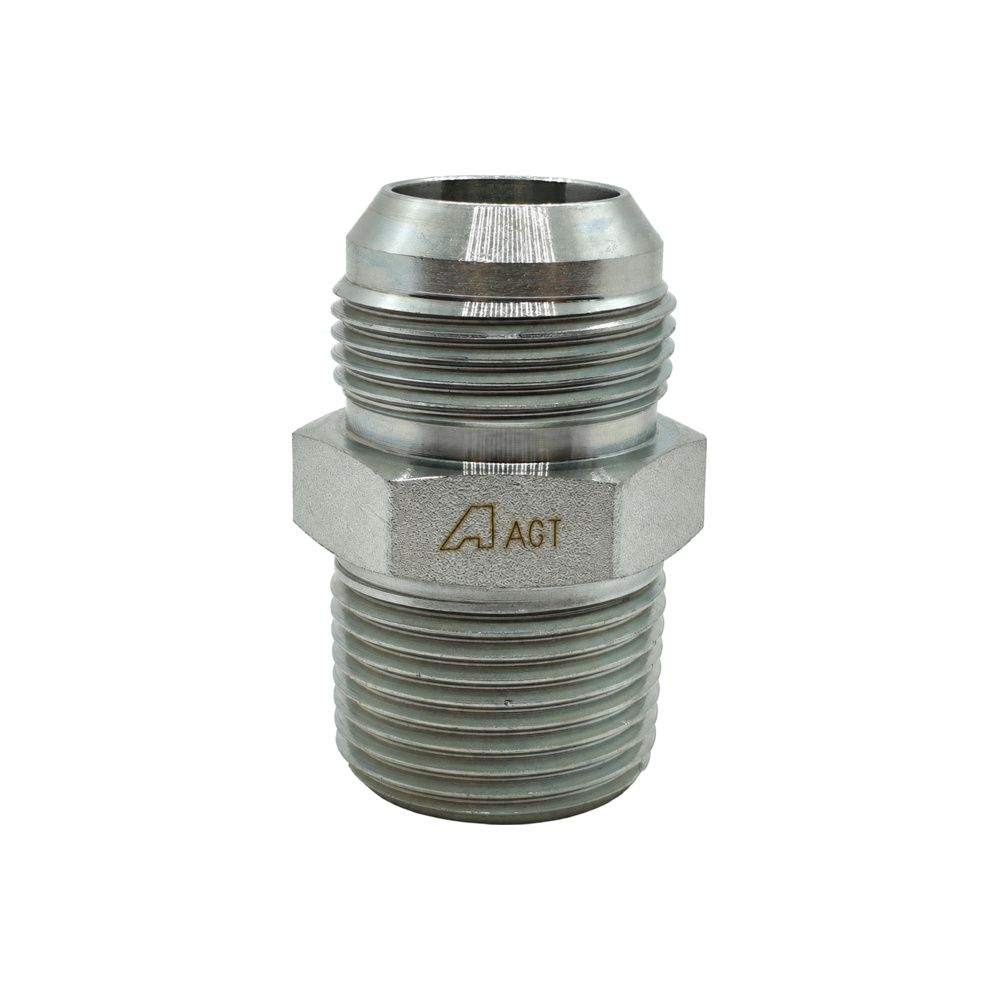

BSP Tapered Male x JIC 37° Male Straight Adaptor

The BSPT-to-JIC straight nipple, and one of the most-used adaptors on the truck. Tapered male screws into the Australian-standard port, JIC male takes the imported hose assembly, no change of direction.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself, so it needs PTFE tape or a liquid thread sealant.
• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.

How to Choose

• The BSPT end needs tape or sealant. The JIC end takes none - getting that backwards is the most common cause of a leak on this fitting.
• JIC 37° will not seal against a BSP 60° cone even though the nut threads on.
• Size each end separately to suit the port and the hose.

Technicians Advice

On a machine that has been repaired before, look at the cone before fitting a new hose. A witness ring at the wrong angle means someone has run a BSP hose end onto the JIC seat, and that cone will not seal reliably again however much torque it gets.

Where You’ll Find It

• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.
• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.

Cross-Reference

• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.
• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H1	Material	Finish
BTM-JIM-0207	7/16" JIC	1/8" BSPT	28mm	12mm	Mild steel	Plated finish
BTM-JIM-0208	1/2" JIC	1/8" BSPT	30mm	12mm	Mild steel	Plated finish
BTM-JIM-0209	9/16" JIC	1/8" BSPT	30mm	12mm	Mild steel	Plated finish
BTM-JIM-0407	7/16" JIC	1/4" BSPT	35mm	14mm	Mild steel	Plated finish
BTM-JIM-0408	1/2" JIC	1/4" BSPT	34mm	14mm	Mild steel	Plated finish
BTM-JIM-0409	9/16" JIC	1/4" BSPT	34mm	17mm	Mild steel	Plated finish
BTM-JIM-0412	3/4" JIC	1/4" BSPT	39mm	22mm	Mild steel	Plated finish
BTM-JIM-0607	7/16" JIC	3/8" BSPT	35mm	17mm	Mild steel	Plated finish
BTM-JIM-0608	1/2" JIC	3/8" BSPT	35mm	19mm	Mild steel	Plated finish
BTM-JIM-0609	9/16" JIC	3/8" BSPT	34mm	17mm	Mild steel	Plated finish
BTM-JIM-0612	3/4" JIC	3/8" BSPT	39mm	22mm	Mild steel	Plated finish
BTM-JIM-0614	7/8" JIC	3/8" BSPT	43mm	24mm	Mild steel	Plated finish
BTM-JIM-0617	1.1/16" JIC	3/8" BSPT	46mm	30mm	Mild steel	Plated finish
BTM-JIM-0807	7/16" JIC	1/2" BSPT	41mm	22mm	Mild steel	Plated finish
BTM-JIM-0809	9/16" JIC	1/2" BSPT	41mm	22mm	Mild steel	Plated finish
BTM-JIM-0812	3/4" JIC	1/2" BSPT	45mm	22mm	Mild steel	Plated finish
BTM-JIM-0814	7/8" JIC	1/2" BSPT	47mm	24mm	Mild steel	Plated finish
BTM-JIM-0817	1.1/16" JIC	1/2" BSPT	51mm	30mm	Mild steel	Plated finish
BTM-JIM-0821	1.5/16" JIC	1/2" BSPT	53mm	36mm	Mild steel	Plated finish
BTM-JIM-1209	9/16" JIC	3/4" BSPT	44mm	30mm	Mild steel	Plated finish
BTM-JIM-1212	3/4" JIC	3/4" BSPT	46mm	30mm	Mild steel	Plated finish
BTM-JIM-1214	7/8" JIC	3/4" BSPT	49mm	30mm	Mild steel	Plated finish
BTM-JIM-1217	1.1/16" JIC	3/4" BSPT	51mm	30mm	Mild steel	Plated finish
BTM-JIM-1219	1.3/16" JIC	3/4" BSPT	53mm	32mm	Mild steel	Plated finish
BTM-JIM-1221	1.5/16" JIC	3/4" BSPT	53mm	36mm	Mild steel	Plated finish
BTM-JIM-1612	3/4" JIC	1" BSPT	46mm	36mm	Mild steel	Plated finish
BTM-JIM-1614	7/8" JIC	1" BSPT	55mm	36mm	Mild steel	Plated finish
BTM-JIM-1617	1.1/16" JIC	1" BSPT	58mm	36mm	Mild steel	Plated finish
BTM-JIM-1619	1.3/16" JIC	1" BSPT	59mm	36mm	Mild steel	Plated finish
BTM-JIM-1621	1.5/16" JIC	1" BSPT	59mm	36mm	Mild steel	Plated finish
BTM-JIM-1626	1.5/8" JIC	1" BSPT	63mm	46mm	Mild steel	Plated finish
BTM-JIM-2017	1.1/16" JIC	1" BSPT	60mm	46mm	Mild steel	Plated finish
BTM-JIM-2021	1.5/16" JIC	1.1/4" BSPT	62mm	46mm	Mild steel	Plated finish
BTM-JIM-2026	1.5/8" JIC	1.1/4" BSPT	63mm	46mm	Mild steel	Plated finish
BTM-JIM-2030	1.7/8" JIC	1.1/4" BSPT	68mm	50mm	Mild steel	Plated finish
BTM-JIM-2421	1.5/16" JIC	1.1/2" BSPT	65mm	50mm	Mild steel	Plated finish
BTM-JIM-2426	1.5/8" JIC	1.1/2" BSPT	67mm	50mm	Mild steel	Plated finish
BTM-JIM-2430	1.7/8" JIC	1.1/2" BSPT	70mm	50mm	Mild steel	Plated finish
BTM-JIM-2440	2.1/2" JIC	1.1/2" BSPT	77mm	65mm	Mild steel	Plated finish
BTM-JIM-3226	1.5/8" JIC	2" BSPT	72mm	65mm	Mild steel	Plated finish
BTM-JIM-3230	1.7/8" JIC	2" BSPT	75mm	65mm	Mild steel	Plated finish
BTM-JIM-3240	2.1/2" JIC	2" BSPT	80mm	65mm	Mild steel	Plated finish

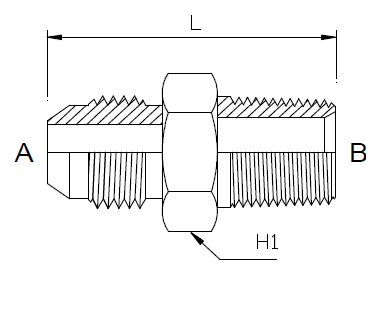

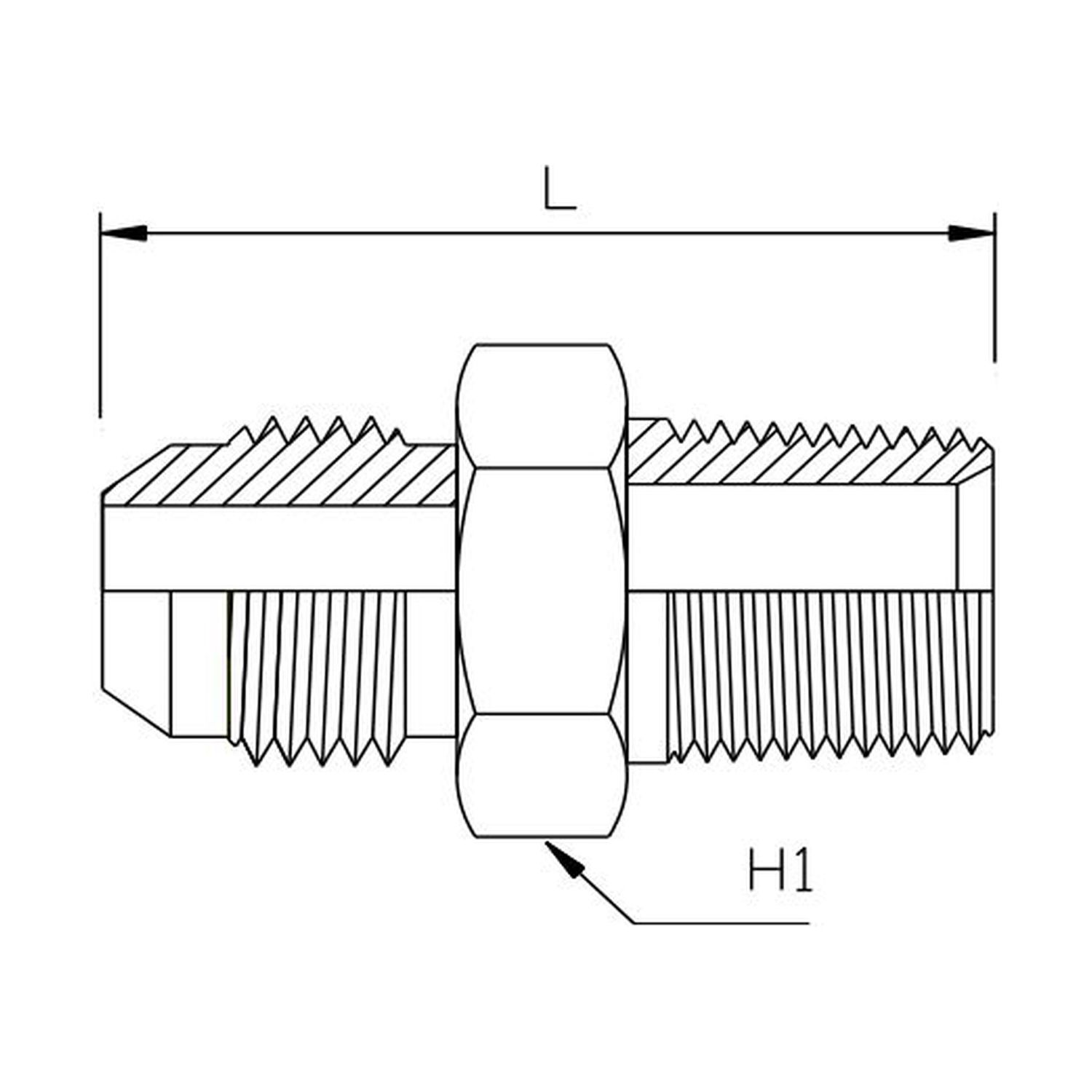

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
