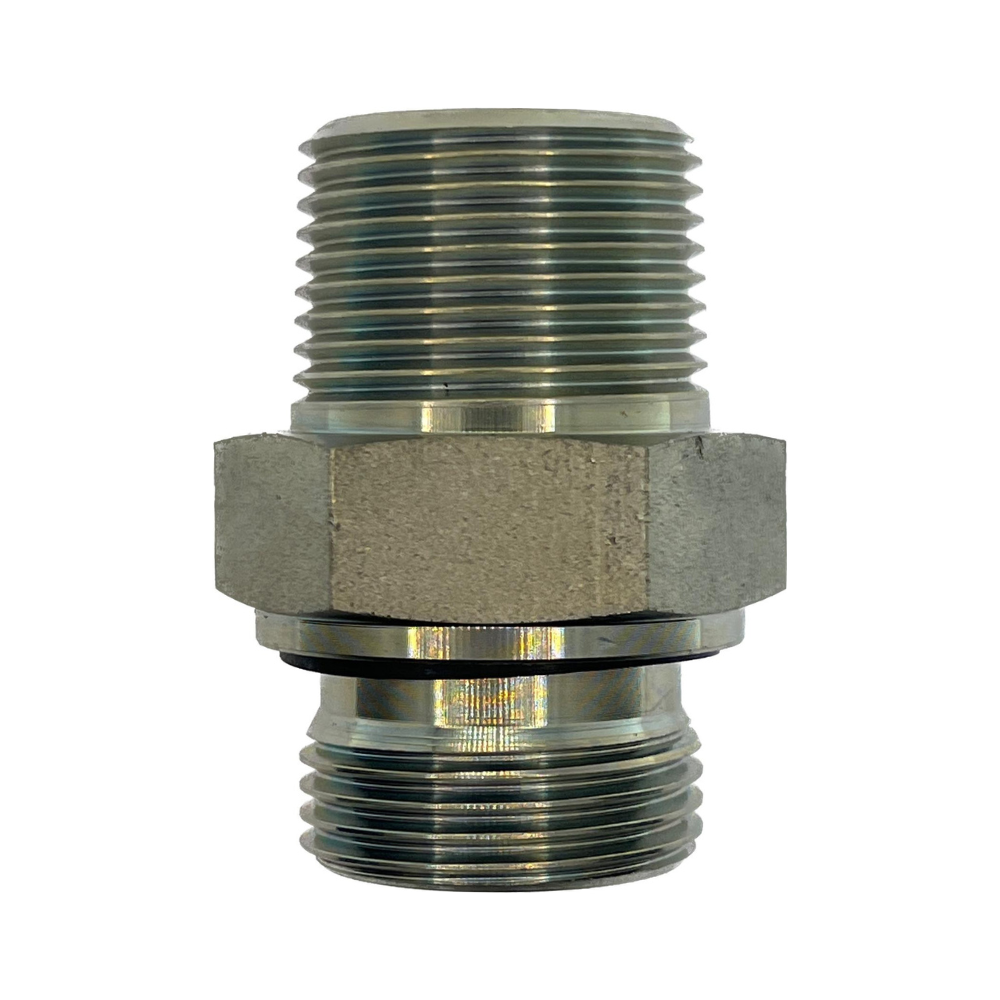

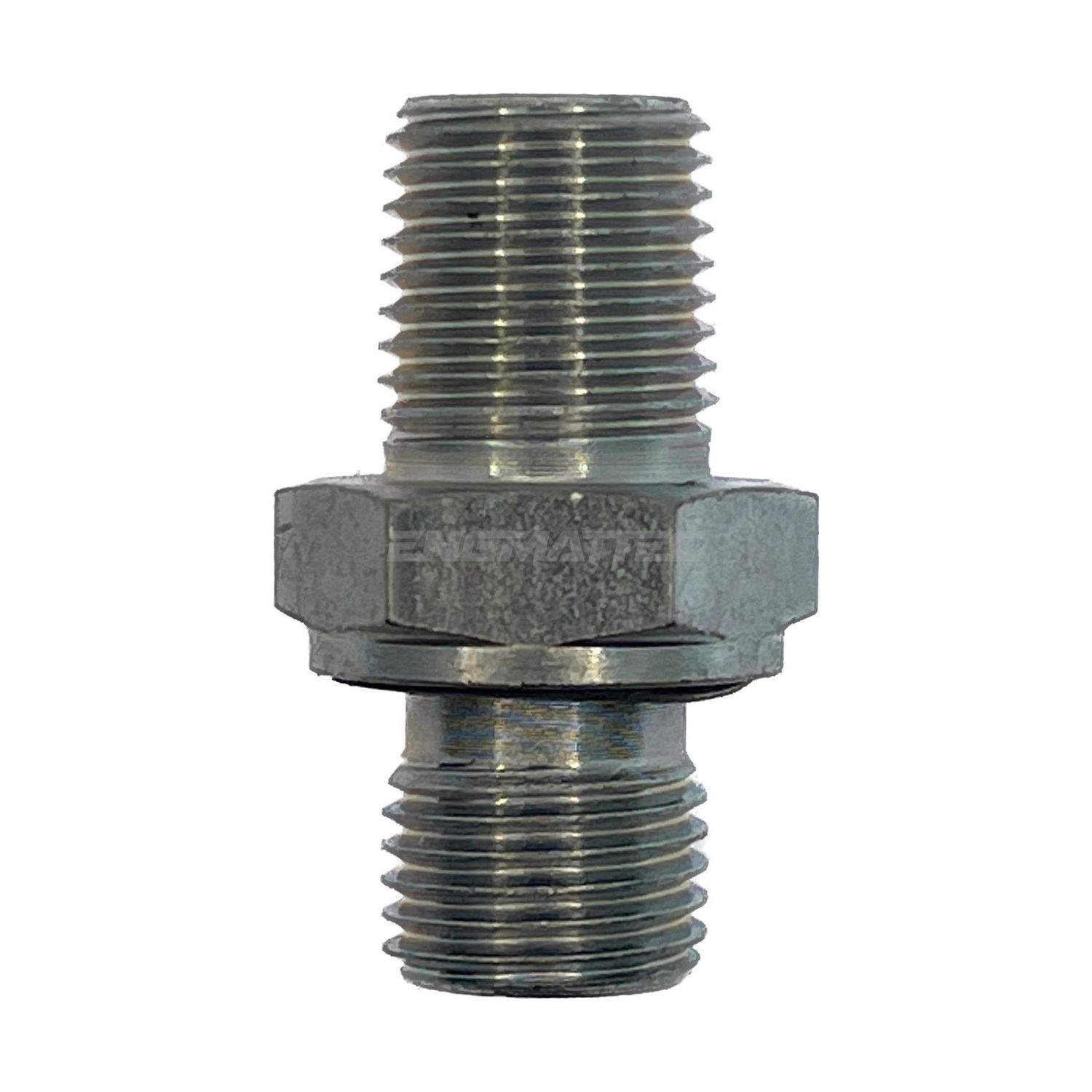

BSP Parallel Male x BSP Tapered Male Straight Adaptor

The parallel-to-tapered BSP crossover in a straight nipple. One end seals on a washer, the other on the thread, which makes it the fitting for getting off a tapered port into parallel plumbing.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Parallel Male – BSPP to ISO 228. It seals on a bonded washer against the port face or on a 60° cone, never on the thread itself.
• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself, so it needs PTFE tape or a liquid thread sealant.

How to Choose

• BSPP and BSPT share the same 55° form and pitch, so they start into each other happily and then leak. Identify the port before ordering.
• The tapered end needs tape or sealant. The parallel end needs a bonded washer and must stay dry.
• A tapered thread visibly narrows along its length; a parallel one measures the same at both ends.

Technicians Advice

Both ends are male BSP and look nearly identical in your hand. Mark the tapered end before you start, because taping the parallel end and washering the tapered end is a leak that can take an hour to find on a machine.

Where You’ll Find It

• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.
• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.

Cross-Reference

• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.
• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H1	Material	Finish
BPM-BTM-0202	1/8" BSPT	1/8" BSPP	25mm	14mm	Mild steel	Plated finish
BPM-BTM-0204	1/4" BSPT	1/8" BSPP	30mm	14mm	Mild steel	Plated finish
BPM-BTM-0402	1/8" BSPT	1/4" BSPP	30mm	19mm	Mild steel	Plated finish
BPM-BTM-0404	1/4" BSPT	1/4" BSPP	36mm	19mm	Mild steel	Plated finish
BPM-BTM-0406	3/8" BSPT	1/4" BSPP	37mm	22mm	Mild steel	Plated finish
BPM-BTM-0408	1/2" BSPT	1/4" BSPP	43mm	27mm	Mild steel	Plated finish
BPM-BTM-0604	1/4" BSPT	3/8" BSPP	37mm	22mm	Mild steel	Plated finish
BPM-BTM-0606	3/8" BSPT	3/8" BSPP	37mm	22mm	Mild steel	Plated finish
BPM-BTM-0608	1/2" BSPT	3/8" BSPP	44mm	27mm	Mild steel	Plated finish
BPM-BTM-0612	3/4" BSPT	3/8" BSPP	45mm	30mm	Mild steel	Plated finish
BPM-BTM-0804	1/4" BSPT	1/2" BSPP	42mm	27mm	Mild steel	Plated finish
BPM-BTM-0806	3/8" BSPT	1/2" BSPP	42mm	27mm	Mild steel	Plated finish
BPM-BTM-0808	1/2" BSPT	1/2" BSPP	47mm	27mm	Mild steel	Plated finish
BPM-BTM-0812	3/4" BSPT	1/2" BSPP	47mm	32mm	Mild steel	Plated finish
BPM-BTM-0816	1" BSPT	1/2" BSPP	53mm	36mm	Mild steel	Plated finish
BPM-BTM-1206	3/8" BSPT	3/4" BSPP	45mm	32mm	Mild steel	Plated finish
BPM-BTM-1208	1/2" BSPT	3/4" BSPP	47mm	32mm	Mild steel	Plated finish
BPM-BTM-1212	3/4" BSPT	3/4" BSPP	47mm	32mm	Mild steel	Plated finish
BPM-BTM-1216	1" BSPT	3/4" BSPP	51mm	41mm	Mild steel	Plated finish
BPM-BTM-1220	1.1/4" BSPT	3/4" BSPP	59mm	46mm	Mild steel	Plated finish
BPM-BTM-1608	1/2" BSPT	1" BSPP	54mm	41mm	Mild steel	Plated finish
BPM-BTM-1612	3/4" BSPT	1" BSPP	52mm	41mm	Mild steel	Plated finish
BPM-BTM-1616	1" BSPT	1" BSPP	55mm	41mm	Mild steel	Plated finish
BPM-BTM-1620	1.1/4" BSPT	1" BSPP	61mm	46mm	Mild steel	Plated finish
BPM-BTM-2016	1" BSPT	1.1/4" BSPP	56mm	50mm	Mild steel	Plated finish
BPM-BTM-2020	1.1/4" BSPT	1.1/4" BSPP	59mm	50mm	Mild steel	Plated finish
BPM-BTM-2024	1.1/2" BSPT	1.1/4" BSPP	65mm	55mm	Mild steel	Plated finish
BPM-BTM-2416	1" BSPT	1.1/2" BSPP	–	–	Mild steel	Plated finish
BPM-BTM-2420	1.1/4" BSPT	1.1/2" BSPP	67mm	55mm	Mild steel	Plated finish
BPM-BTM-2424	1.1/2" BSPT	1.1/2" BSPP	59mm	55mm	Mild steel	Plated finish
BPM-BTM-3232	2" BSPT	2" BSPP	64mm	75mm	Mild steel	Plated finish

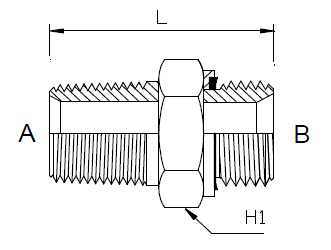

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
