SAE 100R1 - Single Wire Hydraulic hose 3/8" bore - 2,610 psi

Name: SAE 100R1 - One wire Hydraulic hose 3/8" bore - 2,610 psi
Brand: ENGMATTEC
SKU: H-R1-06-EN
Price: 92.0 AUD
Availability: InStock

Store/High Pressure Hose for Hydraulics 1, 2, 4 or 6 wire/100R1 One Wire SAE, MSHA (Mining) Rated Hydraulic Hose

SKU H-R1-06-EN

AU$92.00

Best Value

Length

Please choose

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Share this product with your friends

Share Share Pin it

SAE 100R1 - Single Wire Hydraulic hose 3/8" bore - 2,610 psi

Store/High Pressure Hose for Hydraulics 1, 2, 4 or 6 wire/100R1 One Wire SAE, MSHA (Mining) Rated Hydraulic Hose

Product Details

Brand: ENGMATTEC

Weight: 5.10 kg

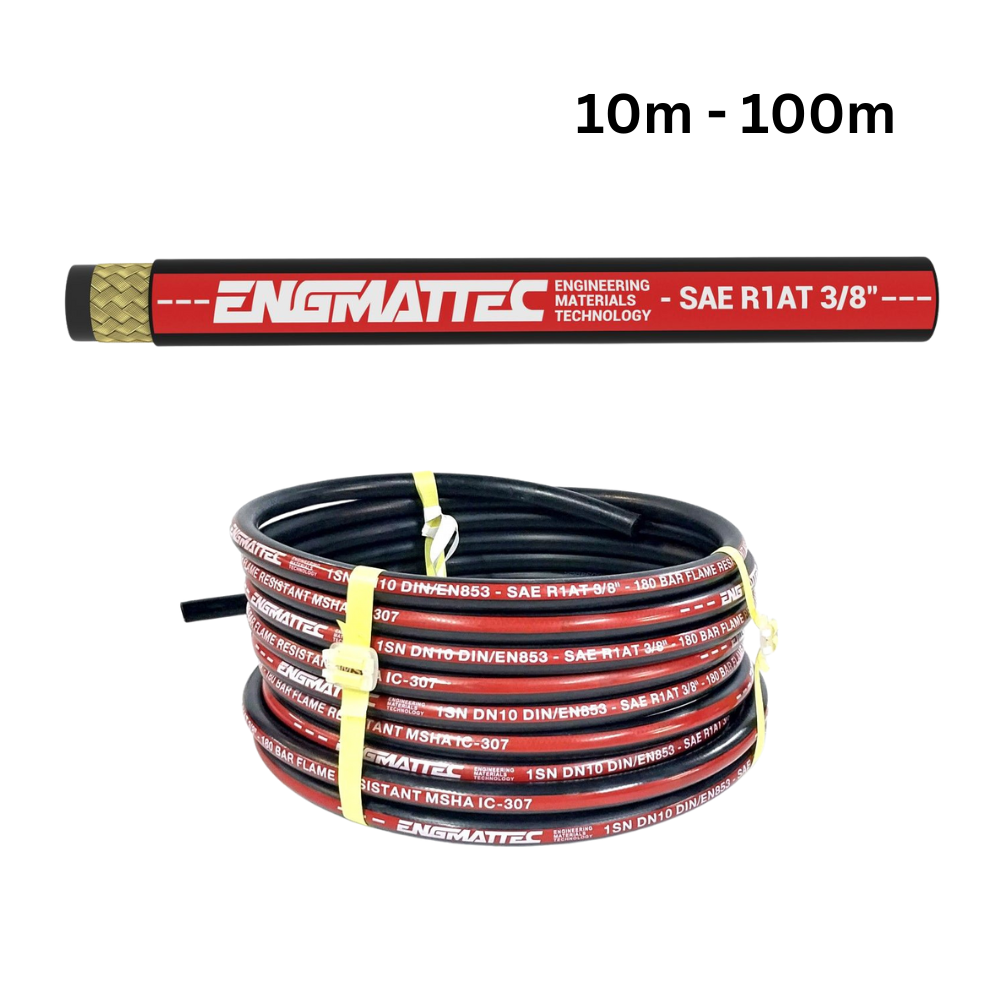

SAE 100R1 - One Wire Hydraulic hose, 3/8" internal bore - 2,610 psi working pressure Available in 10, 20 ,50 and 100 metre coils.

10, 20, 50, and 100 metre coils of super flexible smooth cover 3/8 inch Inside diameter hydraulic hose is made to meet or exceed SAE (Society Of Automotive Engineers) 100 R1 AT 06 Specifications.

SAE 100R1 – 06 NON SKIVE HOSE (One Wire)

Construction
Synthetic rubber inner tube with one layer of braided high tensile steel wire reinforcement,
an oil, Ozone, weather, and abrasion-resistant smooth synthetic rubber outer cover.

Application
High-pressure service with petroleum base hydraulic fluids,
Water, Air, Water-glycol, water-oil, fire-resistant hydraulic fluids,
hot oil, grease, diesel fuel, lubricants, crude, and fuel oils.
For compressed air applications above 100 psi, the outer cover should be pin pricked.

Specifications

Working Pressure: 2600 PSI (180 bar)
Burst Pressure: 10400 PSI (Minimum) (720 bar)
Range of Temperature -40⁰C to + 120⁰C
Minimum Bend Radius 125mm
Weight 0.34 KG/M

Please note for lengths greater than 20m one or more cuts may be used to make up the full length, please let us know if you require a continuous length and we will do our best to accommodate

Please send us a message for more information.
Email: email us for more information

Phone: 07 5563 1982 or 1300 1 HOSES

Hours: 8 am to 5 pm Monday - Friday, excluding public holidays
If you have any questions please don’t hesitate to contact us

Best regards,
Hydraulic.Online
Improper Selection, Installation, Implementation, And/Or Operation By Anyone Other Than Persons With Appropriate Technical And Mechanical Training Can Result In Damage To Equipment Or Property, Serious Personal Injury, Or Death. Proper Precautions And Safety Procedures Should Be Implemented Prior To The Installation And Operation Of Equipment.
