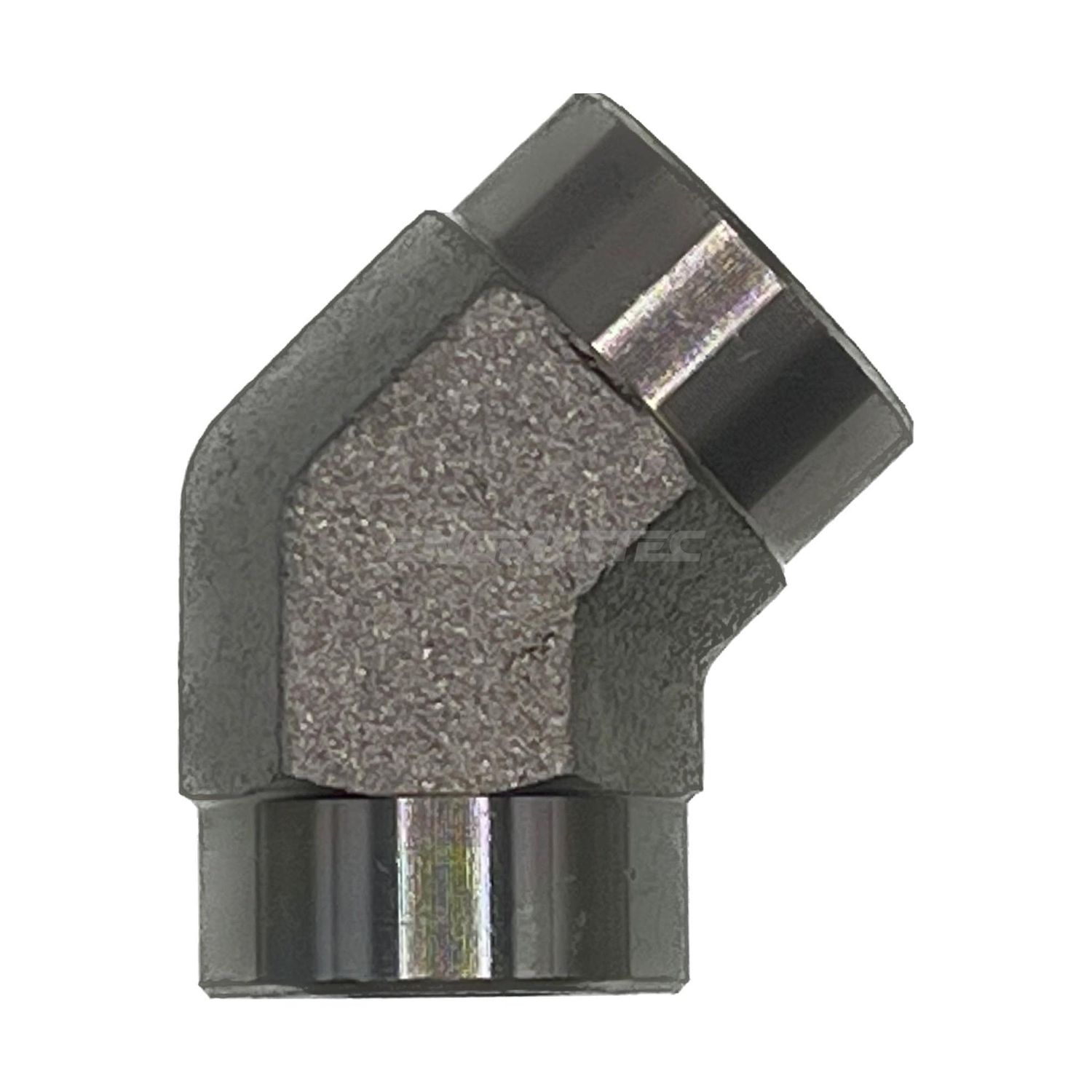

BSP Tapered Female x BSP Tapered Female 45° Compact Elbow

An equal female-to-female 45° elbow – the piece you use to change direction between two male-ended lines or to turn a run off a port adaptor. Both ends are BSP tapered female, so it joins into standard BSPT plumbing found right across Aussie-built tippers, truck bodies, Kanga and Dingo loaders, Merlo, Manitou, JCB and general farm machinery.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• BSP Tapered Female – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself.
• BSP Tapered Female – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself.

How to Choose

• Both ends are the same nominal size on an equal elbow – check the size you need against the chart.
• Female ends accept BSPT male fittings, bulkheads and male-ended tails.
• Compact body where a long-radius bend will not clear.

Where You’ll Find It

• BSP Tapered Female – Female side of local pipework, adaptor blocks and gauge manifolds.

Cross-Reference

• BSP Tapered Female – BSPT to ISO 7 / BS 21, written Rc for female.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Technicians Advice

Both ends are tapered, so both want sealant – and both are easy to overdo. BSPT pulls up tight as the taper wedges, and a female casting is the part that splits if you keep going. Wind the tape with the thread, two threads back from the leading edge, and stop at the point where it goes solid rather than chasing another quarter turn. If it weeps, back it off and re-tape rather than nipping it harder.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	S1	Material	Finish
BTF-BTF-45C-0202	1/8" BSPT	1/8" BSPT	14mm	Mild steel	Plated finish
BTF-BTF-45C-0404	1/4" BSPT	1/4" BSPT	19mm	Mild steel	Plated finish
BTF-BTF-45C-0606	3/8" BSPT	3/8" BSPT	22mm	Mild steel	Plated finish
BTF-BTF-45C-0808	1/2" BSPT	1/2" BSPT	27mm	Mild steel	Plated finish
BTF-BTF-45C-1212	3/4" BSPT	3/4" BSPT	33mm	Mild steel	Plated finish
BTF-BTF-45C-1616	1" BSPT	1" BSPT	41mm	Mild steel	Plated finish

Key: S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
