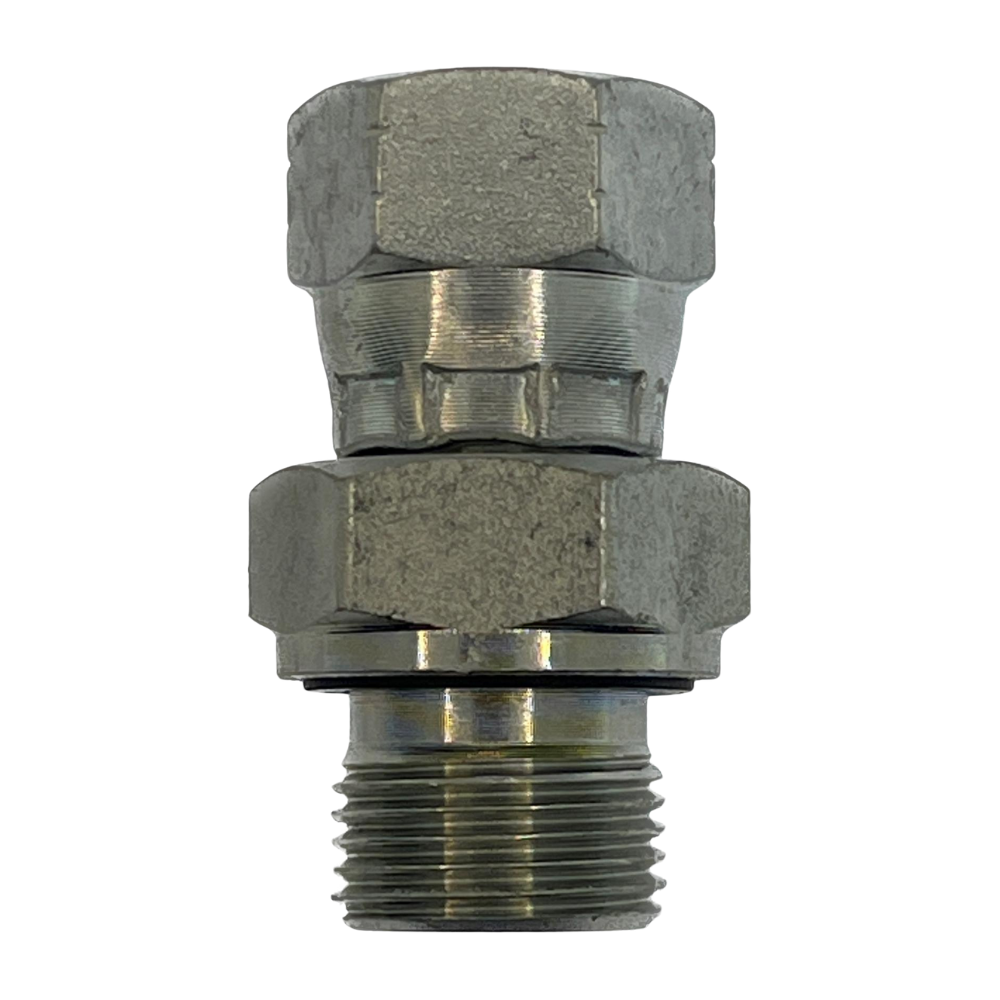

BSP Parallel Male x JIC 37° Swivel Female Straight Adaptor

BSP parallel male one end, JIC 37° swivel female the other. Puts a JIC hose onto a BSPP port, which is one of the most common conversions on a mixed Australian fleet.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Parallel Male – BSPP to ISO 228. It seals on a bonded washer against the port face or on a 60° cone, never on the thread itself.
• JIC 37° Swivel Female – SAE J514 37° flare. It seals on the 37° cone seat and swivels, so the hose is never wound up during assembly.

How to Choose

• The JIC female seals metal to metal on the 37° cone and swivels, so no tape and no sealant on that end.
• The BSPP male needs a bonded washer or a cone seat in the port.
• Watch for 45° flare in the same machine. A 45° male pulled into a 37° female will hold on test then fret out.

Technicians Advice

Wipe the 37° cone before you pull the joint together. A JIC nipped up with grit on the seat leaves a witness ring, and once that ring is there it will seep every time the machine warms up.

Where You’ll Find It

• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.
• JIC 37° Swivel Female – Hose ends on imported machinery, where the swivel lets the assembly be fitted without winding up the hose.

Cross-Reference

• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.
• JIC 37° Swivel Female – SAE J514 / ISO 8434-2 37° flare. Parker series Triple-Lok.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H	H1	Material	Finish

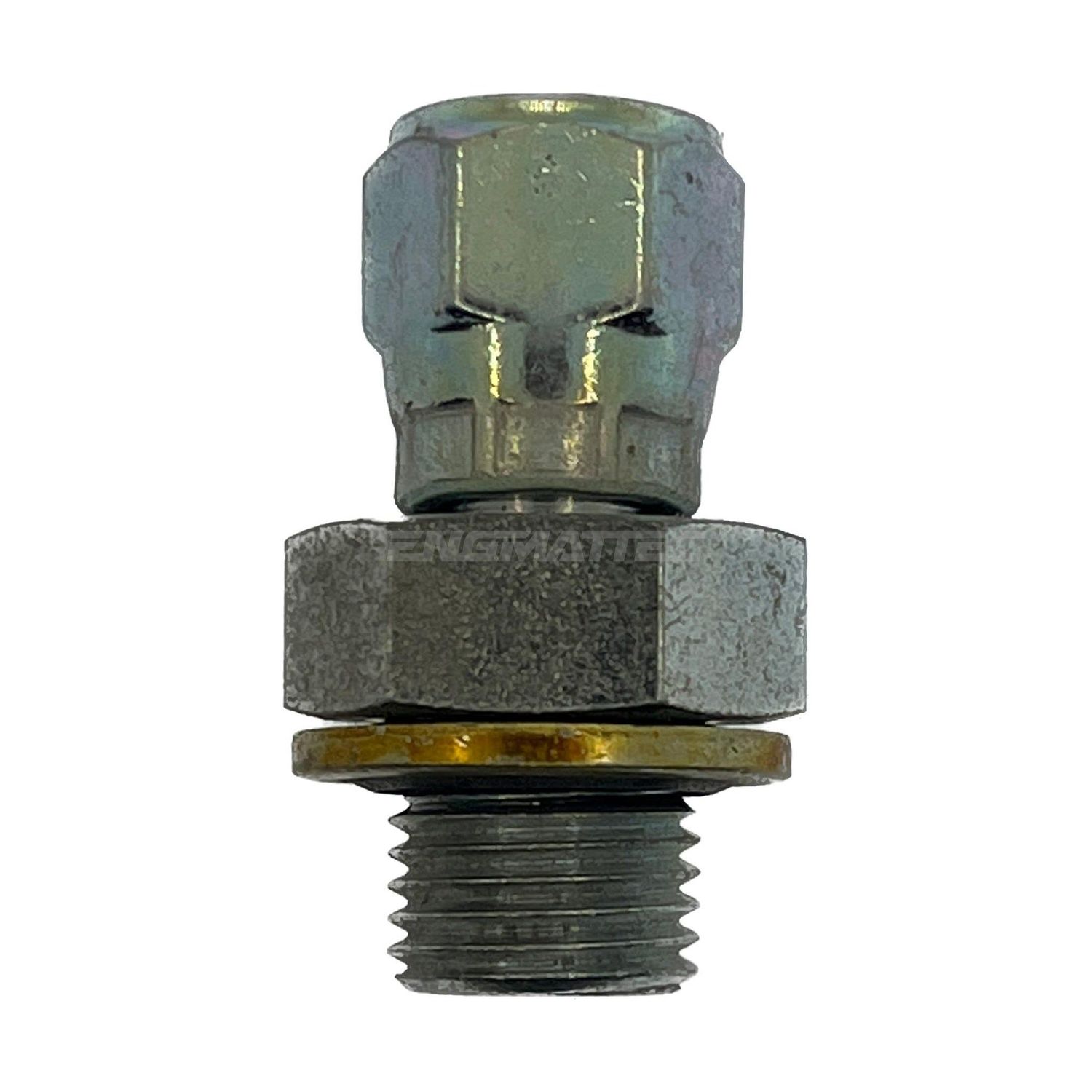

BPM-JIF-0207	1/8" BSPP	7/16" JIC	28mm	14.3mm	19mm	Mild steel	Plated finish
BPM-JIF-0407	1/4" BSPP	7/16" JIC	28mm	14.3mm	19mm	Mild steel	Plated finish
BPM-JIF-0409	1/4" BSPP	9/16" JIC	31mm	17.5mm	19mm	Mild steel	Plated finish
BPM-JIF-0412	1/4" BSPP	3/4" JIC	33mm	22.2mm	22mm	Mild steel	Plated finish
BPM-JIF-0607	3/8" BSPP	7/16" JIC	28mm	14.3mm	22mm	Mild steel	Plated finish
BPM-JIF-0609	3/8" BSPP	9/16" JIC	32mm	17.5mm	22mm	Mild steel	Plated finish
BPM-JIF-0612	3/8" BSPP	3/4" JIC	33mm	22.2mm	22mm	Mild steel	Plated finish
BPM-JIF-0614	3/8" BSPP	7/8" JIC	34mm	25.4mm	22mm	Mild steel	Plated finish
BPM-JIF-0809	1/2" BSPP	9/16" JIC	36mm	17.5mm	27mm	Mild steel	Plated finish
BPM-JIF-0812	1/2" BSPP	3/4" JIC	37mm	22.2mm	27mm	Mild steel	Plated finish
BPM-JIF-0814	1/2" BSPP	7/8" JIC	38mm	25.4mm	27mm	Mild steel	Plated finish
BPM-JIF-0817	1/2" BSPP	1.1/16" JIC	39mm	32mm	32mm	Mild steel	Plated finish
BPM-JIF-1214	3/4" BSPP	7/8" JIC	40mm	25.4mm	32mm	Mild steel	Plated finish
BPM-JIF-1217	3/4" BSPP	1.1/16" JIC	41mm	32mm	32mm	Mild steel	Plated finish
BPM-JIF-1221	3/4" BSPP	1.5/16" JIC	47mm	38mm	38mm	Mild steel	Plated finish
BPM-JIF-1617	1" BSPP	1.1/16" JIC	44mm	32mm	41mm	Mild steel	Plated finish
BPM-JIF-1621	1" BSPP	1.5/16" JIC	47mm	38mm	41mm	Mild steel	Plated finish
BPM-JIF-2021	1.1/4" BSPP	1.5/16" JIC	47mm	38mm	50mm	Mild steel	Plated finish
BPM-JIF-2026	1.1/4" BSPP	1.5/8" JIC	50mm	50mm	50mm	Mild steel	Plated finish
BPM-JIF-2430	1.1/2" BSPP	1.7/8" JIC	60mm	55mm	55mm	Mild steel	Plated finish

Key: L overall length, H centre to face, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
