Pair 10,000 psi High Pressure Jacking Porta Power Couplers 3/8 NPT
SKU JC06SET
AU$47.32
🔥 EOFY SALE!
was AU$59.95 Save 21%
Black Rubber Dust Caps
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Pair 10,000 psi High Pressure Jacking Porta Power Couplers 3/8 NPT
Product Details
Brand: ENGMATTEC
Weight: 0.65 kg

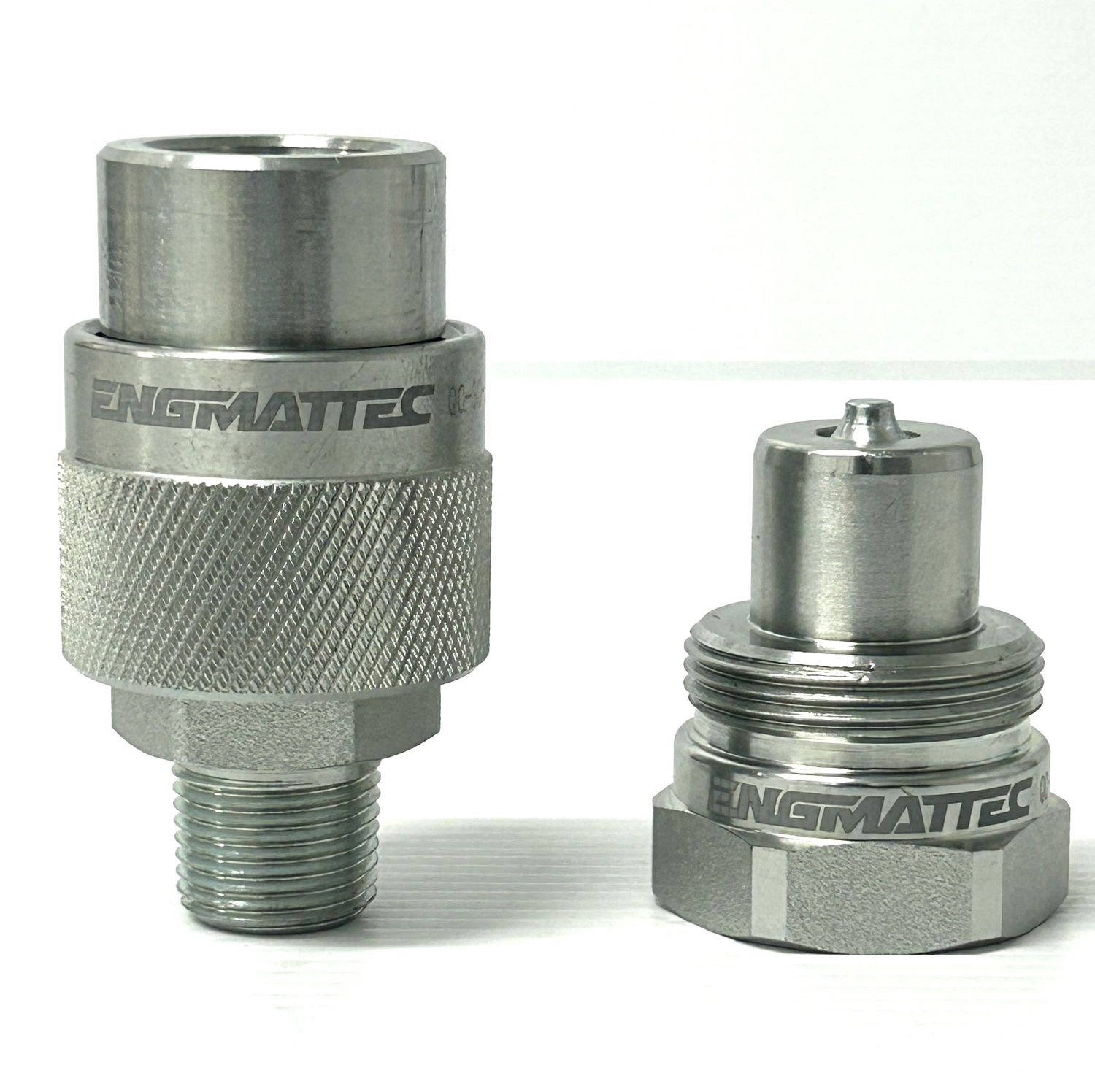

Pair of 10,000 psi (680 bar) high-pressure screw-together hydraulic couplers designed for manual, air-over hydraulic and electric pumps used on Lifting, Jacking, Pulling, Punching and Bending tools.
- The Female Coupler has a 3/8 inch NPT male thread.
- and the Male Coupler has a 3/8 inch NPT Female Thread.
- Optional Black Rubber Dust Caps are also available at an additional charge to protect the threads and prevent contamination from dust, mud, sand, and water.
- These couplers will flow up to 12 litres per minute.
These couplers and not designed to be connected under pressure.
But can be safely disconnected under pressure.
Manufactured from High Alloy Steel and Zinc Plated for durability and Corrosion resistance.
The Series employs a threaded sleeve connection mechanism that screws and connects with the matching threads on the male coupler.
The two halves are manually threaded together for a leak-free high-pressure connection.
Spring Loaded Hardened Alloy Steel valves are used for leak prevention when disconnected.
The seals are made from a polyurethane O Ring with a nylon backing ring which resists high-pressure extrusion.
Compatible and interchangeable with PARKER 3000 Series and FASTER PVVM Series.
